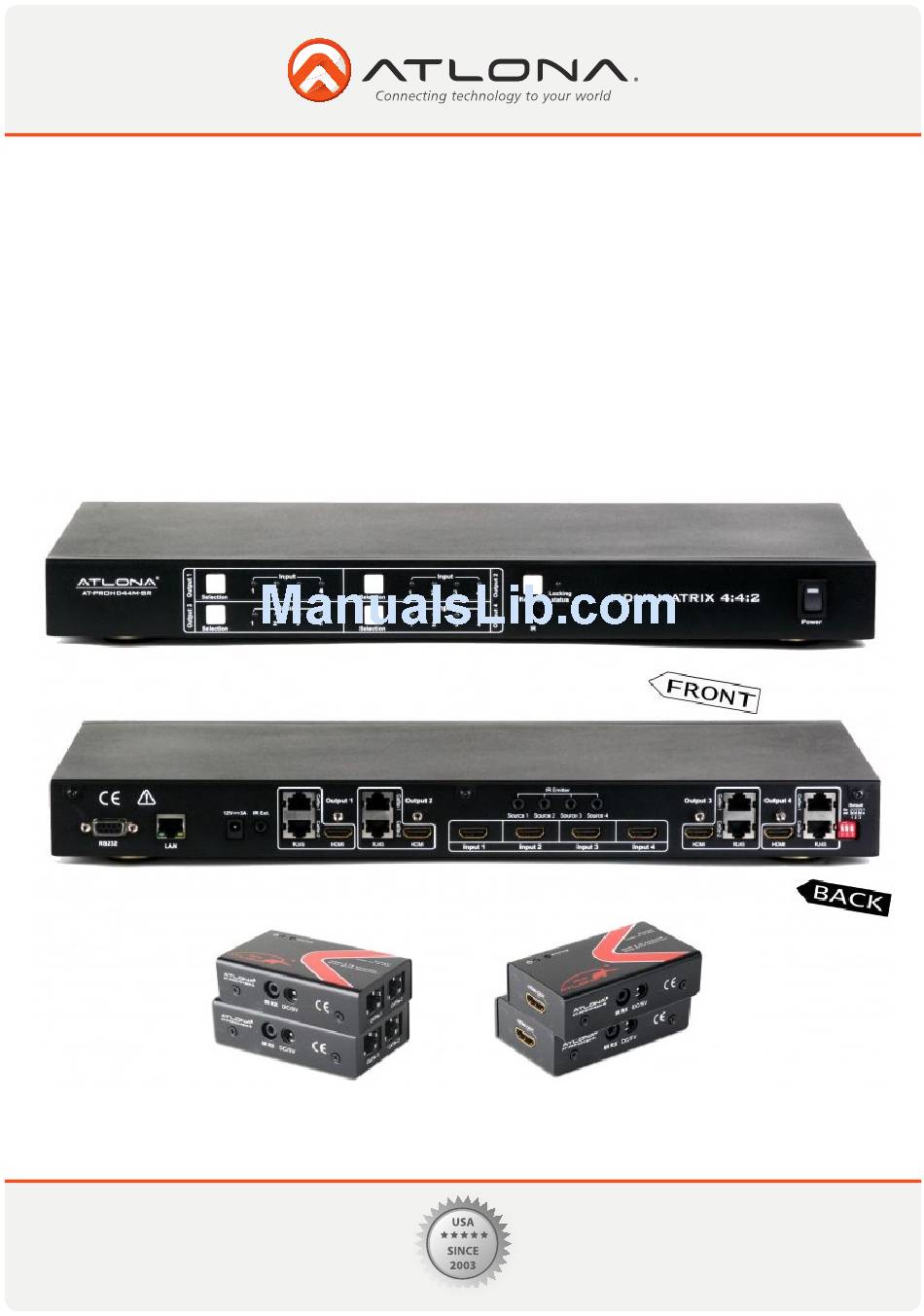

- Page 1 User Manual 4x4 HDMI matrix Switch with 4 x CAT5 Receivers included AT-PROHD44M-SR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. IR Remote Control ..........8 7.1. RS232 Control ..........8 7.2. RS232 Cable Wiring ..........8 8. F.A.Q........... 10 9. Safety Information ..........11 10. Warranty ..........12 11. Atlona Product Registration ..........13 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-PROHD44M-SR is a 4x4 HDMI Matrix Switcher over Twisted Pair designed to work as a switcher for multiple Audio/Video sources and displays. The Atlona unit is capable of switching HDMI signals between four sources (such as: Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) and eight displays. -
Page 4: Features
• Each CAT5/6/7 output can go up to 165ft @ 1080p on CAT5/6 cables and up to 250ft @ 1080p on the CAT7 cable (tested with Tyco wire). If more distance is required, Atlona offers CAT5/6/7 repeater (AT-PROHD-RP) unit which can double the distance and allow chain up to 6 units. -
Page 5: Panel Description
9. DIP Switch Selection Note: The TCP/IP port has to be connected to the computer via direct Crosswire CAT5/6/7 wire while if con- nected to the router it needs to be connected though Straight wire. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -

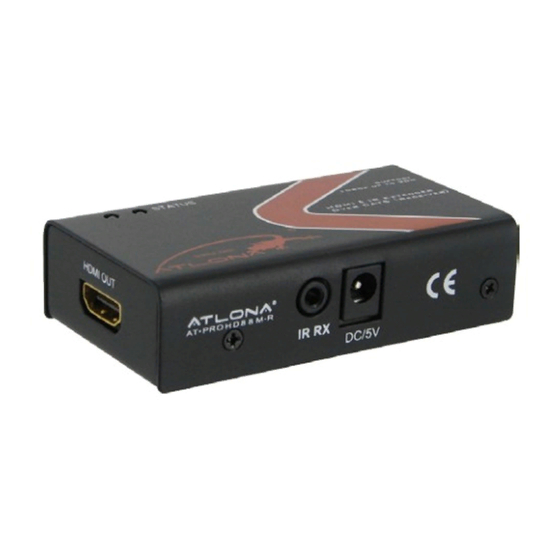

Page 6: Hdmi Receiver
IR signal of RJ45 on this output will choose the corresponding “IR” port to send the signal out. For example, OUTPUT1 chooses INPUT3, then the call-back IR signal of RJ45 on OUTPUT1 will choose “IR 3” to send the signal out. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 7 Up to 1080P with Stereo Audio (DIP#3) Up to 1080P with 5.1 Audio (DIP#4) Up to 1080P with 7.1 Audio (DIP#5) Up to 1080i with Stereo Audio (DIP#6) Note: 1 – ON and 0 – OFF Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 8 DIP#1: Auto EDID Management (ADM) is a smart function which will allow users to have matrix switch figure out the best and most appropriate EDID. The way it works: Atlona 8x8 matrix acquires EDID from all the outputs and after processing it, chooses the EDID which will work on all the outputs.
-
Page 9: Ir Remote Control
IR REMOTE CONTROL The AT-PROHD44M-SR comes with 16 button IR remote control, which could be used to control the switcher when pointing at it or controlling the switcher from a remote location by pointing the remote control to the IR Eye connected to the HDMI receiver. -
Page 10: Rs232 Cable Wiring
CONNECTION AND OPERATION RS232 Cable Wiring: AT-PROHD44M-SR Controller Definition Definition Note: ‘ ’ is carriage return. OUTPUT COMMAND ACTION < cir 57 Output 1 select Input previous > cir 41 Output 1 select Input next cir 09 Output 1 select Input 1... -
Page 11: F.a.q
6. Question: I have a universal remote control and I would like to program this switcher into it. Answer: Under the download page on Atlona website you would be able to find IR codes in HEX format which you use to program your remote control or you can also learn the commands. -
Page 12: Safety Information
It may also cause damage to your AT-PROHD44M-SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 14: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
