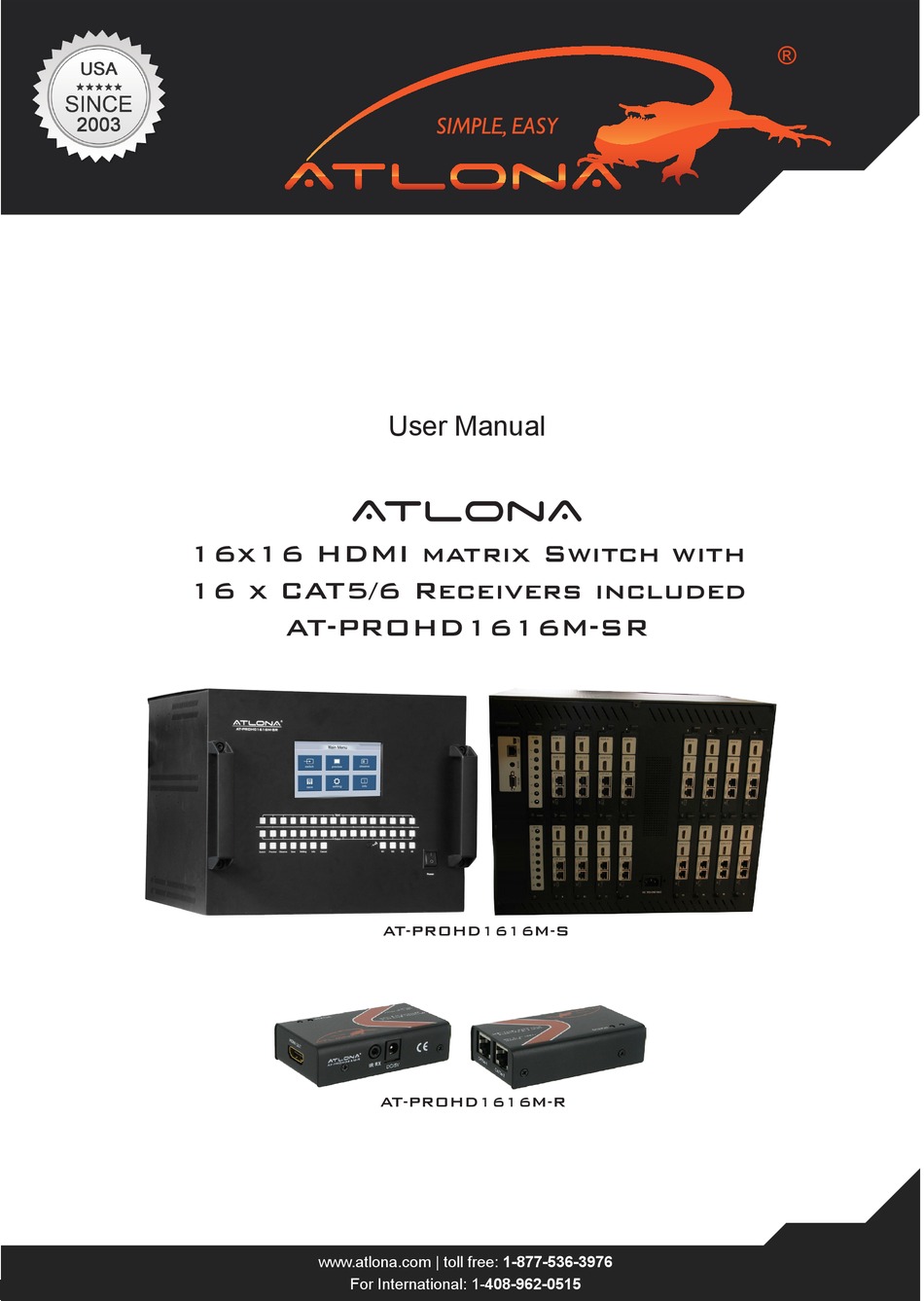

- Page 1 User Manual AtlonA 16x16 HDMI matrix Switch with 16 x CAT5/6 Receivers included AT-PROHD1616M-SR AT-PROHD1616M-S AT-PROHD1616M-R www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
7.7. Info Menu ..........8. IR Remote Control ..........8.1. RS232 Control ..........8.2. RS232 Cable Wiring ..........9. F.A.Q........... 10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

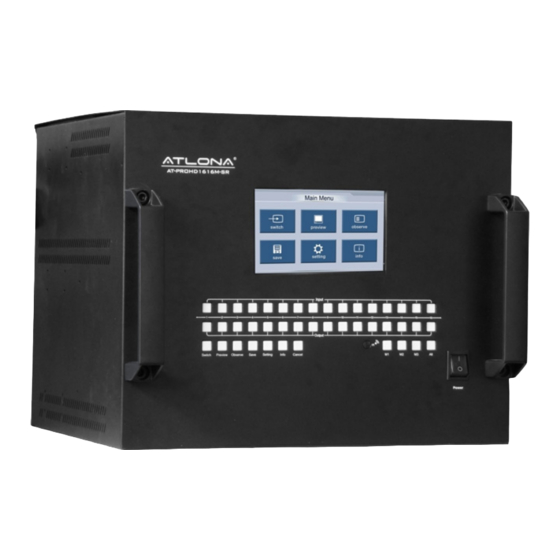

Atlona Technologies’ AT-PROHD1616M-SR is a 16x16 HDMI Matrix Switcher over Twisted Pair designed to work as a switcher for multiple Audio/Video sources and displays. The Atlona unit is capable of switching HDMI signals between sixteen sources (such as: BluRay players, HD set top boxes, game systems, etc.) and sixteen displays. -
Page 4: Specification
17.32” W x 13.78” H x 15.35” D – 6U Main Unit Weight/Receiver 44.1LB/0.3LB (20kg)/(0.1kg) PANEL DESCRIPTION Main Unit 1. Front Panel Touch Panel Function Panel Buttons Keypad IR Receiver Power Switch www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
RJ45 inputs – please be careful when connecting RJ45 # 1 and # 2 inputs. They absolutely have to match the outputs on the switch. Output # 1 should be connected to Input # 1 and Output # 2 should be connected to Inputs # 2. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Connection And Operation
1) Connect the HDMI input sources (such as BluRay, PS3, AppleTV, DirecTV etc) into the inputs on AT-PROHD1616M-SR. 2) Connect the HDMI outputs from AT-PROHD1616M-SR (such as LCD, Plasma, LED, Projector, Monitor) 3) Power on the input source you want to show. (Keep the unused input power OFF, otherwise it may interfere with the normal display.) -
Page 7: Main Menu
Step B.1: Select a memory, and press “OK”. A - Stands for All and M – Stand for Memory; C - Stand for Clear 7.3. Preview Menu Step: Select an Input port, and press “OK” www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 8: Observe Menu
7.6.1. EDID menu There are 6 mode provided. When select a different mode, and press “OK”, the following warning box will pop up: The mode selected will be effective after next power-on. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 9 Atlona Switcher has a few built-in EDID modes; this mode is for resolutions up to 1080P with Stereo Au¬dio. Mode # 4 Atlona Switcher has a few built-in EDID modes; this mode is for resolutions up to 1080P with 5.1 Digi¬tal Au- dio.
-
Page 10: Long Cable Mode
7.6.3. IR Mode The Atlona AT-PROHD1616M-SR is featured with an ability of transferring IR signal from a remote location (for example Bedroom) to a main switch, which allows users to control the switcher and the devices next to it via IR. -
Page 11: Rst Mode
Press “RST”, all of the settings will be reset to original manufacture default. 7.7. Info Menu Press “MS”-----View the current status of matrix switcher Press “M1, 2, 3”-----View the pre-existing Memory #1, 2, 3 IR REMOTE CONTROL www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Rs232 Control
The AT-PROHD1616M-SR comes with an IR remote control, which could be used to control the switcher when pointing at it or controlling the switcher from a remote location by pointing the remote control to the IR Eye connected to the HDMI receiver. -
Page 13: Rs232 Cable Wiring
Question: I have a universal remote control and I would like to program this switcher into it. Answer: Under the download page on Atlona website you would be able to find IR codes in HEX format which you use to program your remote control or you can also learn the commands. -
Page 14: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 15: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 16: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
