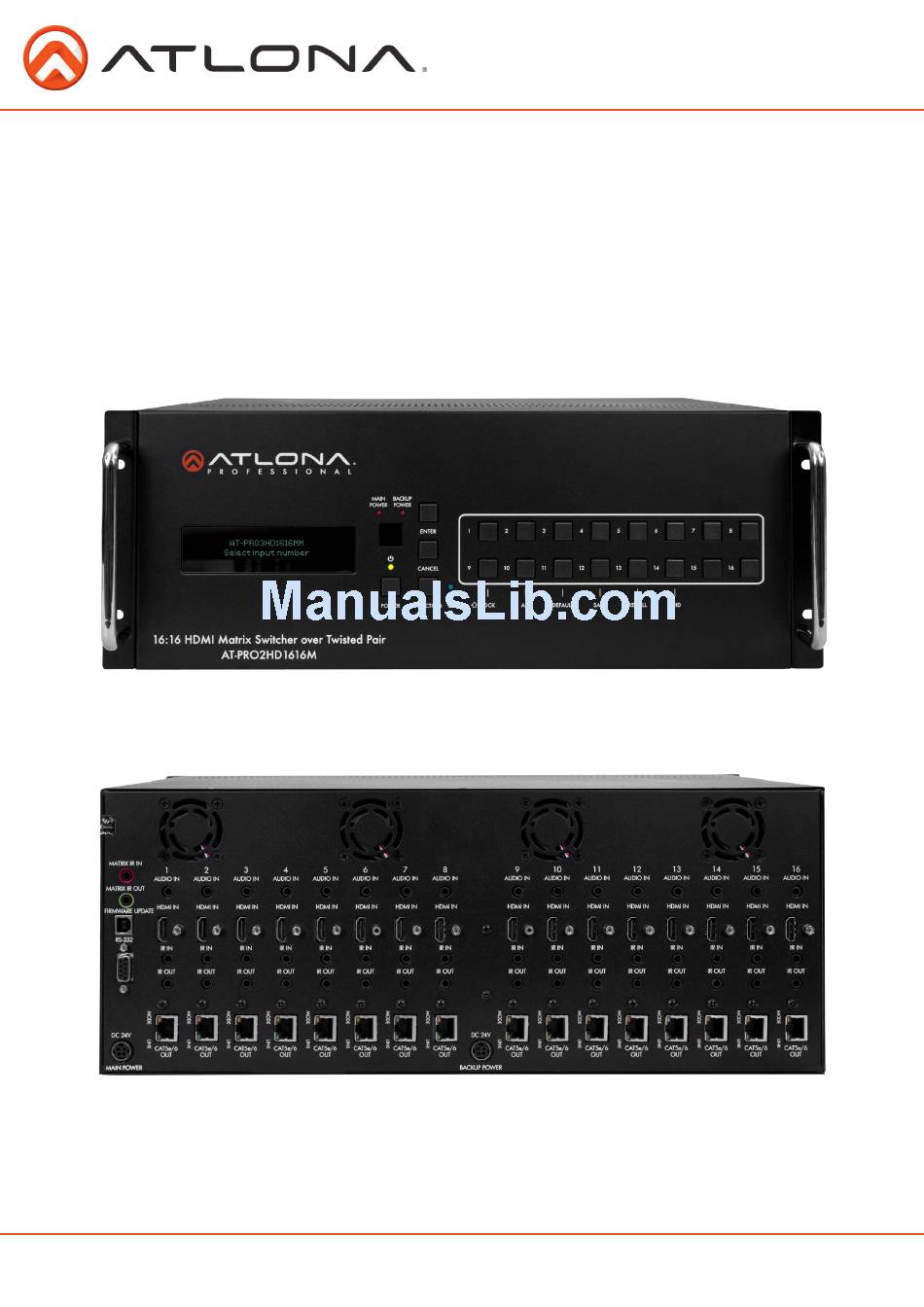

Page 1: User Manual

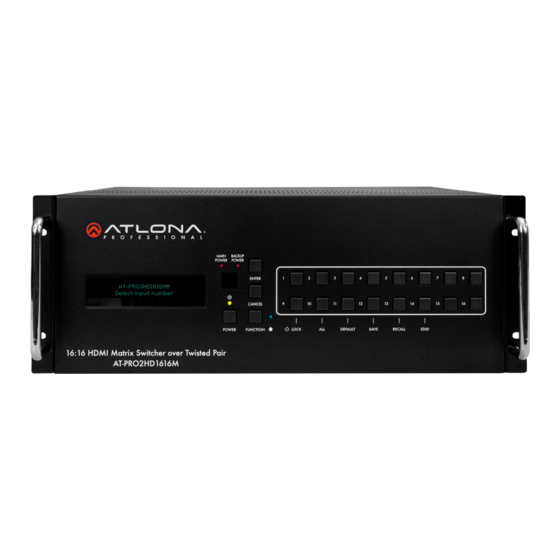

Atlona HDMI to HDBaseT Matrix Switcher AT-PRO2HD88M & AT-PRO2HD1616M (pictured below) User Manual Revision C: Firmware 1.1.25 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
9. Specifications ................16-17 10. Resetting and Updating ................... 18 11. Safety Information ................... 19 12. Warranty ................20-21 13. Atlona Product Registration ................... 21 Revision C (3/22/13): Firmware Version 1.1.25 Internal EDID feature added Page 11 Toll free: 1-877-536-3976 atlona.com... -
Page 3: Introduction
Extend HDMI and DVI (with HDMI to DVI adapter ex. AT-14040) sources up to 328ft at 1080p or 1920x1200. The Atlona HDMI to HDBaseT matrix switcher allows for effortless control of up to 32 devices through IR remote control, RS-232, 3rd party IR controllers and the front panel. With stereo audio embedding combine stereo audio with DVI signals over category cable. -
Page 4: Panel Description
8. Cancel Button - Within the functions menu use to go back one screen or to the home screen. Note: You cannot power off or change functions unless you go to the home screen. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
10. Main Power - Use included 24V/6.25A DC adaptor to power the matrix switcher 11. Backup Power - Redundant power supply in case the main power supply fails. Includes a second 24V/6.25A DC adaptor. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
IR commands through a 3rd party controller and send it out through the CAT5e/6 port to control the displays in any zone. Note: Be sure to use a mono to mono (2 conductor) 3.5mm IR extender from the 3rd party controller to the AT-PRO2HD. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Ir Remote Control
DC 5V CAT5/6 IN CAT5/6 IN LINK LINK HDMI OUT HDMI OUT RS232 OUT IR IN IR OUT RS232 OUT IR IN IR OUT Receiver Receiver Module Module Video Display Video Display Remote Remote Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Matrix I/O Control
Select input number ---> ---> ---> ---> ---> Select Input Number to save to all outputs Feedback = Input # to all outputs through ---> ---> ---> ”Input # saved to all” Press enter to confirm Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: I/O Route Memory
EDID or EDID copy and load should resolve these issues. The CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 MAIN POWER BACKUP POWER PRO2HD can copy up to 8 EDIDs to memory. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 10 Use EDID memory # + enter ---> ---> through ---> EDID memory 1-8 (#) _ _ _ Atlona EDID - ATL Pioneer EDID - PIO Feedback - Toshiba EDID - TSB ---> ---> ”Save memory # EDID to input #”...
- Page 11 Ex. EDIDMset1 save3 - sets input 1 to the EDID memory 3 EDIDMSetX intZ EDIDMSetX intZ Sets the EDID of an input to one of the internal EDIDs Ex. EDIDMset3 int6 - sets input 3 to the internal EDID - 1080p 3D Dolby Digital 5.1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 12: Matrix Settings
Console: X X X X 9600 8 ODD 0 Matrix Baud Rate Press 5 to cycle through AT-PRO2HDXXM ---> ---> ---> the baud rates of each Port 1: X X X X output port. Output Baud Rate Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 13: Rs-232
Sets matrix back to the default settings Each command is terminated with a carriage return. Each Feedback is terminated with a carriage return and line feed. Note: If the command fails or is incorrect the feedback should be “Command FAILED” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 14: Set Up
Command for Matrix baud rate CSpara[baudrate,data-length,parity,stop-bit] (data, parity, and stop for matrix must be 8,0,1) For example if you wish to change the baud rate to 38400 the command would look like this: CSpara[38400,8,0,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 15 For example if you wish to change the baud rate to 19200, data length 8, ODD parity, and 1 stop-bit on the receiver in zone 6 to 19200 the command would look like this: RS232para6[19200,8,1,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 16: Remote Control
Operating 0°C to 40°C 32°F to 104°F Storage -20°C to 60°C -4°F to 140°F Humidity 20 to 90% non-condensing Power Consumption-88M Consumption-1616M Idle Consumption-88M Idle Consumption-1616M 2.7W Supply Input: AC100~240V 50/60Hz Output: DC 24V/6.25A Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 17 RS-232, IR, 3D, 1080p, 1920x1200, Dolby TrueHD, DTS-HD Master Audio AUDIO IN Audio Formats PCM 2Ch IR IN Compatibility Mono to mono IR cables or Atlona IR receiver IR OUT Compatibility Atlona IR emitter only USB B Firmware updating Toll free: 1-877-536-3976 atlona.com...
-
Page 18: Resetting And Updating
Updating and Resetting Updating firmware At times there will be new firmware to update, fix, or change functionality of products. Atlona has made this as easy as possible for updating on the job by simply downloading from Atlona.com and uploading the file onto the matrix. -
Page 19: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 20 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 21: Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
