Summary of Contents for Atlona AT-PRO3HD66M

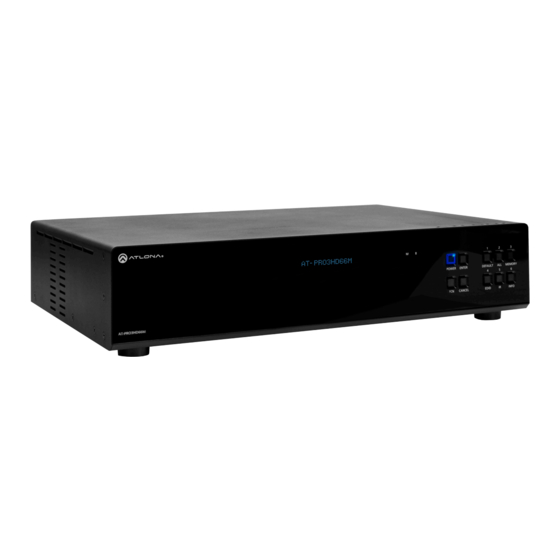

- Page 1 Atlona HDMI to HDBaseT 6 by 6 Matrix Switcher AT-PRO3HD66M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..................12 7. RS-232 • Connection ..................13 • Set Up ..................13 8. TCP/IP • RS-232 TCP/IP Set Up ..................14 • LAN TCP/IP Set Up .................14-15 • WebGUI .................15-22 9. TCP/IP and RS-232 Control • Commands ..................23 • TCP/IP Commands ..................23-24 • Baud Rate ..................24-25 10. Remote Control ..................25 11. Resetting and Updating ..................26 12. Specifications ..................27 13. Safety Information ..................28 14. Warranty ..................29 15. Atlona Product Registration ..................30 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Compatible with PCM 2Channel, Dolby 2.0, Dolby Digital 5.1, and DTS 5.1. • Optional redundant power supply (AT-PW24V6.25A) in case the main power supply fails. • HDCP compliant Before You Start • Make sure when connecting a category cable a 568B termination method is used. • Make sure the matrix is connected to a component surge suppressor with line conditioning. Note: Atlona’s warranty does not cover damage due to electrical disturbances. A component surge suppressor with line conditioning is highly suggested, especially in areas with electrical storms. • Be sure you’re using a mono to mono (2 conductor) 3.5mm IR cable when using IR output control from 3rd party control boxes, stereo (3 conductor) 3.5mm cables are not compatible. Toll free: 1-877-536-3976 atlona.com... -
Page 4: Panel Descriptions
Panel Description Front Panel POWER ENTER DEFAULT MEMORY CANCEL EDID INFO AT-PRO3HD66M AT-PRO3HD66M IR IN IR IN IR IN IR IN IR IN IR IN 1. Power Button - Cycles the power between On (blue backlight) or Standby (red backlight) mode. RS-232 MATRIX IN MATRIX OUT MAIN CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 IR OUT... -
Page 5: Back Panel
POWER ENTER DEFAULT MEMORY Back Panel CANCEL EDID INFO AT-PRO3HD66M AT-PRO3HD66M IR IN IR IN IR IN IR IN IR IN IR IN RS-232 MATRIX IN MATRIX OUT MAIN CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 CAT5e/6/7 IR OUT IR OUT IR OUT... -
Page 6: Connection And Installation
Connection and Installation 3rd Party Control box Set Up With the feature of the IR input zone ports the AT-PRO3HD66M has the ability to receive IR commands from a 3rd party controller and send it out through the CAT5e/6/7 port to control the displays in any zone. 3rd Party Controller ZIGBEE 12V DC FACTORY HDMI COMPONENT WIFI 1 DIGITAL eSATA ETHERNET RESTORE COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT... -
Page 7: Ir Remote Control
Note: IR signal is routed through the HDBaseT zone. Only the IR out of the corresponding zone will pass control signal when using a 3rd party IR controller Blu-ray Player POWER ENTER DEFAULT MEMORY IR Emitter CANCEL EDID INFO AT-PRO3HD66M AT-PRO3HD66M IR IN IR IN IR IN IR IN IR IN IR IN RS-232 MATRIX IN MATRIX OUT... -
Page 8: Matrix I/O Control
Matrix Front Panel Functions The AT-PRO3HD66M’s front panel has 3 functions: I/O control, EDID, and matrix settings. The following sections go over step by step setup & control. I/O Control To set an input to an output (I.E. Input 1 to output 2) input selection home screen AT-PRO3HD66M Select output number ---> through ---> ---> ---> Select Input Number Press enter to confirm output selection Feedback =”Input # saved to through --->... -
Page 9: I/O Route Memory
I/O Route Memory Once inputs and outputs have been set they can be saved to memory and recalled later. Up to 6 individual input/output routes can be saved. The route will remain in memory until a new route has example route been saved to that memory number or the matrix has been factory reset. O: 1 2 3 4 5 6 I : 4 6 1 3 2 6 To save an I/O route to memory home screen AT-PRO3HD66M 1 Save in/out route Select Function Option ---> ---> ---> ---> ---> Select Input Number 2 Select memory route memory selection Feedback = Save to memory (1-6) # ---> ---> ---> --->... - Page 10 Step 1: copy an EDID Before an EDID can be loaded to an input, it must first be copied to the matrix’s memory. Each display’s EDID can be saved individually to one of the matrix’s six preset EDID memories. home screen 1 To copy up to 6 EDIDs AT-PRO3HD66M Select Function Option ---> ---> ---> ---> ---> 2 To choose input EDID Select Input Number output selection Copy from output # Copy from output # ---> through ---> ---> ---> Save to Memory (1-6) # Save to Memory (1-6) # memory selection Feedback= ---> ---> ”Saved port # EDID to through through Memory # [Failed/Passed]” Step 2: load a copied EDID onto an input Once EDIDs have been copied to memory they can be loaded to a specific input. Note: (refer to the diagram on page 9) Using the EDID of output 3 with input 1 will enable 1080p, 3D, and Dolby TrueHD to pass. Output 2 will receive no audio or video and output 1 will receive no...
-
Page 11: Edid
EDID 6: 1080P 3D Dolby Digital 5.1** ATL 1080P 3D DD EDID 7: 720P 2CH audio ATL 720P 2CH EDID 8: 720P Dolby Digital 5.1** ATL 720P DD EDID 9: 1280x800 RGB 2CH audio ATL 1280x800 RGB 2CH EDID 10: 1366x768 RGB 2CH audio ATL 1366x768 RGB 2CH EDID 11: 1080P DVI*** ATL 1080P DVI EDID 12: 1280x800 DVI*** ATL 1280x800 RGB DVI * Recommended EDID for use of an AVR ** Recommended EDID for use of the S/PDIF audio de-embedding *** Recommended EDID for use of DVI projectors home screen AT-PRO3HD66M 1 To copy up to 6 EDIDs Select Function Option ---> ---> ---> ---> ---> Select Input Number 2 To choose input EDID input selection Input # Input # Press Enter ---> ---> ---> ---> through Select an input port... -
Page 12: Matrix Status
Matrix Status When installing or troubleshooting it’s important to verify settings, or be able to come back to a project and see how it was set up. The AT-PRO3HD66M matrix settings are viewable through the front panel display. View current I/O settings, firmware version, FPGA version, IP, and the baud rates of not just the matrix but extenders as well. View current I/O settings home screen AT-PRO3HD66M O 1 2 3 4 5 6 ---> ---> Select Input Number I x x x x x x View Firmware/Baud Rate/FPGA settings home screen AT-PRO3HD66M Select Function Option ---> ---> ---> ---> Select Input Number AT-PRO3HD66M AT-PRO3HD66M ---> ---> FW Ver: 0.X.XX FPGA 1 Ver: 0.0.XX FPGA Version Press 2 to cycle through AT-PRO3HD66M IP, Netmask, Gateway, ---> ---> ---> IP Addr: XXX.XXX.XXX.XXX... -
Page 13: Rs-232
Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used Set Up To set up the RS-232 hyperterminal (if not using 3rd party software) use the following steps: 1. Connect the matrix to a PC using a 9pin to 9pin cable 2. Go to the Device manager folder (see picture A) 3. Find the Matrix COM port and right click with a mouse and select properties (see picture B) NOTE: If unsure which COM port is the matrix, unplug the 9pin cable and plug it back in. It will disappear and reappear on the COM port list. 4. Under the properties menu select the port settings tab and update the menu to the matrix default settings of: Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the matrix now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 14: Tcp/Ip
192.168.0.200 255.255.255.0 192.168.0.1 IP can be anything that system devices aren’t currently using. (200 is just an example) Step 5: (optional) Change the port using the command “IPPort 4400” followed by a carriage return 4400 is just an example. The port can be changed to what is needed/wanted The matrix is now ready to be used for TCP/IP control. The LAN cable may be connected now. LAN TCP/IP Set up (If RS-232 is not available) Step 1: Connect LAN to a computer Step 2: Right click the network icon at the bottom right side of screen and open network and sharing center on PC (see picture A) Step 3: Select internet type connection/local area connection (see picture B) Step 4: Select properties (see picture C) Step 4: Select IP V.4 and press properties (see picture D) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 15: Webgui
Step 5: Change IP to 192.168.1.2 and Subnet: 255.255.255.0 (see picture E) Step 6: Press apply Step 7: Close internet type connection and launch WebGUI Type the default IP (192.168.1.10) a web browser Log in: Username: root Password: Atlona Step 8: If desired, change the network address information Step 9: Go back to your network settings and return the IP V.4 to the original settings (see below) Step 10: Continue with WebGUI TCP/IP WebGUI Atlona has created an easy to use WebGUI for changing settings and controlling the matrix. To begin, type the IP address of the matrix into a web browser (as seen below) Important: If experiencing any stability issues, disable any anti-virus or firewall that may be interfering with network communication to the Matrix. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 16 A login screen will appear. For the first log in (and future admin changes) the username is “root” and password is “Atlona”. Note: The username cannot change, but the password can be changed (see page 19) The home screen will display the general software and firmware information. If the matrix is powered off the FPGA will not display (see above). Once the power is on it will display (see below). Note: When the matrix is turned off many fields within the WebGUI will not display information. Be sure the matrix is powered on for complete control. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 17 The network set up page will allow the IP information to be changed. When a change is made the screen will grey and the ability to save or cancel will display at the bottom (see below). Note: If DHCP is on, the IP cannot be configured. Note: Be sure to save all changes before moving to the next page Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 18 The config page under status/setting will allow the zone output and matrix baud rates to be changed, as well as turning power and the IR receiving window on / off. A grey the screen will display the save and cancel options when making changes. Remember to save all settings before moving on to the next page. Note: All like fields can be changed during one edit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 19 Adding, deleting, and updating users can also be done from the config page. User name changes can only be done by the admin. Admin user name is always “root” and default password is “Atlona”. Note: Only the admin password can be changed. The username will always remain “root” Note: Always remember to save settings before moving to the next page Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 20 The I/O page allows input and output routes to be changed easily by drop down menu. Output All will route one selected input to all the outputs. Note: All routes can be changed while in the grey edit screen. Remember to save after all changes have been made. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 21 For compatibility, EDID configuration has been added. Each input has a drop down selection for internal, default, and saved EDIDs. Note: When saving an EDID to memory through the WebGUI, the output will save to the corresponding memory. Ex. Output 2 will only save to Memory 2 Internal EDIDs (see page 11) provide 12 options for video and audio to ensure compatibility and reliability. Auto default mode will choose the highest common video resolution and audio format. Each saved EDID will save to memory and be noted as MM and the number of its output. **Clicking on the Display’s EDID link will provide a breakdown of the selected output’s EDID Note: MM#s in the picture above are examples of saved EDIDs Note: Remember to save after all changes to ensure complete compatibility. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 22 The HDCP page will display the output’s ability to pass HDCP or not. Several messages will appear under different circumstances: Supported - HDCP is supported by the display Not Supported - The display is unable to support HDCP Non-HDCP Source - A source that does not support HDCP No connection - If no source is selected, HDCP status cannot be determined Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 23: Commands
Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” TCP/IP Commands Command Feedback Description IPCFG IP Addr : x.x.x.x Displays IP address configuration Netmask : x.x.x.x Gateway : x.x.x.x IP Port: x.x.x IPTimeout XX IPTimeout XX Determines amount of seconds of inactivity before TCP/IP (Ex. IPTimout120) disconnects IPQuit IPQuit Logs out of TCP/IP IPAddUser TCP/IP username & password list: Will display a list of users - user password - user password - user password IPAddUser [X] [Y] TCP/IP user was added Add a user for TCP/IP control. X=User Y=Password Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 24: Baud Rate
TCP/IP Commands Cont. IPDelUser [X] TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP Ex. IPDHCP on IPDHCP on IPDHCP on Turns DHCP on IPDHCP off IPDHCP off Turns DHCP off IPStatic [X] [Y] [Z] IPStatic address netmask gateway Sets a static IP address Ex. IPStatic 192.168.1.1 255.255.255.0 192.168.1.200 IPPort IPPort Y Set the TCP/IP port (ex. IPPort 230) IPLogin sta IPLogin sta Displays IPLogin status Ex. IPLogin on IPLogin on IPLogin on Enables IPLogin IPLogin off... -
Page 25: Remote Control
Command for Output (receiver) baud rate RS232paraX[baudrate,data-length,parity,stop-bit] X represents the zone# (output#), the data length must be 7 or 8, partity bit will be 0 for none, 1 for odd, 2 for even, and the stop-bit must be 1 or 2. For example if you wish to change the baud rate to 19200, data length 8, ODD parity, and 1 stop-bit on the receiver in zone 3 to 19200 the command would look like this: RS232para3[19200,8,1,1] Remote Control Output selection. Numbers correspond with the category cable outputs (1-6) on the matrix. Arrow buttons are not functional for this product. Input selection. Numbers correspond with the HDMI inputs (1-6) on the matrix. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 26: Resetting And Updating
• RS-232 9 Pin to 9 Pin cable. • PC (not compatible with MAC) • OS that supports USB mass storage devices • USB A to USB B cable To view the current firmware use RS-232 command “Version”. Preparing the Matrix: • Unplug the power cable. • Hold the Cancel button while plugging the power back in. • Connect the USB B to USB A cable into the Matrix and the Computer. Updating the Matrix: The computer should auto detect the connection, if it does not, open the USB device from “my computer”. • Click open in a new folder. (if auto run detects connection) • Delete the file in the folder. (there should be only one file, if more, delete all files) • Copy and Paste the new firmware file into the USB folder. • Unhook the Matrix from the computer. • Unplug the power cable from the AT-PRO3HD66M • Plug the power back in and start the matrix normally. Your update should be complete If you wish to verify the new firmware, use the RS-232 command “Version”. Resetting to factory settings Atlona understands that settings can be troublesome and at times its just easier to set things back to factory settings. To make things easier a simple one step reset was created. To reset the matrix, hold down the buttons 1 and 4 while powering on. If successfull the matrix will be back to factory settings when it turns on. Simultaneously home screen Reset to Power LED should turn AT-PRO3HD66M ---> ---> --->... -
Page 27: Specifications
Distance 230ft (70m) @ 1080p over CAT6a/7 197ft (60m) @ 1080p over CAT5e/6 Resolution Video: up to 1080p@60Hz VESA: up to 1920x1200 Dimensions 3.45 x 17.24 x 10.98 (inch) 87.5 x 438 x 279 (mm) Weight 9.55 lbs 4.32 Rack Size 2 U, 19 in. standard electronics rack Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C -20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 28: Safety Information
To reduce the risk of electric shock, do not void the warranty and safety features. expose this product to rain or moisture This equipment should be installed near If the wall plug does not fit into your local the socket outlet and the device should power socket, hire an electrician to replace be easily accessible in the case it requires your obsolete socket. disconnection. Precautions FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user’s authority to operate this equipment. Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires. In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in. Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product. Avoid excessive humidity, sudden temperature changes or temperature extremes. Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools. Use only accessories recommended by Atlona to avoid fire, shock, or other hazards. Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product. Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-PRO3HD66M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 29: Warranty
Warranty Limited Warranty Atlona Technologies warrants that (a) its products (AT-PRO3HD66M) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas. Customer Remedies Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period. No other warranties To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction. No liability for damages To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 30: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates. At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights. To register go to: http://www.atlona.com/registration Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
