Atlona HDMI 8 by 8 Matrix Switcher
over CAT5e/6/7
AT-PRO2HD88M
User Manual
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-PRO2HD88M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlona AT-PRO2HD88M

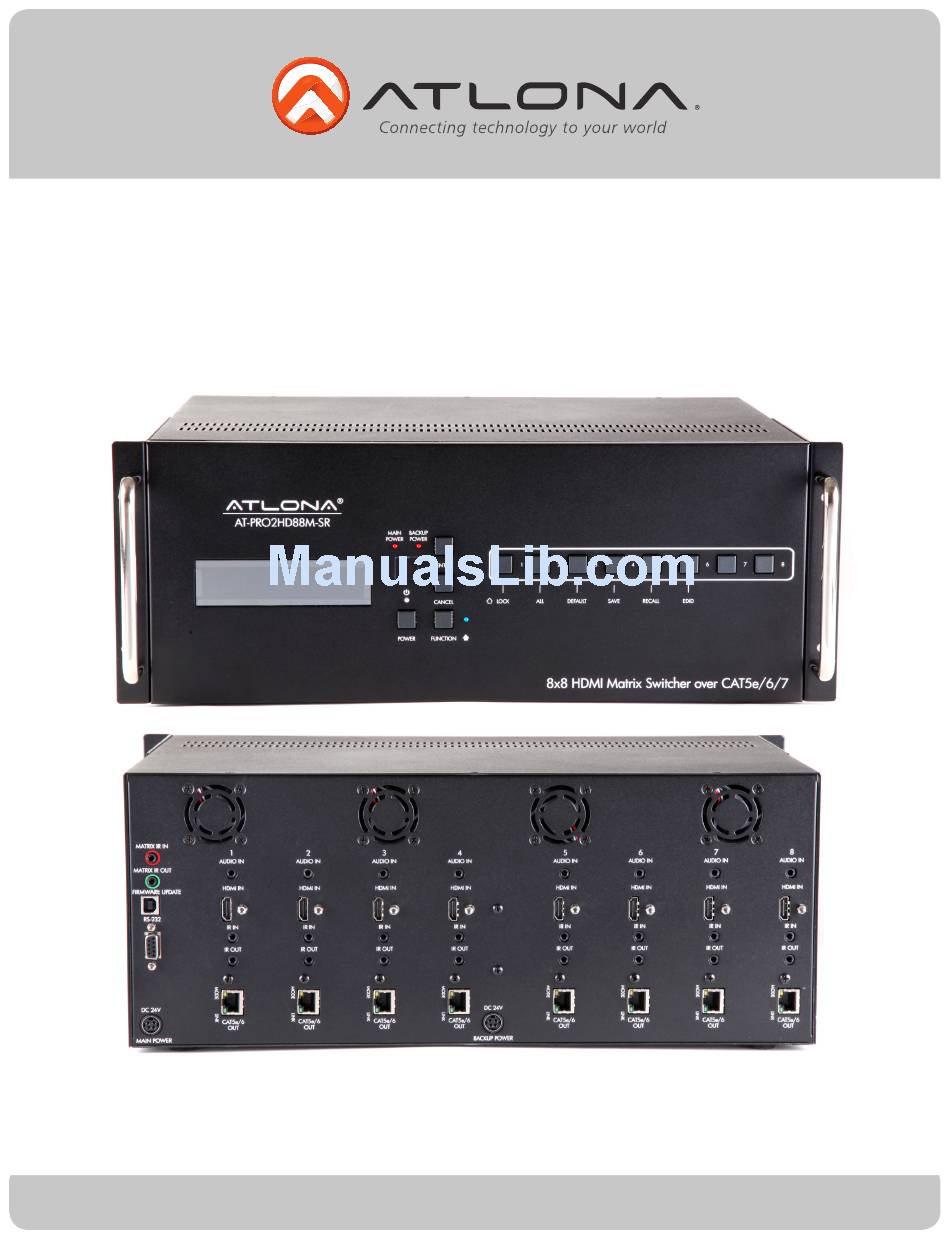

  • Page 1 Atlona HDMI 8 by 8 Matrix Switcher over CAT5e/6/7 AT-PRO2HD88M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    Command ..................11 c. Set Up ..................12 d. Baud Rate ..................12 10. Resetting and Updating ..................13 11. Safety Information ..................14 12. Warranty ..................15 13. Atlona Product Registration ..................16 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    8 by 8 Matrix Switcher supports all Lossy and Lossless formats of Dolby and DTS. The AT-PRO2HD88M delivers the best quality available with pass through of up to 1080p, 1920x1200, 3D, and Dolby TrueHD and DTS-HD Master audio signals.
  • Page 4: Before You Start

    • Be sure you’re using a mono to mono (2 conductor) 3.5mm IR cable (i.e. AT-MINIMONO6 - available to purchase at Atlona.com) when using IR output control from 3rd party controllers, stereo (3 conductor) 3.5mm cables are not compatible.
  • Page 5: Panel Description

    Firmware: This function option will display the current firmware the Matrix has installed. 8. Number buttons. Use these buttons to select input and output paths or use with the function button to change multiple matrix settings. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 6: Rear Panel

    10. CAT5e/6/7 Output ports - Extends video and bidirectional RS-232, IR, and audio signals through a single CAT5e/6/7 cable. 11. Backup Power - Redundant power supply in case the main power supply fails. Includes second 24V/6.25A DC adaptor. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 7: Connection And Installation

    Video Display Video Display With the new feature of the IR in ports the AT-PRO2HD88M has the unique ability to receive IR commands through a 3rd party controller and send it out through the CAT5e/6/7 port to control the displays in any zone.
  • Page 8: Ir Remote Control

    Note: When using an IR remote control all sources can be controlled as well as the local display. Satellite Receiver IR Emitter IR Emitter Blu-ray Player AT-PRO2HDREC AT-PWUSB-L AT-PRO2HD1616M-RX AT-PWUSB-L Optional Optional USB power USB power IR Receiver IR Receiver Module Module Video Display Video Display Remote Remote Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 9: Matrix I/O Control

    Press enter to confirm Once the basic control set up is done there is the option to save the matrix’s route. The AT-PRO2HD88M has 8 programmable memories which are useful for fast switching to the most used routes. To save a route. Function option is “Save”.
  • Page 10: Edid Set Up

    There are two options when setting up EDID: Default and Learned. In order to have any options other than default different EDIDs must first be learned. The AT-PRO2HD88M can learn up to 8 EDIDs to memory.
  • Page 11: Rs-232

    Erases the save for the number you selected Mreset Mreset Sets matrix back to the default settings Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 12: Set Up

    Command for Matrix baud rate CSpara[baudrate,data-length,parity,stop-bit] (data, parity, and stop for matrix must be 8,0,1) For example if you wish to change the baud rate to 38400 the command would look like this: CSpara[38400,8,0,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 13: Resetting And Updating

    For example if you wish to change the baud rate to 19200, data length 8, ODD parity, and 1 stop-bit on other receiver in zone 6 to 19200 the command would look like this: RS232para6[19200,8,1,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 14: Updating Firmware

    If you wish to verify the new firmware, press function then button 8 and it will display on the OSD. Resetting to factory settings Atlona understands that settings can be troublesome and at times its just easier to set things back to factory settings. To make things easier a simple one step reset was created.
  • Page 15: Safety Information

    It may also cause damage to your AT-PRO2HD88M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 16: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
  • Page 17 Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
