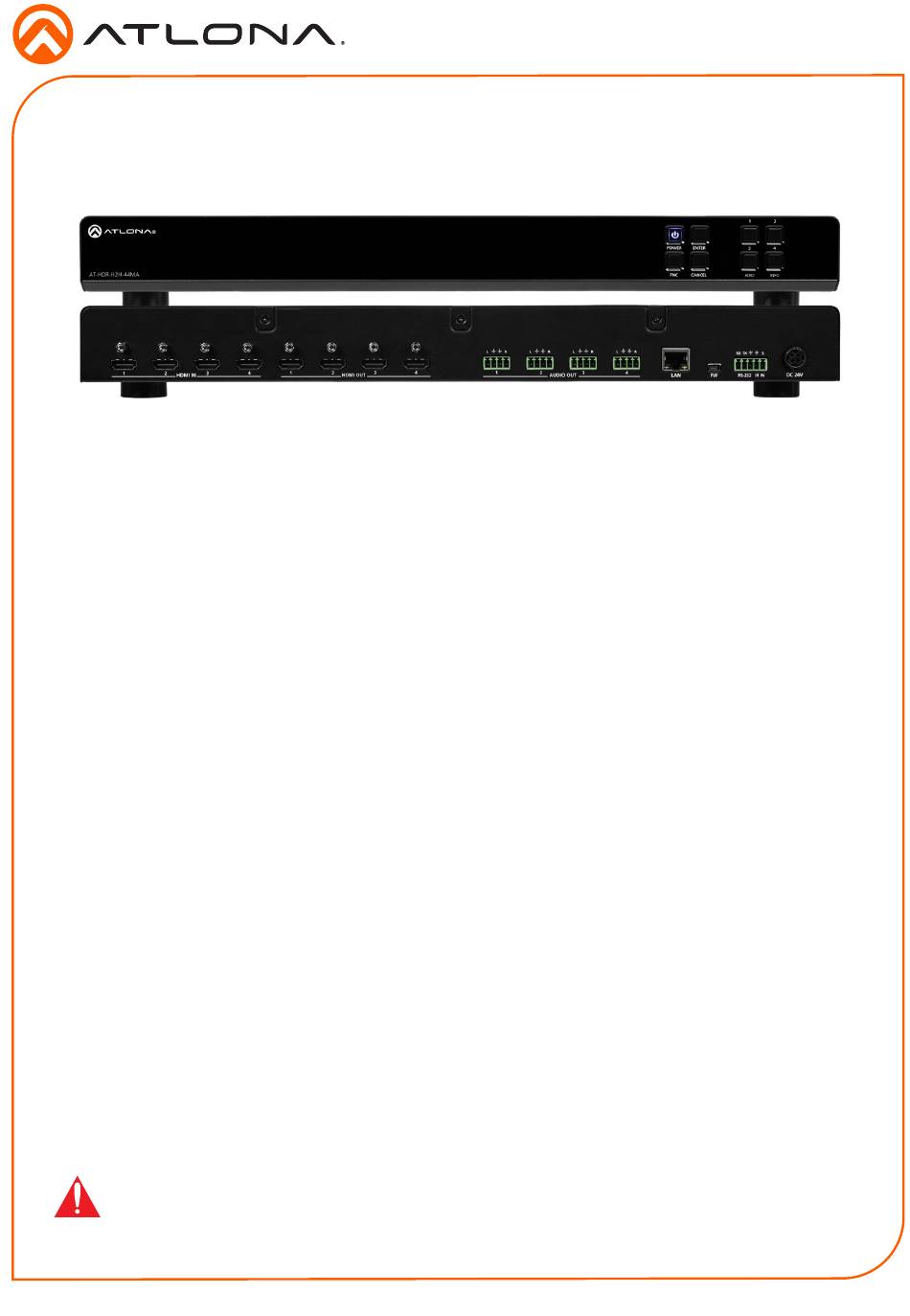

4K HDR 4×4 HDMI to HDMI Matrix Switcher
AT-HDR-H2H-44MA

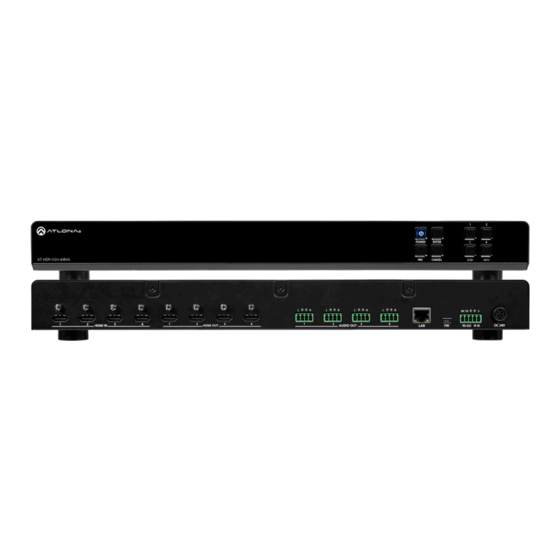

The Atlona AT-HDR-H2H-44MA is a 4x4 HDMI matrix switcher for high dynamic range (HDR)
formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44MA is ideal for residential
applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is
compatible with all video resolutions, audio formats, and color space formats supported in the
HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-
44MA includes EDID and HDCP management features, and can send CEC display control
independently to each output. An unbalanced analog audio output is paired with each HDMI
input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-
44MA can be controlled via Ethernet, RS-232, and IR. A hand-held IR remote control is included.
Package Contents
1 x AT-HDR-H2H-44MA
1 x Captive screw connector, 5-pin
4 x Captive screw connector, 4-pin
1 x 24V DC power supply
1 x Pair mounting ears w/screws
4 x Feet w/screws
1 x IR remote control
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-H2H-44MA for the latest
firmware updates and User Manual.
1
Installation Guide
AT-HDR-H2H-44MA
Advertisement
Table of Contents
Related Manuals for Atlona AT-HDR-H2H-44MA
Summary of Contents for Atlona AT-HDR-H2H-44MA
- Page 1 4K HDR 4×4 HDMI to HDMI Matrix Switcher AT-HDR-H2H-44MA The Atlona AT-HDR-H2H-44MA is a 4x4 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays.
- Page 2 Pin out will be determined by the IR IN is connected by a ground and RS-232 cable and connect as signal wire. Use with 3rd party control RX (receive), TX (transmit) and systems. For easy termination, Atlona (Ground). recommends using the 2 meter IR cable AT-LC-CS-IR-2M.
- Page 3 Unbalanced Mounting Instructions The AT-HDR-H2H-44MA can be mounted in a standard 19-inch rack or placed freestanding on top of a desk or table. Rack installation Remove the front two case screws from the sides of the case.
- Page 4 EDID I IN Surface mounting The AT-HDR-H2H-44MA can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included. Turn the unit upside down.
- Page 5 Connect the power supply to an AC outlet. WebGUI The AT-HDR-H2H-44MA includes a built-in webGUI, which allows easy management and control of all features. Follow the instructions below to access the webGUI. View the IP address of the unit using the front panel OSD.
- Page 6 Installation Guide AT-HDR-H2H-44MA Connection Diagram Matrix Mutli-zone Amplifier Blu-ray Player AT -HD P BOX 24 V Set-Top Box Display TP UT TP UT Media Player TP UT TP UT Display Automation -H 2H AT -H AT-HDR-H2H-44MA Control System AT-HDR-EX-70-2PS-RX AT-HDR-EX-70-2PS-TX...
- Page 7 Installation Guide AT-HDR-H2H-44MA Troubleshooting Problem Solution I am not receiving • By default, multichannel audio and 3D will not pass multichannel audio or 3D unless all devices support those features. Set each port’s video. EDID through the front panel, webGUI, or RS-232.
- Page 8 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
