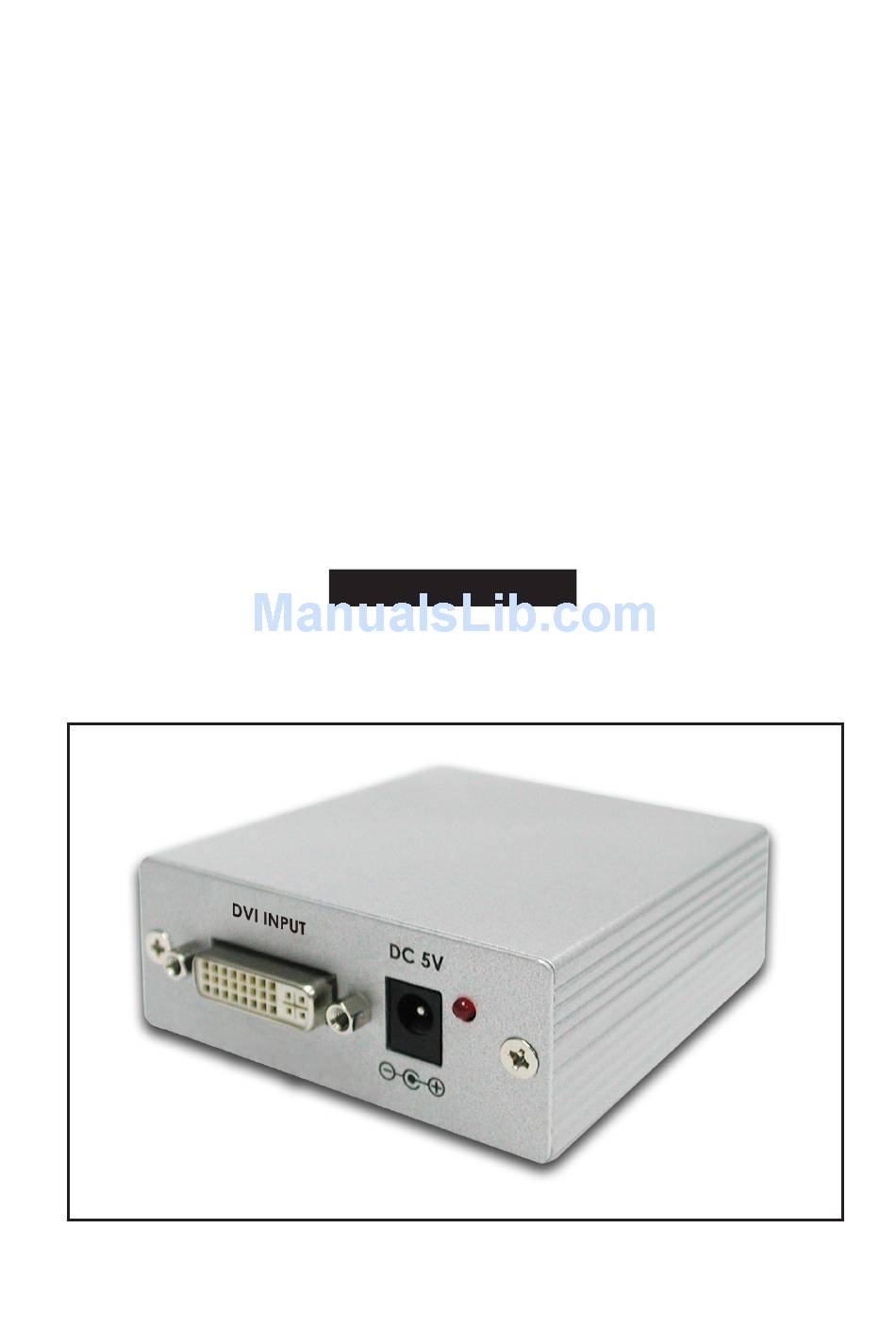

- Page 1 CP-1262DE DVI to PC/Component Converter Box Operation Manual CP-1262DE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Pin Configuration................ 6. Specifications................ -
Page 3: Introduction
1. Introduction This converter box converts digital DVI-D to Analog PC/RGB or HD YPbPr output. It enables to connect the DVI sources to the analog PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. -
Page 4: Operation Controls And Functions

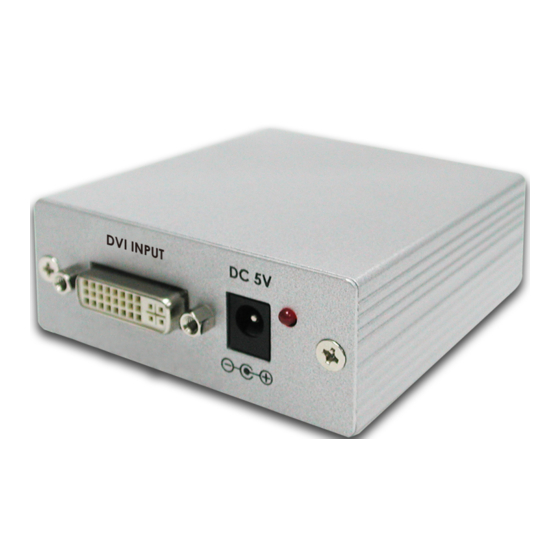

3. Operation Controls and Functions 3.1 Front Panel DVI INPUT DC 5V 1 DVI input: Connect the DVI-D input port to the DVI output port of your source equipment such as DVD player or set-top-box. It supports only DVI-D signal via a DVI-I connector. 2 Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. -
Page 5: Connection And Installation
4. Connection and Installation Connection 1 PC monitor RGB out Projector, PDP. DVI Cable VGACable Connection 2 YPbPr out DVI Cable HD YPbPr input D-Sub to 3 RCA Cable HDTV or, DVD or Set-Top Box Projector 5. Pin Configuration A. DVI input Pin Assignment. Function Function Function... -
Page 6: Specifications
B. Analog VGA output pin C. Analog VGA output pin assignment assignment when output switch when output switch set to YPbPr. set to RGB. Part No. Pin No. Description (PC out) Part No. Pin No. Description (HD out) GREN BLUE GND (DDC-RETURN) GND (DDC-RETURN) GND-RED... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080819 MPM-CP1262DE...
