CYP CP-1261D Operation Manual

Pc/hd to dvi format converter
Hide thumbs Also See for CP-1261D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CP-1261D
PC/HD to DVI Format Converter
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-1261D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CP-1261D

Summary of Contents for CYP CP-1261D

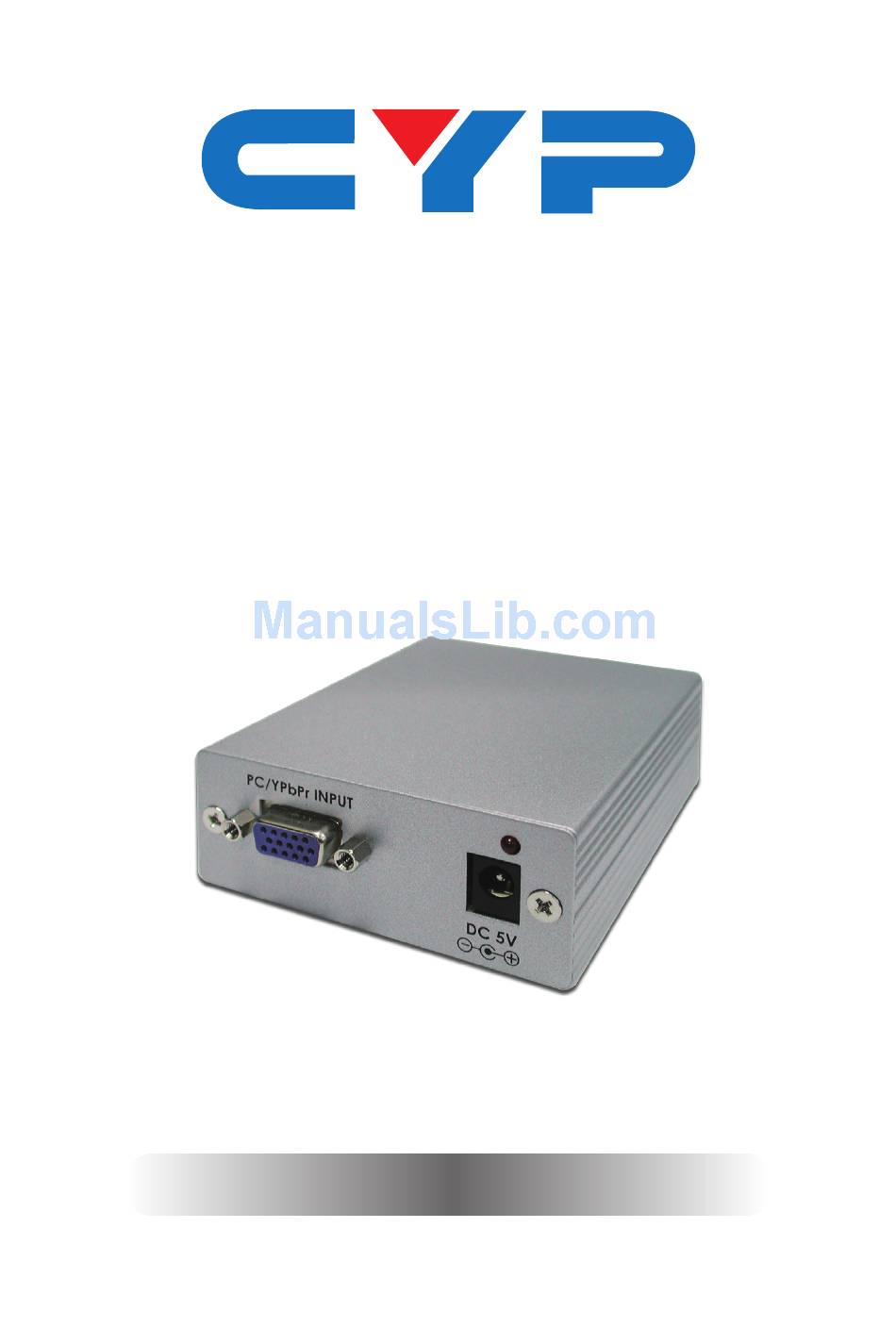

  • Page 1 CP-1261D PC/HD to DVI Format Converter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........ 1 5. Features ............1 6. Operation Controls and Functions ... 2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 6.3 DVI-I Pin Configuration ......4 6.4 Resolution Supports .......5 7.

  • Page 6: Introduction

    1. INTRODUCTION This PC/HD to DVI Format converter can convert and upgrade your input signal from analog to digital and VGA to a DVI signal, whether your source is a RGB signal from a PC or a Component signal (through the supplied HD-15 VGA to 3 RCA cable).

  • Page 7: Operation Controls And Functions

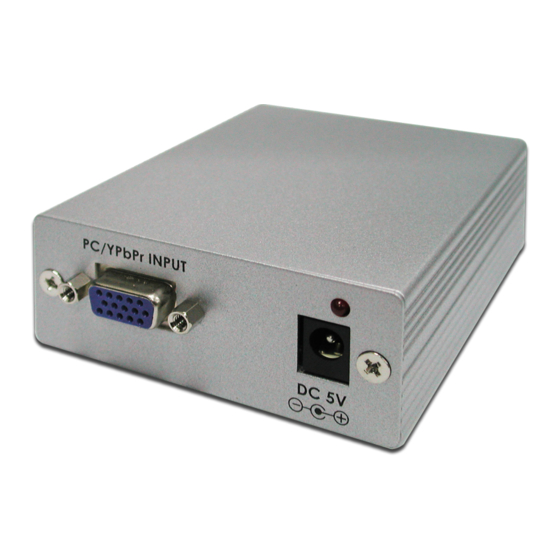

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PC/YPbPr INPUT DC 5V PC/YPbPr INPUT Connect to the PC or YPbPr source, using a VGA cable or the supplied D-Sub 15-pin to 3 RCA adaptor cable. DC 5V Connect the 5 V DC power supply to the unit and plug the adaptor into AC wall outlet.

  • Page 8: Rear Panel

    6.2 Rear Panel DVI-I OUTPUT INPUT OUTPUT YPbPr Bypass DVI-I (DVI-D signal) OUTPUT Connect to the DVI input of your display or digital video system with a DVI cable. INPUT FORMAT SWITCH YPbPr: Set the switch to YPbPr when the input format of your source device is Component YPbPr.

  • Page 9: Dvi-I Pin Configuration

    6.3 DVI-I Pin Configuration DVI-Integrated(DVI-I)- Supports both analog and digital connections to the display. This 29-pin connector can carry single or dual-link all- digital video/data signals on 24 pins and uses 5 pins to carry analog video/data signals and ground. 24 C3 COMBINED ANALOG AND DIGITAL CONNECTOR PIN ASSIGNMENTS Signal Assignment Pin...

  • Page 10: Resolution Supports

    6.4 Resolution Supports 640×480 VGA@60/72/75/85 800×600 SVGA@56, SVGA@60/72/75/85 1024×768 XGA@60/70/75/85 1152×864 MAC@70/75/85 1280×768 WXGA@60 (RB)/60 1280×800 WXGA@60 (RB)/60/75 1288×1024 SXGA@60/75/85 1440×900 WXGA+@60 (RB)/60/75 1600×1200 UXGA@60 1680×1050 WSXGA+@60 (RB)/60 1920×1200 WUXGA@60 (RB) (Pixel-rate154 MHz) HD/RGB 480i@60, 576i@50 480p@60, 576p@50 720p@60/50 1080p@60/50 1080p@60/50/30 Note: 1.

  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM PC or Laptop DVD or Blu-ray Player VGA Input Component Input (via HD-15 VGA to 3 RCA cable) PC/YPbPr INPUT DC 5V DVI-I OUTPUT INPUT OUTPUT YPbPr Bypass Power Supply DVI Output DVI Display (TV/Monitor/Projector)

  • Page 12: Specifications

    8. SPECIFICATIONS Video Frequency Up to 165 MHz Input Port 1×Analog HD-15 (RGBHV or YPbPr) Output Port 1×DVI-I (DVI-D output only) Input Format RGB: 0.7 Vp-p 75 ohm H+ V: 3 to 5 Vp-p or Y :1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm Output Format Digital RGB or YPbPr data bit stream Compliant With DVI Rev 1.0...

  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM EDID Extended Display Identification Data SVGA Super Video Graphics Array SXGA Super Extended Graphics Array UXGA Ultra Extended Graphics Array Video Graphics Array WSXGA Widescreen Super Extended Graphics Array WUXGA Widescreen Ultra Extended Graphics Array WXGA Wide Extended Graphics Array Extended Graphics Array...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
