JUDO Sample water cooler
Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These must always be issued to
the owner/user.
Prolongated guarantee period
if a maintenance contract has
been concluded!
Installation and Operating
Instructions

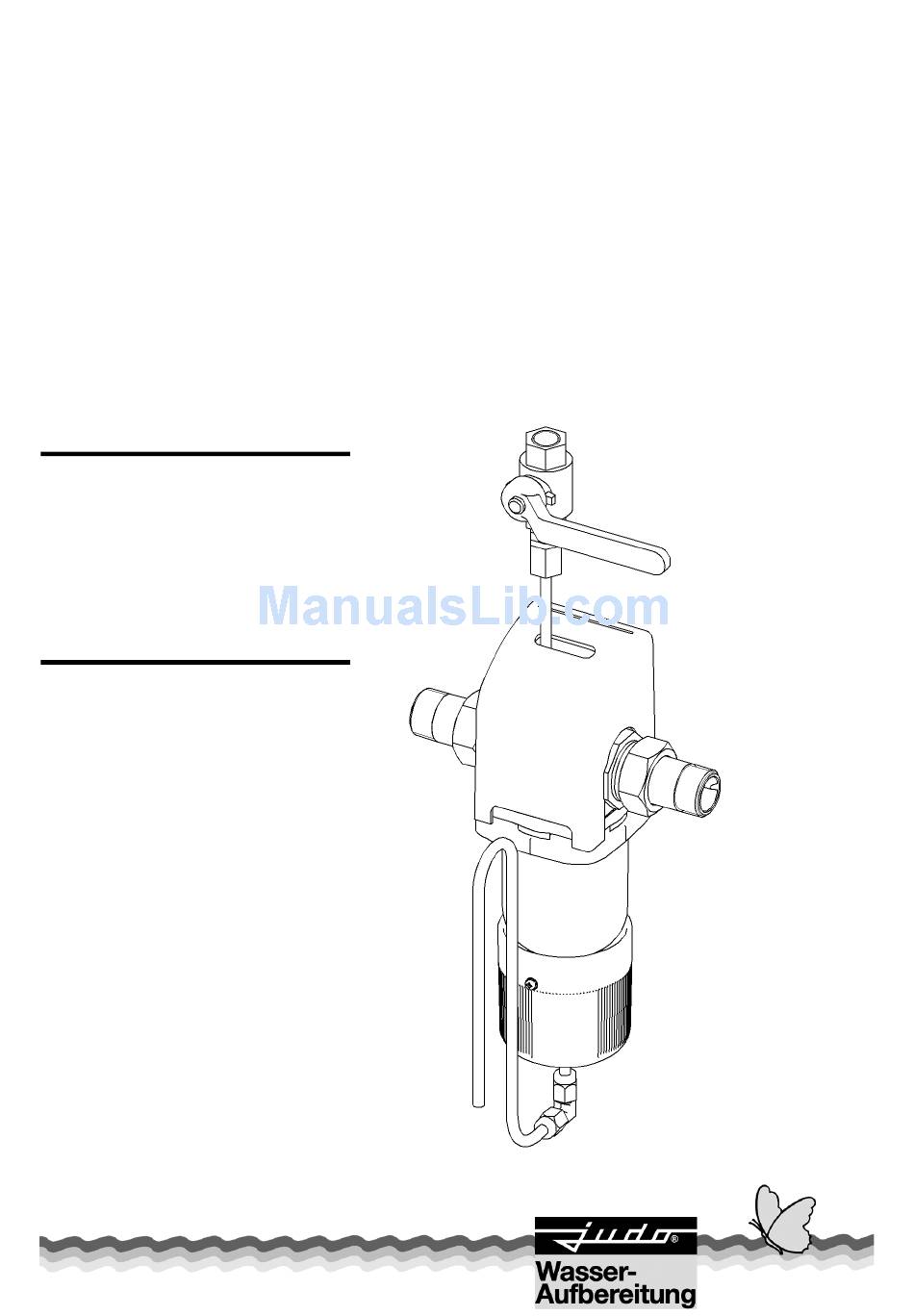

JPK 3
Sample water cooler
Valid for: EU countries and Switzerland
Language: English
Fig.: JPK 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Judo JPK 3
Summary of Contents for Judo JPK 3
- Page 1 Installation and Operating Instructions JUDO Sample water cooler JPK 3 Sample water cooler Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service.
- Page 2 Hohreuschstraße 39-41 D-71364 Winnenden Trademarks: Trademarks used in this document are protected and registered trademarks of the respective hold- © JUDO Wasseraufbereitung GmbH D-71351 Winnenden All rights reserved. Reprints – even of extracts – is only permitted with special approval.
-
Page 3: Table Of Contents
The installation and the servicing may only 9.3 Technical Data......13 be effected by trained personal, authorized 9.4 Installation Dimensions JPK 3 ... 13 by the manufacturer, being in a position to 9.5 Scope of Supply ......14 fulfill the directives, and the country-specific 9.6 Accessories ....... -
Page 4: Used Symbols
Unit Conversion and have to be kept in a completely legible °F °F = 9/5°C + 32 state. 1 bar = 10 Pa = 0,1 N/mm² ¾" DN 20 °e °e = 0.142 mmol/l alkaline earth ions JPK 3... -
Page 5: Intended Use
The sample water coolers are only to be used in impeccable condition as well as in- tended, safety-conscious and danger- conscious with respect to the operation ma- nual. Have function faults to be eliminated wit- hout any delay. JPK 3... -
Page 6: Product Indications
Other uses are considered as not trained personal. intended, and are not permitted. The chapter “Intended Use” has obligatorily The JUDO Water Treatment Com- be observed! pany won’t be liable for any con- The pipe line has to be able to carry the sequential damages. - Page 7 ¼" x ø6mm Fig. 2: Connection to the Heating Circuit JPK 3...
-
Page 8: Operation
– boiler water shut-off possibility – feed water sample water ball cock G ¼" IG – condensate built-in rotary flange cold water system cooling water inlet valve sampling water Fig. 3: Description of the Functioning JPK 3... -
Page 9: Take A Sample
4 Turn off the sample water tap. 5 Close the cooling water inlet valve. 6 After having brought to an end the sam- pling analysis the cleaned Erlenmeyer flask can be put on the sampling removal tube in order to store it. JPK 3... -
Page 10: Modifications / Changes / Spares
In the case of non-compliance water dam- ages can occur in the building caused by the uncontrolled escaping of water. The instructions, stated in the chapters “In- stallation” and “Maintenance” have to be strictly observed. JPK 3... -
Page 11: Faults
Case of Non-compliance”) Use only clear, drinking water concern- ing the cleaning of the housing and the transparent filter hood. Domestic all-purpose cleaners and glass cleaners can contain up to 25% solvents or alcohol (spiritus). JPK 3... -
Page 12: Warranty And Services
It is to be recommended to aim at the main- tenance works and the supply of the con- sumer- and wear parts being effected by the skilled handicraft or the manufacturer client service. JPK 3... -
Page 13: Data Sheet
Data Sheet Data Sheet Weight Model Weight Type JPK 3 2.0 kg Sample water cooler Abbreviated name: JPK 3 Installation Dimensions JPK 3 Models Model Order-Number JPK 3 8460050 Technical Data – The sample water cooler is suited for the use in heating circuits up to a heat water temperature of maximum 100°C (212 °F). -
Page 14: Scope Of Supply
Concentration range 0 - 10 mg P 8742136 Phosphate Refill package 8742137 Test sticks for the testing of the concentration of the JUDO long-term conditioner, type, 8742170 JTH-ML Typ JTH-L and JKL 40 Package content: 100 pieces Concentration range 0 - 10 mg O... -
Page 15: 10. Spare Parts
1980009 wide-neck 300 ml Profile flange seal 2460016 sample tube 1410149 Angle screwing 1450258 Clamp ring 1450259 (single-piece for an- gle screwing) Extended warranty period if a maintenance agree- ment is concluded! 1. VE = Unit of Billing JPK 3... -
Page 16: 11. Customer Service
Tel. +43 (0)22 66 / 6 40 78 • Fax +43 (0)22 66 / 6 40 79 e-mail: info@judo-online.at • www.judo-online.at JUDO Wasseraufbereitung GmbH • Filiaal / Filiale BeNeLux Avenue du Laerbeek - laan, 72 A1 • B-1090 Brussel / Bruxelles Tel.
