TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the LCD control panel,
handbrake lever, tiller adjustment lever, and the throttle control lever. See figure 4.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller
console does become exposed to moisture, do not attempt to operate your scooter until
the tiller console has dried thoroughly.
TILLER ADJUSTMENT LEVER
THROTTLE
CONTROL
LEVER
LCD CONTROL PANEL

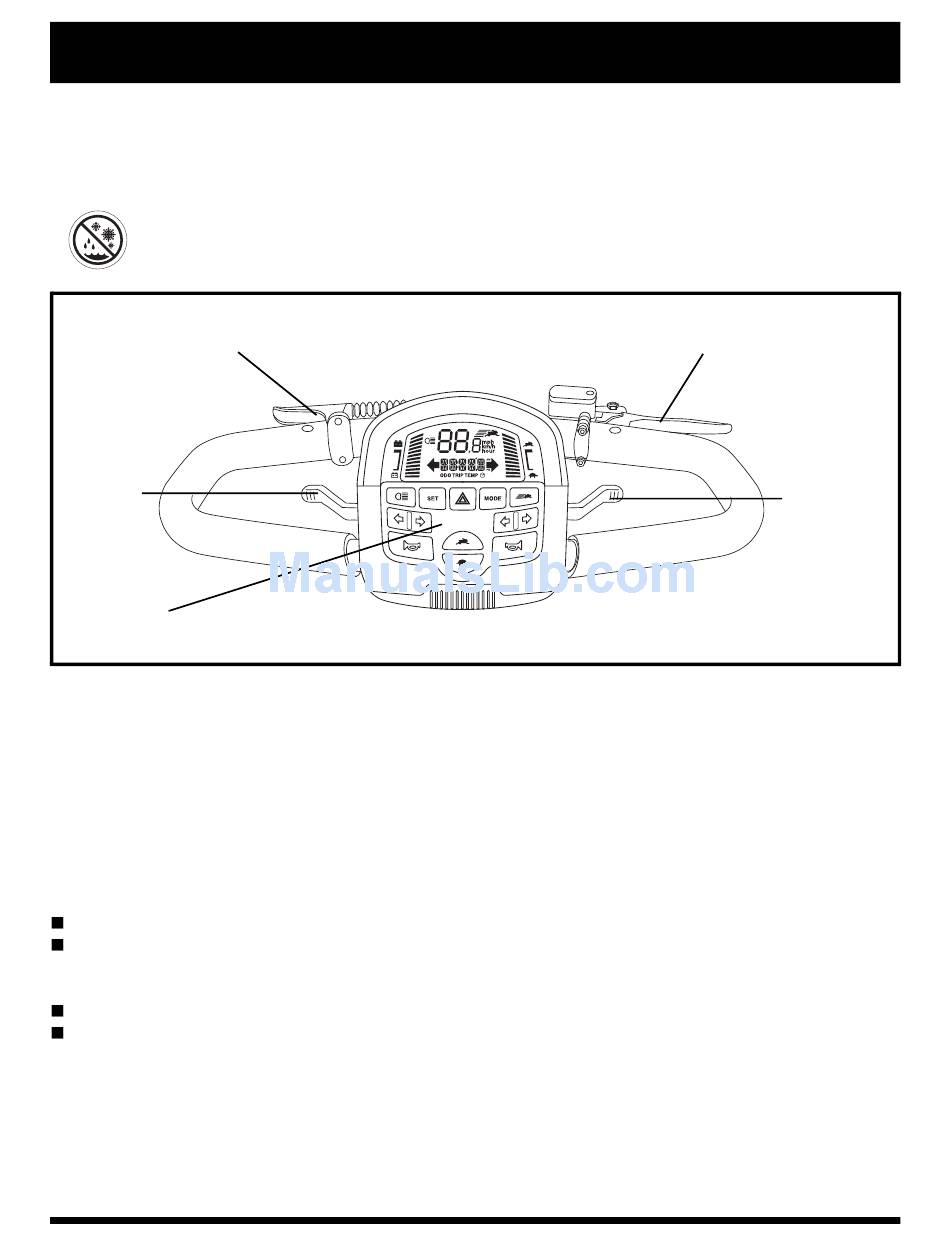

Figure 4. Tiller Console Components
LCD Control Panel
See the supplemental basic operating instructions booklet (included in the owner's packet) for operation
and functions of the LCD control panel.
Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your scooter up to the
maximum speed you preset with the speed adjustment buttons.
To Move Forward, use either of the following:
Use your left thumb to push the left side of the throttle control lever.
Use your right hand fingers to pull back on the right side of the throttle control lever.
To Move Rearward, use either of the following:
Use your right thumb to push the right side of the throttle control lever.
Use your left hand fingers to pull back on the left side of the throttle control lever.
Release the throttle control lever and allow your scooter to come to a complete stop before engaging the
other side of the lever. When the throttle control lever is completely released, it automatically returns to
the center "stop" position and engages your scooter's brakes.
Tiller Adjustment Lever
See VI. "Comfort Adjustments."
Colt Executive
I I I . Y O U R S C O O T E R
www.pridemobility.com
HANDBRAKE LEVER
THROTTLE
CONTROL
LEVER
