ACME LED-MTX6S-8W User Manual

Scanner beam
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED-MTX6S-8W
User Manual
Please read the instruction carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-MTX6S-8W and is the answer not in the manual?

Questions and answers

Related Manuals for ACME LED-MTX6S-8W

Summary of Contents for ACME LED-MTX6S-8W

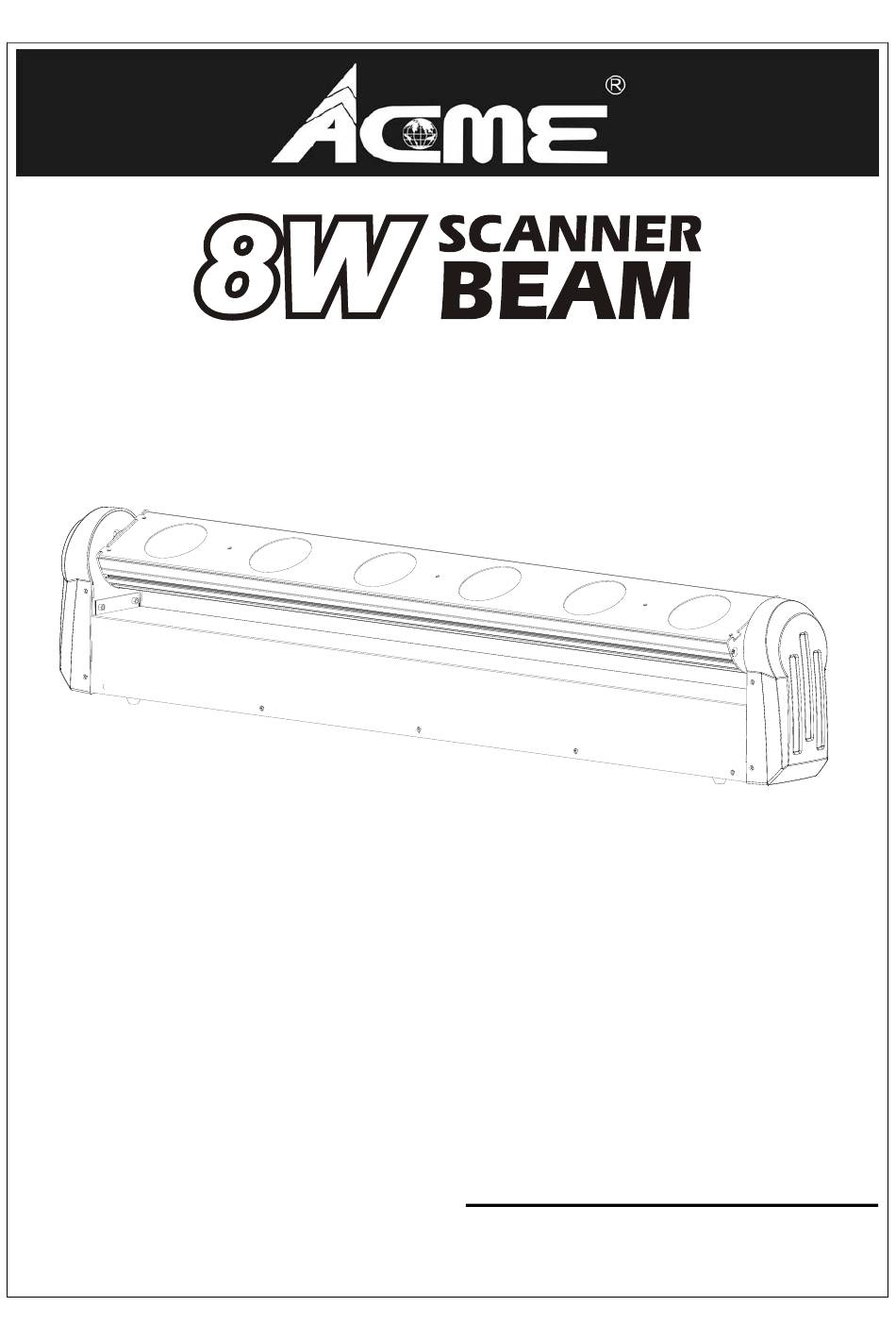

  • Page 1 LED-MTX6S-8W User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ....................3 3. How To Set The Unit ....................4 3.1 Control Panel ......................4 3.2 Main Function ....................5 3.3 Home Position Adjustment ................10 4. How to Control the Unit ..................11 4.1 Master/Slave Built In Preprogrammed Function ..........11 4.2 Easy CA-8 Controller ..................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specifications

    Caution: There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating.

  • Page 5: How To Set The Unit

    3. How To Set The Unit 3.1 Control Panel 1. POWER IN: Connects to power supply 2. POWER OUT: Connects to next fixture 3. Function Display: Shows the various menus and the selected function LED: 4. DMX DMX input present 5.

  • Page 6: Main Function

    9. Microphone: Receives music signals for sound active mode 10. Only for remote control: Connects with the optional CA-8 to control the unit 11. DMX IN: DMX 512 link, use 3-pin XLR cable to link the unit and the DMX controller 12.
  • Page 8 DMX 512 ADDRESS To select , press the ENTER button to show DMX ADDRESS on the display. Use the DOWN /UP buttons to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to setup. To go back to the functions without any changes press the MENU button again.
  • Page 9 SHOW MODE To select , press the ENTER button to show SHOW MODE on the display. Use the DOWN/UP buttons to select (Show 0, random show) or (Show 1) or (Show 2) or … or (Show 12). Once the show has been selected, press the ENTER button to setup. To go back to the functions without any changes press the MENU button again.
  • Page 10 DISPLAY INVERSE To select , press the ENTER button to show DISPLAY on the display, and press the ENTER button again, it will show the (inversion). To go back to the functions without any changes press the MENU button. TILT INVERSION To select , press the ENTER button to show the TILT on the display.

  • Page 11: Home Position Adjustment

    press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the menu mode. FIXTURE HOURS To select , press the ENTER button to show FIXTURE HOURS on the display and the display will show the number of working hours of the unit .

  • Page 12: How To Control The Unit

    4. How to Control the Unit You can operate the unit in three ways: 1. Master/slave built-in preprogram function 2. Easy controller (optional CA-8) 3. Universal DMX controller You do not need to turn the unit off when you change the DMX address, the new DMX address setting will take effect immediately.

  • Page 13: Dmx Controller

    4.3 DMX Controller By using a universal DMX controller to control the units, you must set a DMX address from 1 to 512. Press the MENU button up to where is showing on the display. Press the ENTER button and the display will blink. Use the DOWN/UP buttons to change the DMX512 address. Once the address has been selected, press and hold the ENTER button until the display stops blinking or it will store automatically after 7 seconds.

  • Page 14: Dmx 512 Configuration

    5. DMX 512 Configuration 1/4 Channels Mode:...
  • Page 15 9 Channels Mode:...

  • Page 16: Dmx Connection

    11 Channels Mode: 6. DMX Connection 1. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) of a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 2.

  • Page 17: Troubleshooting

    even when one of the units’ power is disconnected. 4. Each fixture unit needs to have an address set to receive the data sent by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5.

  • Page 18: Fixture Cleaning

    8. Fixture Cleaning The cleaning of external must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ...
  • Page 19 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 20 Innovation, Quality, Performance...
