< 7 > Removing armature

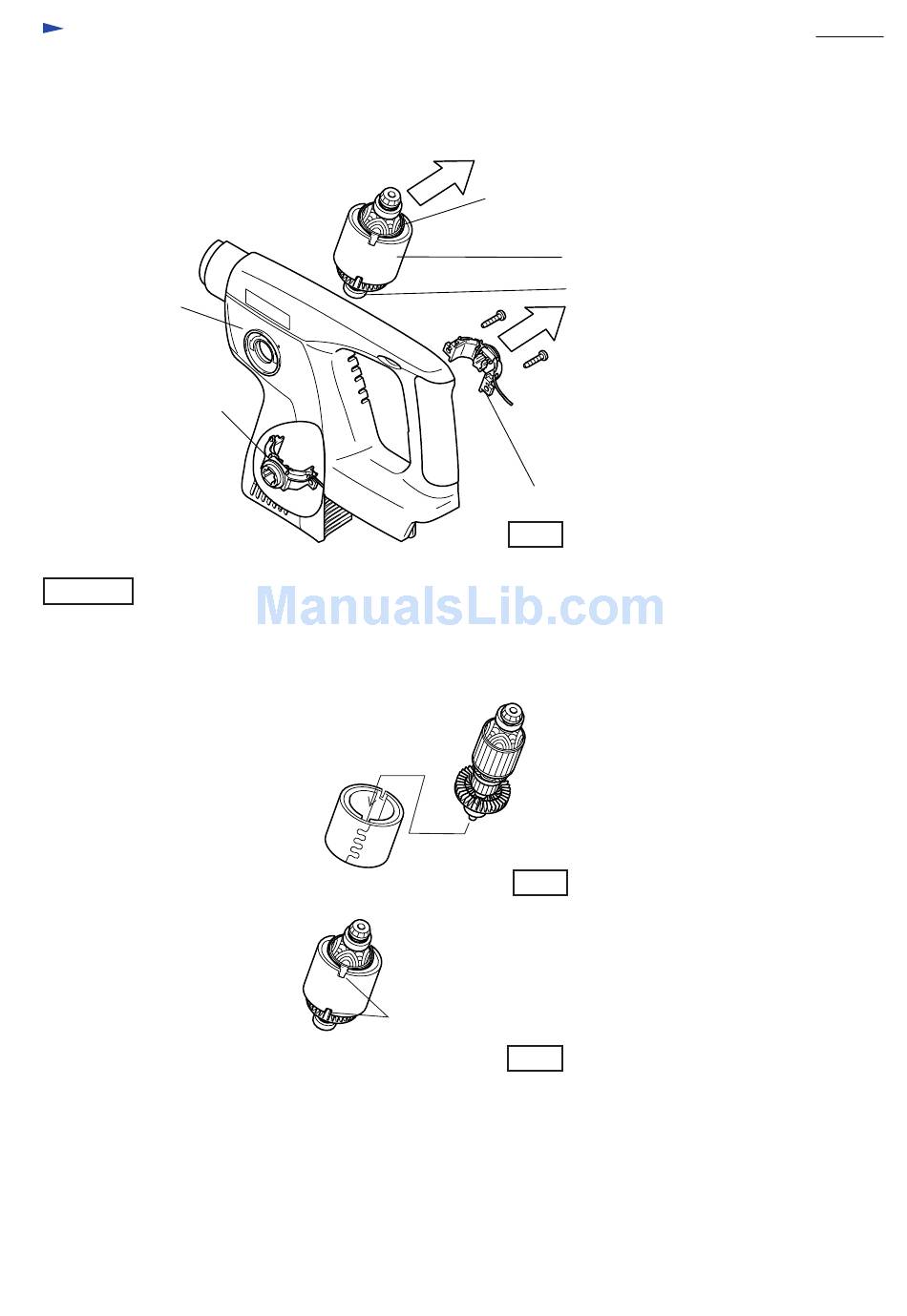

(1) Disassemble housing as per < 2 >, and then, take out brush holder on housing R side, by unscrewing
2 pcs. of tapping screws 4 x 18 as illustrated in Fig. 17. ( No need to remove brush holder assembled
in housing L.)
(2) Remove armature together with yoke unit
as illustrated in Fig 17.
Housing L
Brush holder
Assembling
< 8 > Assembling armature
(1) Insert armature into yoke unit as illustrated in Fig 18.
< Note > Armature is dragged into yoke unit easily, with its very strong magnetic force.
Be careful not to damage the armature wire, zerol bevel gear 11 and commutatror
in this process.
(2) Assemble yoke unit and armature to housing L
(3) Attach brush holders to housing L, and fasten them with 2 pcs. of tapping screw 4 x 12.
Armature (including zerol bevel gear 11,
ball bearing 608LLU, fan 64, and
ball bearing 626DDW)
Brush holder
on housing R side
Fig. 17
Fig. 18
Cut : Fit this cut on the rib of housing L.
Fig. 19
Yoke unit
< Note > Ball bearing 626DDW attached on
the commutator side, is not
assembled by pressing.
Be careful not to lose ball
bearing 626DDW, when removing
armature.
P 17 / 23
