R
epair

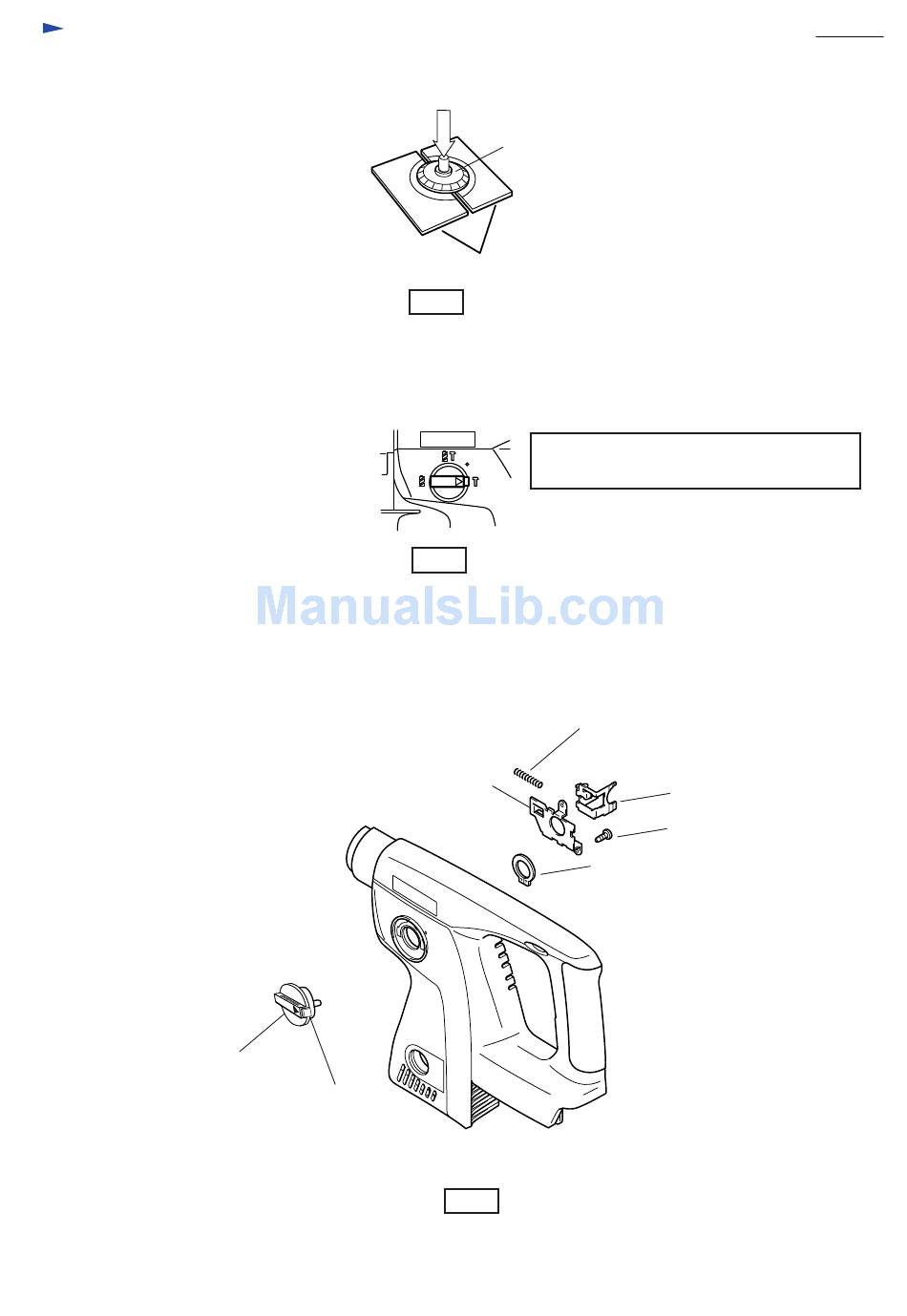

(3) Hold zerol bevel gear 32 with 1R022 "bearing extractor plate" as illustrated in Fig. 14.
And press cam shaft with arbor press. Swash bearing can be removed from cam shaft.
< 6 > Removing change lever
(1) Disassemble housing as per < 2 >, and then, take out the cam shaft unit and tool holder unit
from housing L.
(2) Set change lever to percussion mode as illustrated in Fig. 15.
(3) Remove change plate and compression spring 4, And detach guide plate by unscrewing
2 pcs. of tapping screws 4 x 12 as illustrated in Fig. 16.
(4) Detach retaining ring S-18, And pull out change lever with pressing lock button as illustrated in Fig. 16.
Change lever
1R022 Bearing extractor plate
Fig. 14
Fig. 15
Guide plate
Lock button
Fig. 16
Zerol bevel gear 32
< Note > It is impossible to remove change plate
in the other mode.
Compression spring 4
Change plate
Tapping screws 4 x 12
Retaining ring S-18
P 16 / 23
