Circuit Diagram; Wiring Diagram - Makita BHR200S Technical Information

C

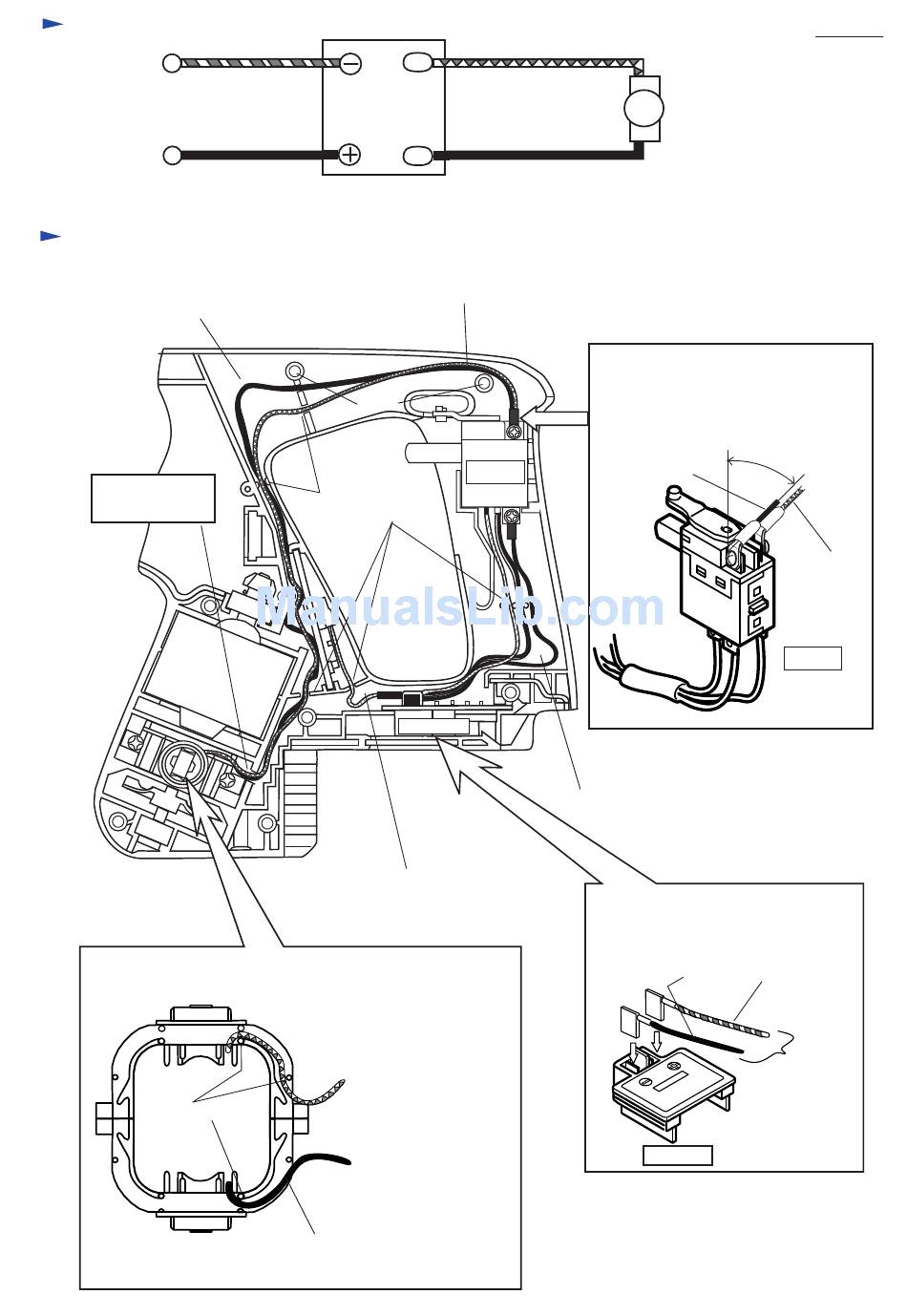

ircuit diagram
Orange
Black
W
iring diagram
Put slack part of lead wires
here.
Fix lead wires
with lead holder.
Brush holder
(Housing R side)
Fix with lead
holder.
Brush holder
(Housing L side)
M1
M2
Pass lead wires between boss
and inner wall of housing.
Boss
Switch
Fix lead wires
with lead holder.
Terminal
Put slack part of FET lead wires
here, and put it on the bottom of
the housing.
Lead wire (Red)
Lead wire (Black)
Only this lead wire (Black) is
free from lead holder.
Brush holder
(Housing R side)
Red
A
Brush holder
Black
(Housing L side)
Bend the connecting terminals of
brush holders' lead wires as illustrated
below, when they are connected with
switch.
Black
Put slack part of lead wires
to be connected with terminal, here.
Connect the receptacles with terminal
as illustrated below.
Terminal
P 23 / 23
Approx.45°
Red
Switch
Lead wire
Lead wire
(Orange)
(Black)
To be connected
with switch
