Piston Cylinder - Makita BHR200S Technical Information

R
epair

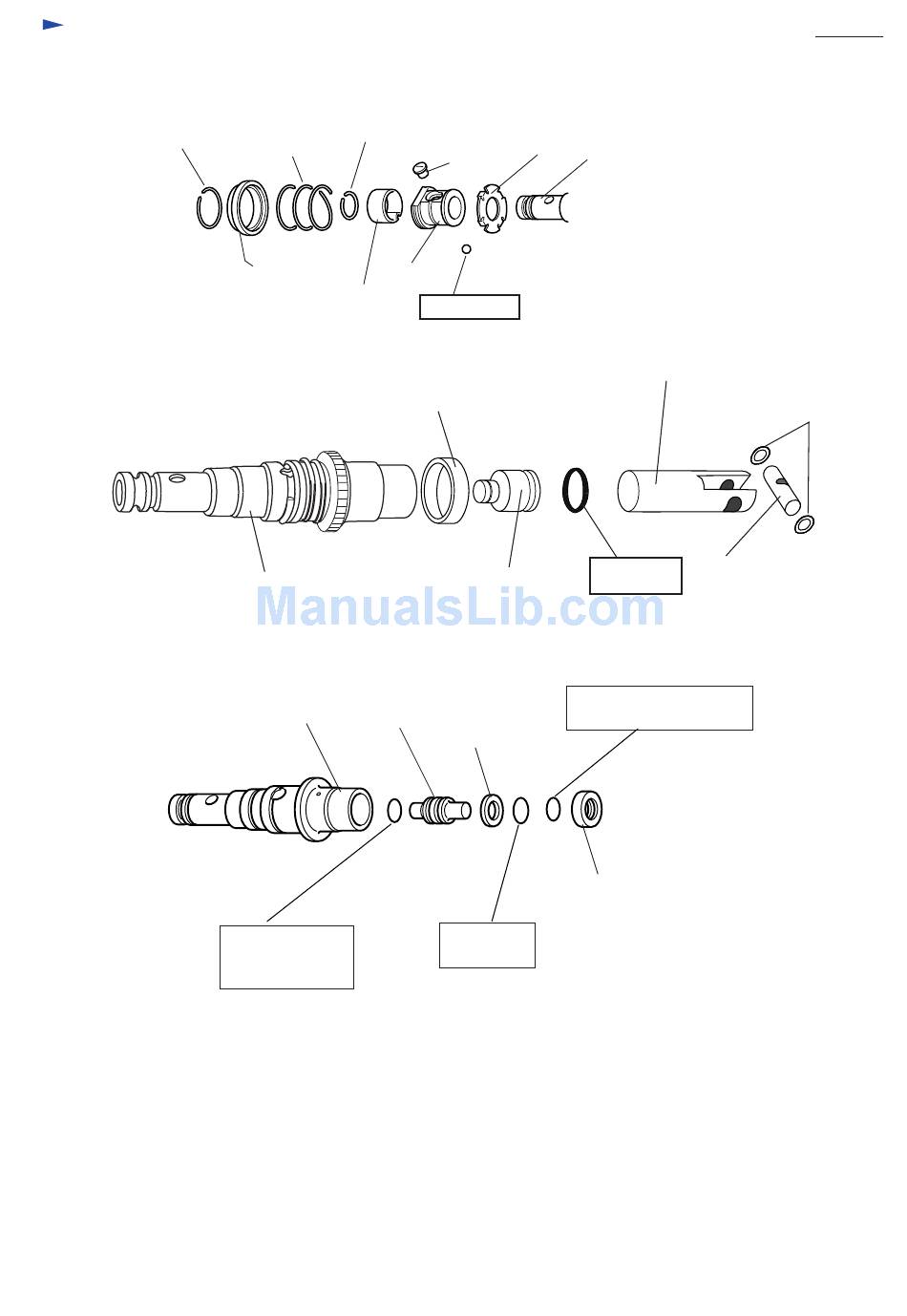

< 15 > It is recommended to replace the following parts in the square, when replacing carbon brush.
Ring spring 30.5
Tool holder section assembled
as per < 11 >
Tool holder
O ring 12
(Thin type) for
impact bolt
Compression
Ring spring 17
spring 35
Spring guide
Chuck ring
Leaf spring 26
Steel ball 7.0
Impact bolt
Guide washer
Tool holder
Pin 8
Plane bearing 26
O ring 15
Striker
O ring 11 to be assembled
to O ring case
Ring 12
O ring case
O ring 12
(Thick type)
P 22 / 23

Piston cylinder

Flat washers 12
Piston joint
