R
epair

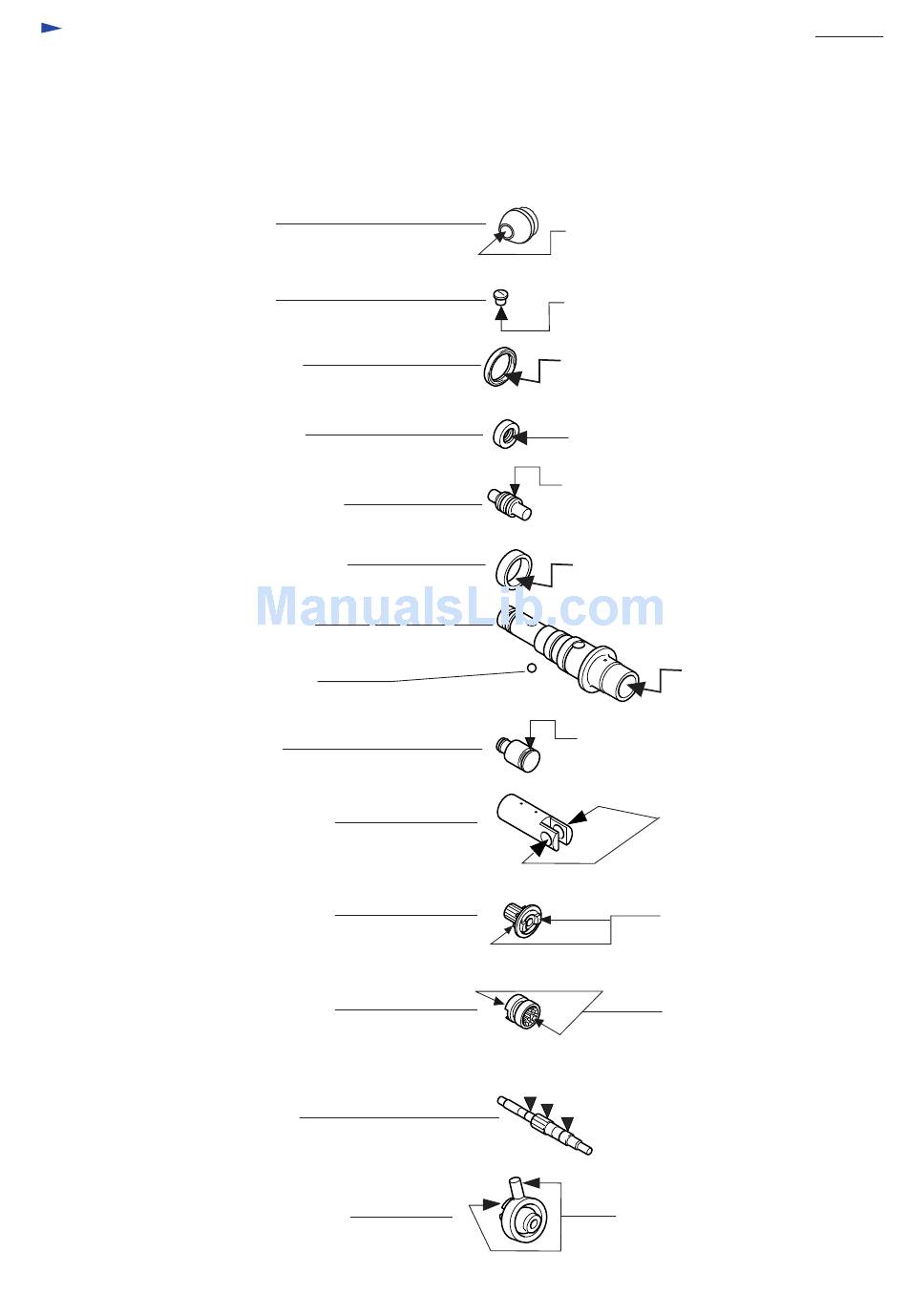

Lubrication
Put grease on the following places in order to protect parts and machine from unusual abrasion and overheating.
Recommendable is our genuine grease, "MAKITA Grease R No.1".
All of O rings built in BHR200S
Teeth of all gears built in BHR200S
(1) Cap 31
(9) Pin 8
(12) Oil seal 25
(15) O ring case
(19) Impact bolt
(21) Plane bearing 26
(22) Tool holder
(23) Steel ball 7.0
(29) Striker
(30) Piston cylinder
(38) Spur gear 10
(39) Clutch cam
(40) Cam shaft
(41) Swash bearing 10
Inside of rip portion
Bottom of cylindric portion
Inside of oil seal
Grooved portion inside of O ring case
Grooved portion for O ring
Inside of plane bearing 26
Whole Inner part of tool holder
Grooved portion for O ring
Inside of perforated holes
Cam portion
Cam portion
Whole part
Cam and shaft
P 11 / 23
