Makita BHR200S Technical Information page 12

R
epair
Removing

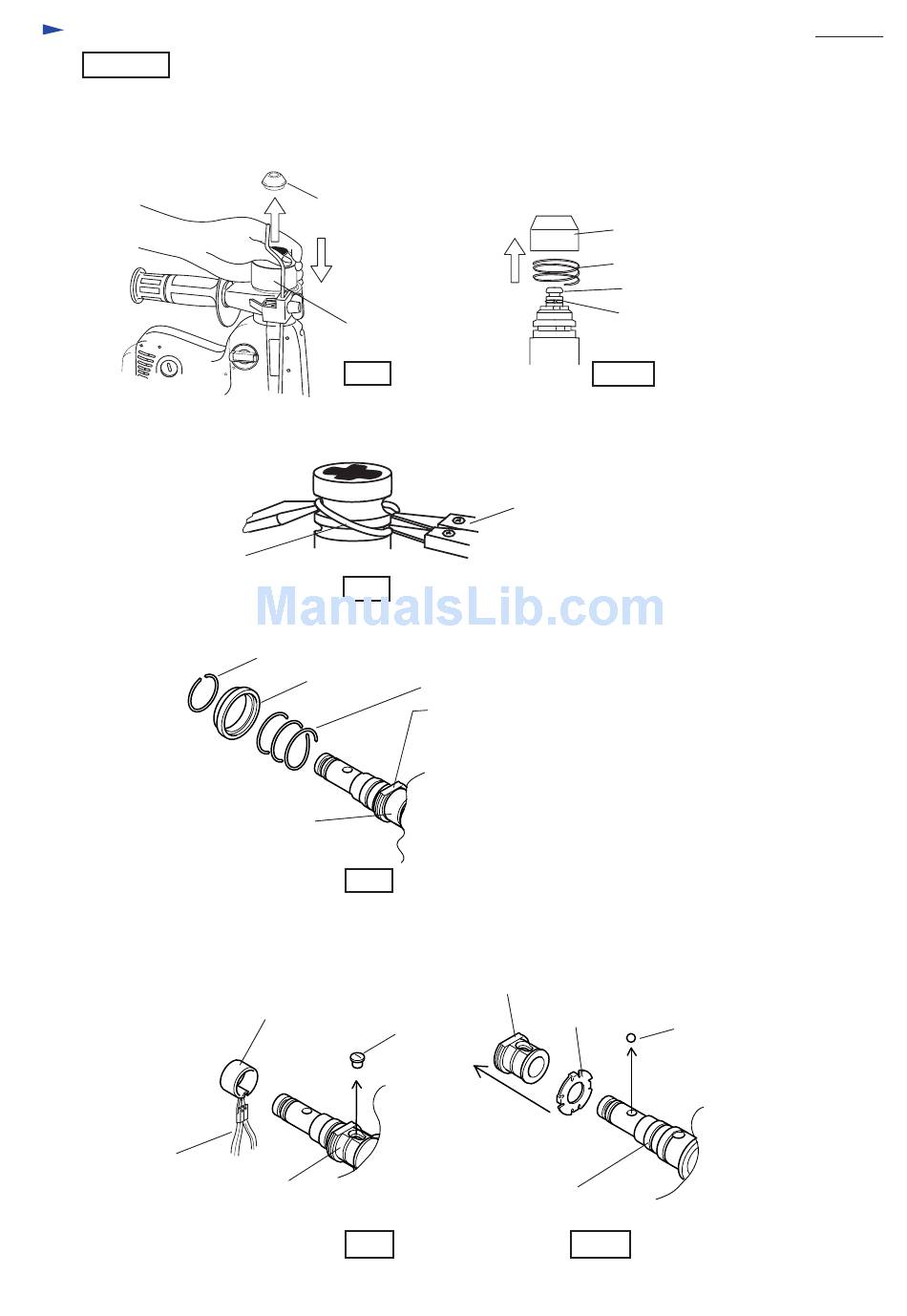

< 1 > Removing chuck section
(1) Pull down chuck cover and detach cap 31 as illustrated in Fig. 1, and then, remove chuck cover and
compression spring 38 as illustrated in Fig. 1A.
(2) Lever up ring spring 17 with screwdriver, expanding it with 1R004 "retaining ring plier" and remove
ring spring 17 from tool holder as illustrated in Fig. 2.
Ring spring 17
(3) Remove ring spring 30.5 from chuck ring, and then, detach spring guide and compression spring 35 as illustrated
in Fig. 3.
Leaf spring 26
installed on
chuck ring
(4) Remove leaf spring 26 with 1R003 "retaining ring plier" from chuck ring, and then, detach pin 8
as illustrated in Fig. 4. Remove chuck ring, steel ball 7.0 and guide washer from tool holder
as illustrated in Fig. 4A.
Remove from
chuck ring expanding
with 1R003
"retaining ring plier".
Cap 31
Pull down
chuck cover.
Chuck cover
Fig. 1
Fig. 2.
Ring spring 30.5
Spring guide
Fig. 3.
Leaf spring 26
Pin 8
Chuck ring
Fig. 4
Fig. 1A
1R004 Retaining ring plier
Compression spring 35
Chuck ring
Chuck ring
Guide washer
Tool holder
Fig. 4A
Chuck cover
Compression spring 38
Tool holder
Ring spring 17
Steel ball 7.0
P 12 / 23
