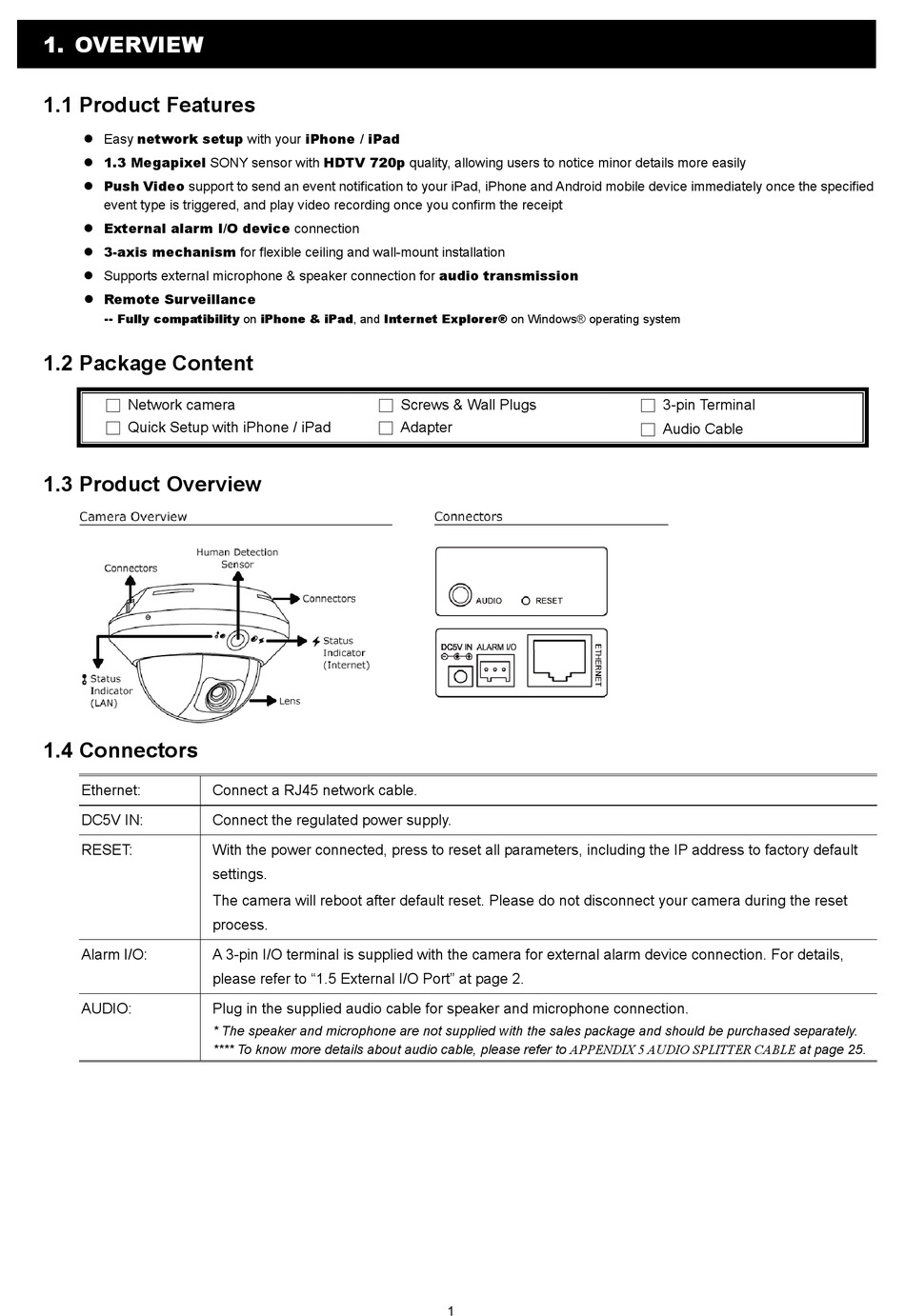

1. OVERVIEW

1.1 Product Features

 Easy network setup with your iPhone / iPad
 1.3 Megapixel SONY sensor with HDTV 720p quality, allowing users to notice minor details more easily
 Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified
event type is triggered, and play video recording once you confirm the receipt
 External alarm I/O device connection
 3-axis mechanism for flexible ceiling and wall-mount installation
 Supports external microphone & speaker connection for audio transmission
 Remote Surveillance
--
Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system

1.2 Package Content

□ Network camera
□ Quick Setup with iPhone / iPad

1.3 Product Overview

1.4 Connectors

Ethernet: Connect a RJ45 network cable.
DC5V IN: Connect the regulated power supply.
RESET: With the power connected, press to reset all parameters, including the IP address to factory default
settings.
The camera will reboot after default reset. Please do not disconnect your camera during the reset
process.
Alarm I/O: A 3-pin I/O terminal is supplied with the camera for external alarm device connection. For details,
please refer to "1.5 External I/O Port" at page 2.
AUDIO: Plug in the supplied audio cable for speaker and microphone connection.
* The speaker and microphone are not supplied with the sales package and should be purchased separately.
**** To know more details about audio cable, please refer to APPENDIX 5 AUDIO SPLITTER CABLE at page 25.
□ Screws & Wall Plugs
□ Adapter
1
□ 3-pin Terminal
□ Audio Cable
