Specifications - Cardinal Detecto 6127 Series Operating Instructions Manual

Thank you for your purchase of our Detecto Digital Physician Waist-High or Detecto Digital
Physician Eye-Level scale. It has been manufactured with quality and reliability at our factory
in Webb City, MO USA. Your scale has been tested before leaving our factory to insure
accuracy and dependability for years to come.
This manual will guide you through assembly, installation, and operation of your scale. Please
read it thoroughly before attempting to use your scale and keep it handy for future reference.
Capacity:
Platform Size:
Dimensions:
Shipping Weight:
Scale Height:
Height Rod Measures: 6129, 6129KG, 6339 - 30" to 78" (76 cm to 200 cm) x inch/cm
Display:
Power Requirements:
Keyboard:
8525-M310-O1 Rev E  612X Series and 633X Series

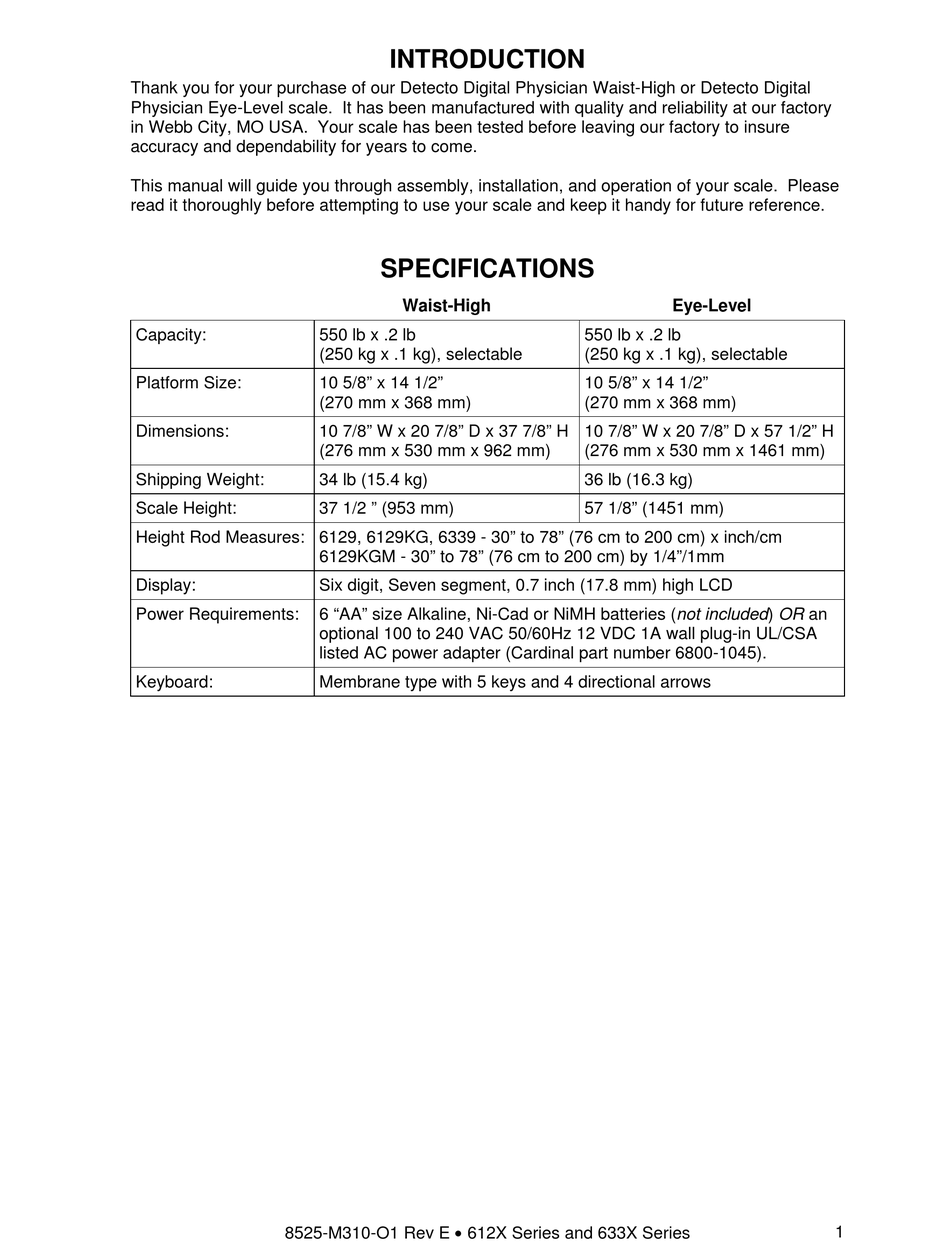

INTRODUCTION

SPECIFICATIONS

Waist-High
550 lb x .2 lb
(250 kg x .1 kg), selectable
10 5/8" x 14 1/2"
(270 mm x 368 mm)
10 7/8" W x 20 7/8" D x 37 7/8" H
(276 mm x 530 mm x 962 mm)
34 lb (15.4 kg)
37 1/2 " (953 mm)
6129KGM - 30" to 78" (76 cm to 200 cm) by 1/4"/1mm
Six digit, Seven segment, 0.7 inch (17.8 mm) high LCD
6 "AA" size Alkaline, Ni-Cad or NiMH batteries (not included) OR an
optional 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA
listed AC power adapter (Cardinal part number 6800-1045).
Membrane type with 5 keys and 4 directional arrows
Eye-Level
550 lb x .2 lb
(250 kg x .1 kg), selectable
10 5/8" x 14 1/2"
(270 mm x 368 mm)
10 7/8" W x 20 7/8" D x 57 1/2" H
(276 mm x 530 mm x 1461 mm)
36 lb (16.3 kg)
57 1/8" (1451 mm)
1
