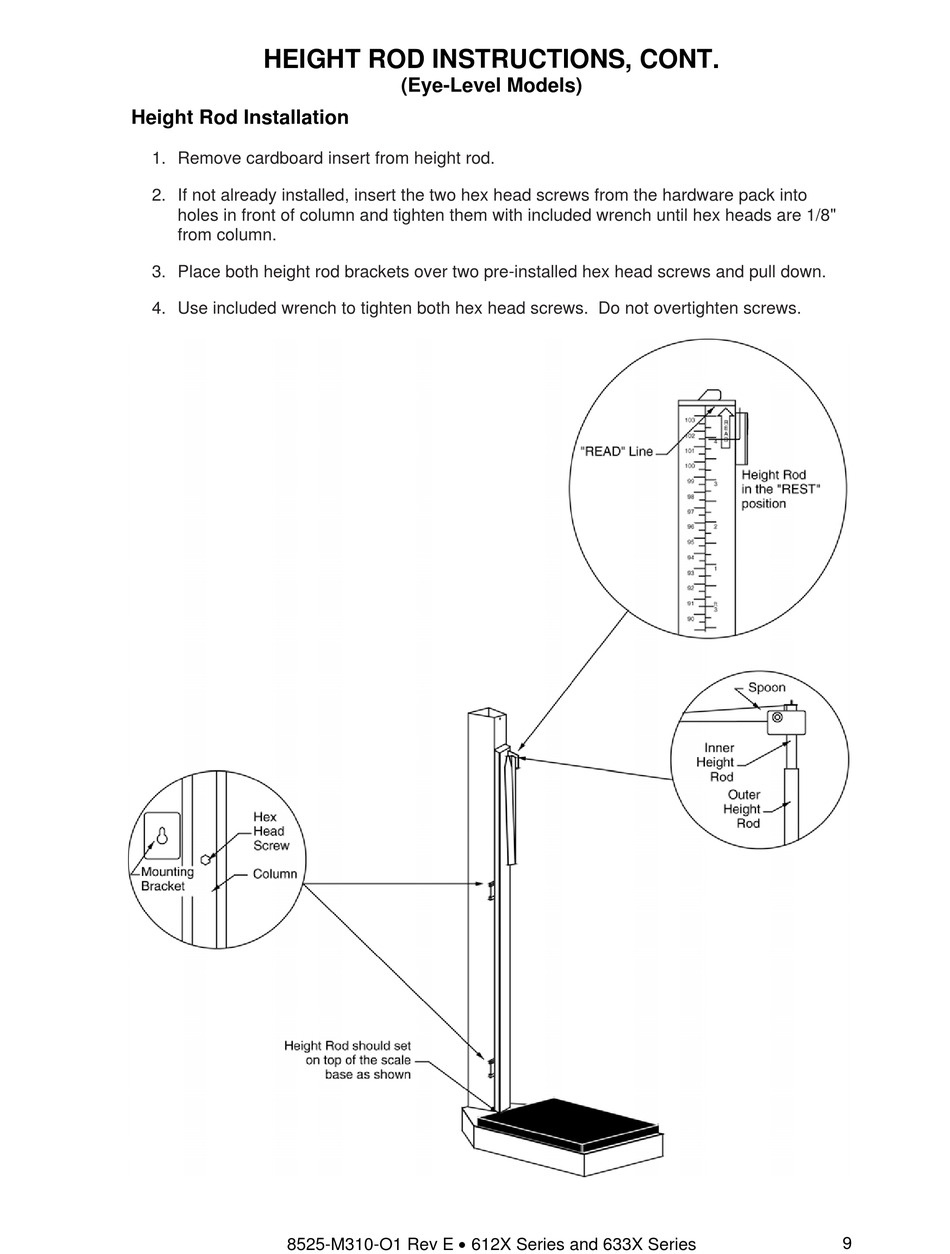

HEIGHT ROD INSTRUCTIONS, CONT.
Height Rod Installation
1. Remove cardboard insert from height rod.
2. If not already installed, insert the two hex head screws from the hardware pack into
holes in front of column and tighten them with included wrench until hex heads are 1/8"
from column.
3. Place both height rod brackets over two pre-installed hex head screws and pull down.
4. Use included wrench to tighten both hex head screws. Do not overtighten screws.
8525-M310-O1 Rev E  612X Series and 633X Series
(Eye-Level Models)
9
