Cardinal Detecto 6855 Operating Instructions Manual

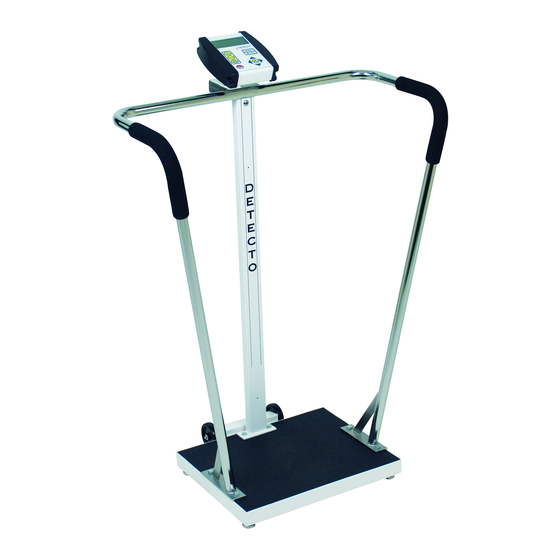

Waist-high stand-on scale
Hide thumbs
Also See for Detecto 6855:
- Operating instructions manual (12 pages) ,
- Operating instructions manual (17 pages)
Advertisement
Waist-High
Stand-On Scale
Models 6855, 6855KGEU
6856 & 6856KGEU
Operating Instructions
CARDINAL SCALE MFG. CO.
PO BOX 151 • WEBB CITY, MO 64870
1930-M458-O1 Rev C
Printed in USA
PH (417) 673-4631 • FAX (417) 673-5001
04/09
Web Site - http://www.detectoscale.com
Technical Support: Ph: 866-254-8261 techsupport@cardet.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cardinal Detecto 6855
Summary of Contents for Cardinal Detecto 6855
-
Page 1: Operating Instructions

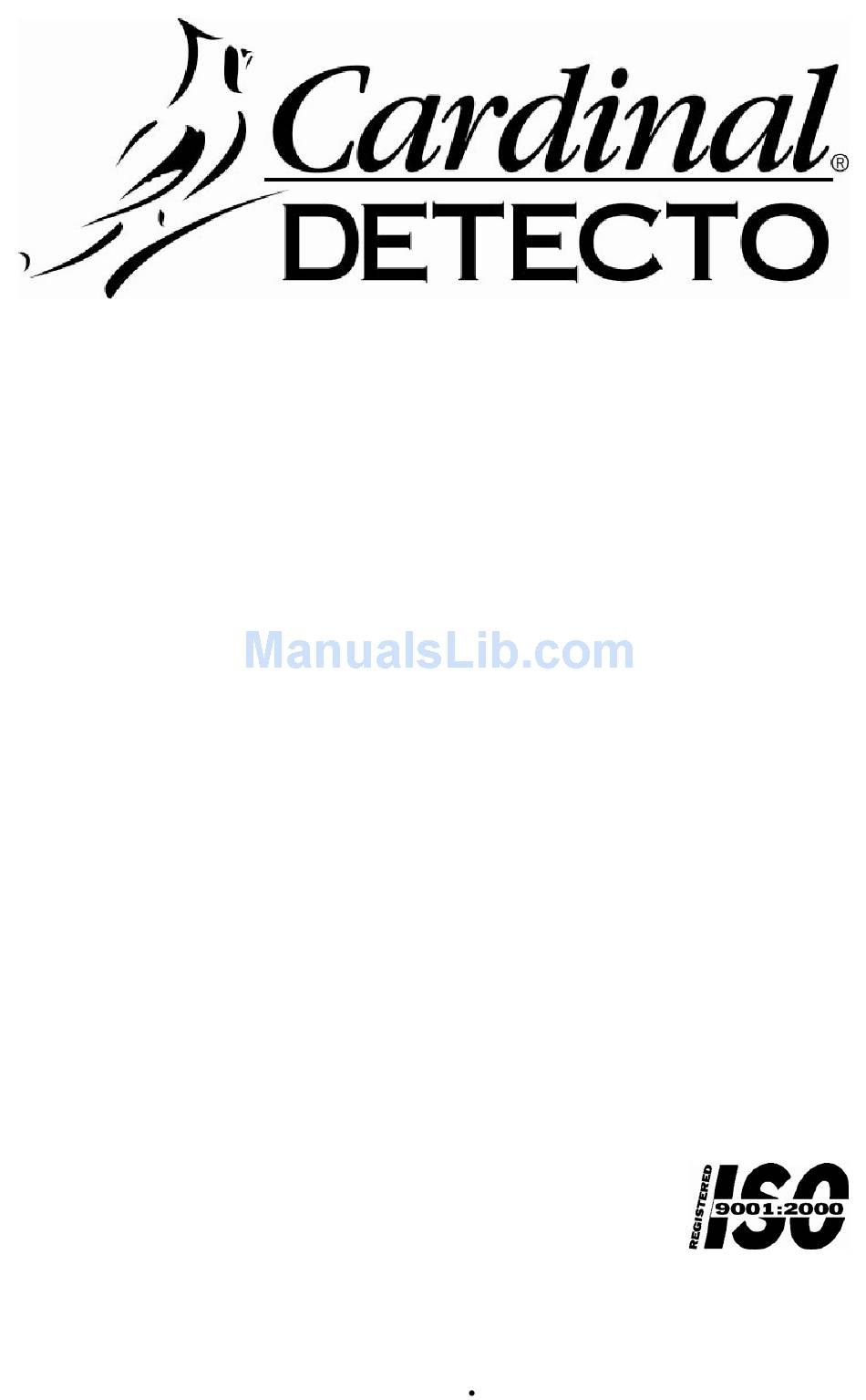

Waist-High Stand-On Scale Models 6855, 6855KGEU 6856 & 6856KGEU Operating Instructions CARDINAL SCALE MFG. CO. PO BOX 151 • WEBB CITY, MO 64870 1930-M458-O1 Rev C Printed in USA PH (417) 673-4631 • FAX (417) 673-5001 04/09 Web Site - http://www.detectoscale.com... -
Page 3: Specifications
Power ..……………..6 “AA” size Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power supply (Cardinal part number 6800-1045). Keys ..………………... On/Off, Zero, Units, Lock/Release, BMI/Enter and 4 directional arrows Features …………….. - Page 4 This page intentionally left blank. 1930-M458-O1 Waist-High 685X Series Page 2...
-
Page 5: Unpacking Instructions
UNPACKING INSTRUCTIONS • Remove staples or cut along bottom of carton. Lift carton off pallet. • Check for any damage incurred in shipping. If scale has been damaged, place a claim with the carrier. It is the responsibility of the purchaser to file all claims for any damages or loss incurred during transit. -
Page 6: Indicator Installation
Alkaline batteries. Optional AC Power Supply To power the scale without batteries, connect the 12 VDC, 1 Amp power supply’s (Cardinal part number 6800-1045) connector into the power jack on lower back of indicator and then plug the power supply into the proper electrical outlet. - Page 7 INDICATOR INSTALLATION, CONT. Battery Installation/Replacement To install or remove the batteries, the following steps should be followed: 1. Remove indicator from scale or desk Push in and stand/wall mount bracket if used. lift here 2. Turn the indicator so that the display Battery is facing away from you.
-
Page 8: Operation
OPERATION DO NOT operate the keypad with pointed objects (pencils, pens, etc). Damage to keypad resulting from this practice is NOT covered under warranty. To Weigh 1. Set scale on any hard, level, flat surface or low-cut carpet. 2. Press ON / OFF key to turn on indicator. -
Page 9: Height Rod Instructions
HEIGHT ROD INSTRUCTIONS Height Rod Hole Location • Please check Height Rod hole locations before installing Height Rod. • Some models may require holes to be drilled. • Please follow the measurements for drilling holes if necessary. • After holes have been drilled, please #29 (.136) follow installation instructions. -
Page 10: Part Identification
PART IDENTIFICATION Indicator Alternate Mounting Configuration 1930-M458-O1 Waist-High 685X Series Page 8... - Page 11 PART IDENTIFICATION, CONT. 1930-M458-O1 Waist-High 685X Series Page 9...
- Page 12 PART IDENTIFICATION, CONT. 1930-M458-O1 Waist-High 685X Series Page 10...
- Page 13 PART IDENTIFICATION, CONT. ITEM PART DESCRIPTION 6855 6856 NUMBER 1930-D330-0A WEIGHBRIDGE ASSY 1930-D445-OA WEIGHBRIDGE ASSY (6856) 1930-C338-08 MAT W/ADHESIVE 1930-C452-08 MAT W/ADHESIVE (6856) 6007-0034 HEX HEAD SCREW 5/16-18 UNC-2A X 3/4” 6024-0050 LOCK WASHER 5/16” 6013-0275 HEX NUT 5/16-18 UNC-2B 1930-C143-0A HANDRAIL ASSEMBLY 1930-C450-0A...
-
Page 14: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of one (1) year from date of shipment. - Page 15 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or have had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
- Page 16 1930-M458-O1 Waist-High 685X Series Page 14...
