- Page 1 MODEL 6730 BABY SCALE OPERATION MANUAL CARDINAL SCALE MFG. CO. 8535-M023-O1 Rev H PO Box 151 Webb City, MO 64870 03/06 Printed in USA Ph: 417-673-4631 Fax: 417-673-5001 www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com...
-
Page 3: Table Of Contents

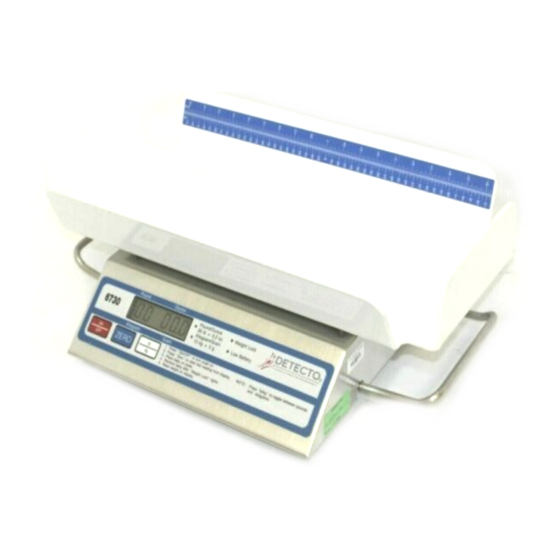

INTRODUCTION TABLE OF CONTENTS The Model 6730 Baby Scale is a 30 pound capacity, Quick Start............2 battery-operated baby scale housed in a stainless Installation ............2 steel enclosure. The scale is equipped with a Operation............4 removable baby tray and a color coded membrane Printer Output .......... -
Page 4: Quick Start
ON/OFF key to turn it off. INSTALLATION Begin the installation by removing your new Model 6730 Baby Scale from the shipping carton. Examine the scale and baby tray for any damage that may have taken place during shipment. If you find evidence of shipping damage, the shipping company should be contacted at once. - Page 5 Figure No. 2 INSTALL Baby Tray REMOVE Installation Lock Unlock Tray Mounting Lugs (4) The scale is shipped configured for the use of eight (8) “D” size alkaline batteries but, if the setup is changed, it can use eight (8) “D” sized Ni-Cad batteries. Refer to Appendix A for information on set- ting up the scale to use Ni-Cad batteries.
-
Page 6: Operation
OPERATION The following steps describe the operation of the Model 6730 Baby Scale. Note that a set of condensed instructions appear on the face of the scale as well. -
Page 7: Printer Output
PRINTER OUTPUT The Model 6730 Baby Scale includes a serial output connector for use with a printer. The output connector is located on the rear panel (see Figure No. 5). When the weight display is locked on the baby’s weight and the Weight Lock light is turned on, weight data is transmitted automatically to an optional printer. -
Page 8: Maintenance
MAINTENANCE The Model 6730 Baby Scale contains no user-serviceable parts and scale maintenance should be limited to an occasional cleaning and battery replacement as required. When cleaning the scale, use only a damp cloth and, if necessary, a mild detergent. The baby tray may be removed from the scale and cleaned separately if desired. -
Page 9: Appendix A Battery Type Selection
Step 2 Locate and remove the battery jumper access plug. Refer to Figure No. 6 for the location of this plug. NOTE! There are two access plugs on the bottom of the Model 6730. One is the battery jumper access and the other is the calibration jumper access. Please make sure you remove the correct access plug. - Page 10 APPENDIX B PARTS LIST Item Part No. Description 6021-1496 Socket Head Cap Screw, 1/4”-28 x .75” 6680-1039 Weighbridge Spacer 8535-C016-08 Latch 6021-0624 Pan Head Machine Screw, #6-32 x .75” 6022-0025 Extension Spring 6024-0011 #6 Star Washer 6013-0039 Hex Nut #6-32 6021-0987 Pan Head Machine Screw, #10-32 x .75”...
-
Page 11: Parts Identification
Figure No. 9 Parts Identification... - Page 12 Technical Support: Ph: 866-254-8261 techsupport@cardet.com...
