Rolling Chair Scale
Models 6880 & 6880KGEU
Operating Instructions
CARDINAL SCALE MFG. CO.
0064-M020-O1 Rev C
Printed in USA
PO BOX 151 WEBB CITY, MO 64870
09/09
PH (417) 673-4631 FAX (417) 673-5001
www.detectoscale.com
Technical Support: Ph: 866-254-8261 techsupport@cardet.com
Page 1
0064-M020-O1 6880 & 6880KGEU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Detecto 6880 and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal Detecto 6880

Summary of Contents for Cardinal Detecto 6880

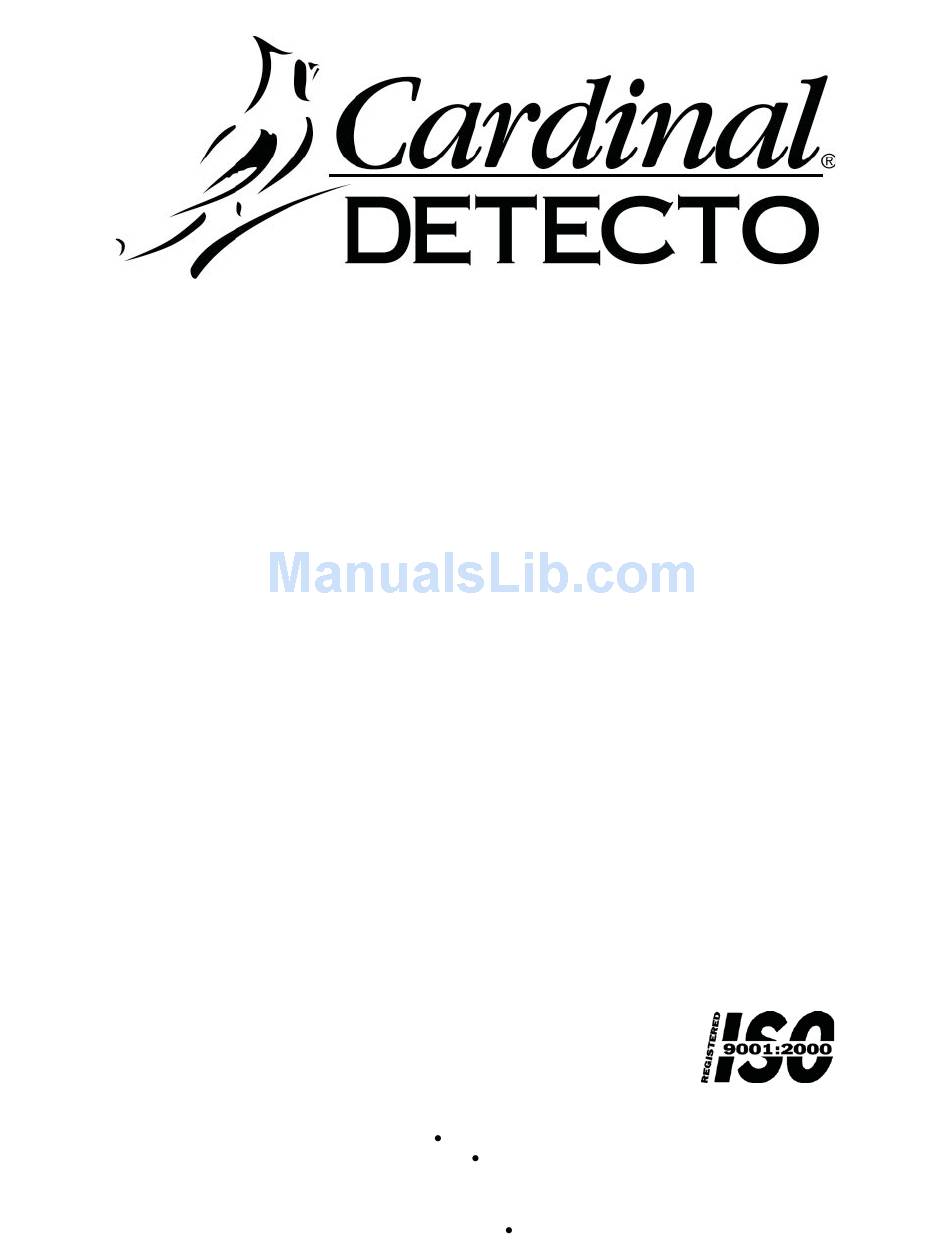

  • Page 1 Rolling Chair Scale Models 6880 & 6880KGEU Operating Instructions CARDINAL SCALE MFG. CO. 0064-M020-O1 Rev C Printed in USA PO BOX 151 WEBB CITY, MO 64870 09/09 PH (417) 673-4631 FAX (417) 673-5001 www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com Page 1...
