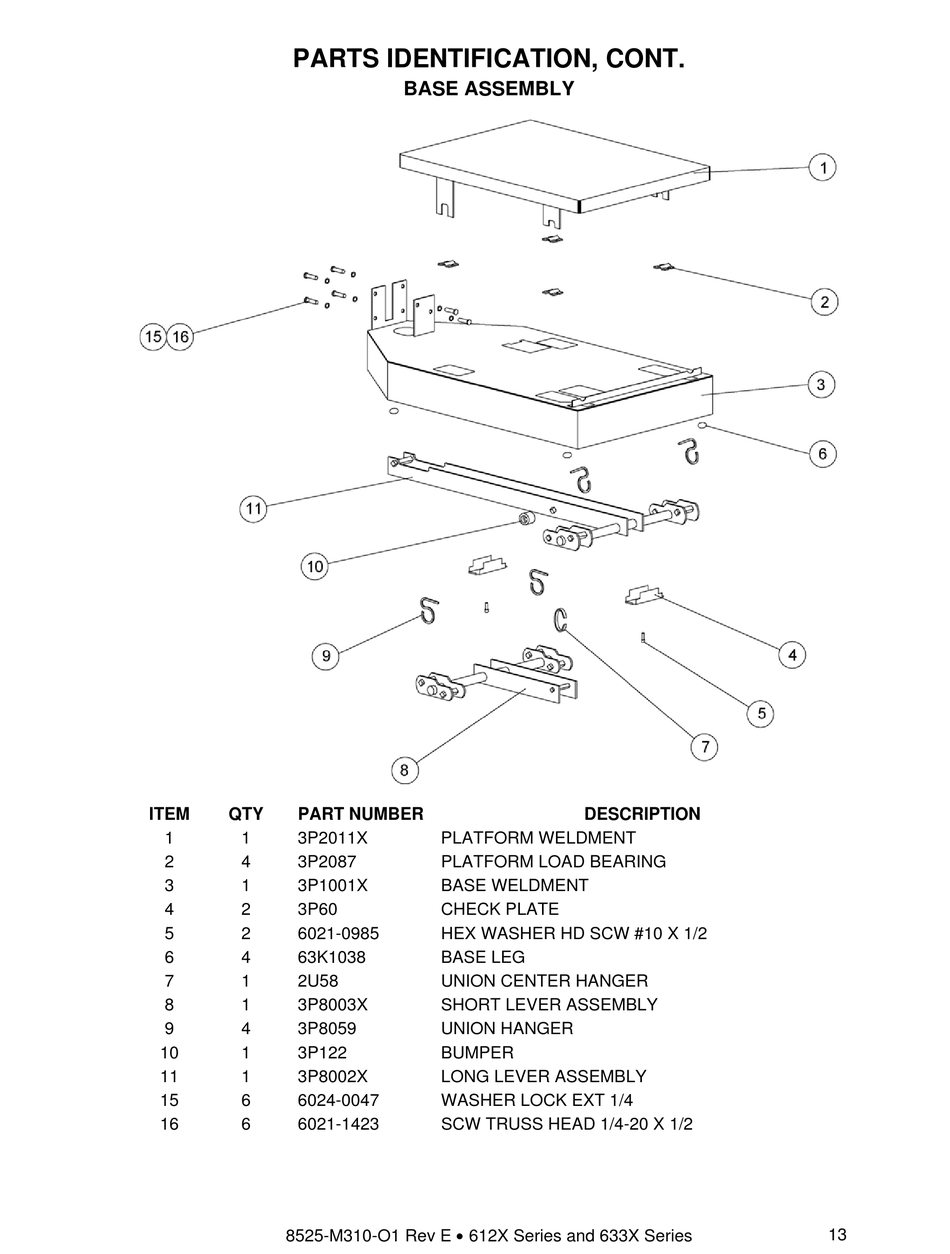

PARTS IDENTIFICATION, CONT.
ITEM QTY PART NUMBER
1 1 3P2011X
2 4 3P2087
3 1 3P1001X
4 2 3P60
5 2 6021-0985
6 4 63K1038
7 1 2U58
8 1 3P8003X
9 4 3P8059
10 1 3P122
11 1 3P8002X
15 6 6024-0047
16 6 6021-1423
8525-M310-O1 Rev E  612X Series and 633X Series

BASE ASSEMBLY

PLATFORM WELDMENT
PLATFORM LOAD BEARING
BASE WELDMENT
CHECK PLATE
HEX WASHER HD SCW #10 X 1/2
BASE LEG
UNION CENTER HANGER
SHORT LEVER ASSEMBLY
UNION HANGER
BUMPER
LONG LEVER ASSEMBLY
WASHER LOCK EXT 1/4
SCW TRUSS HEAD 1/4-20 X 1/2
DESCRIPTION
13
