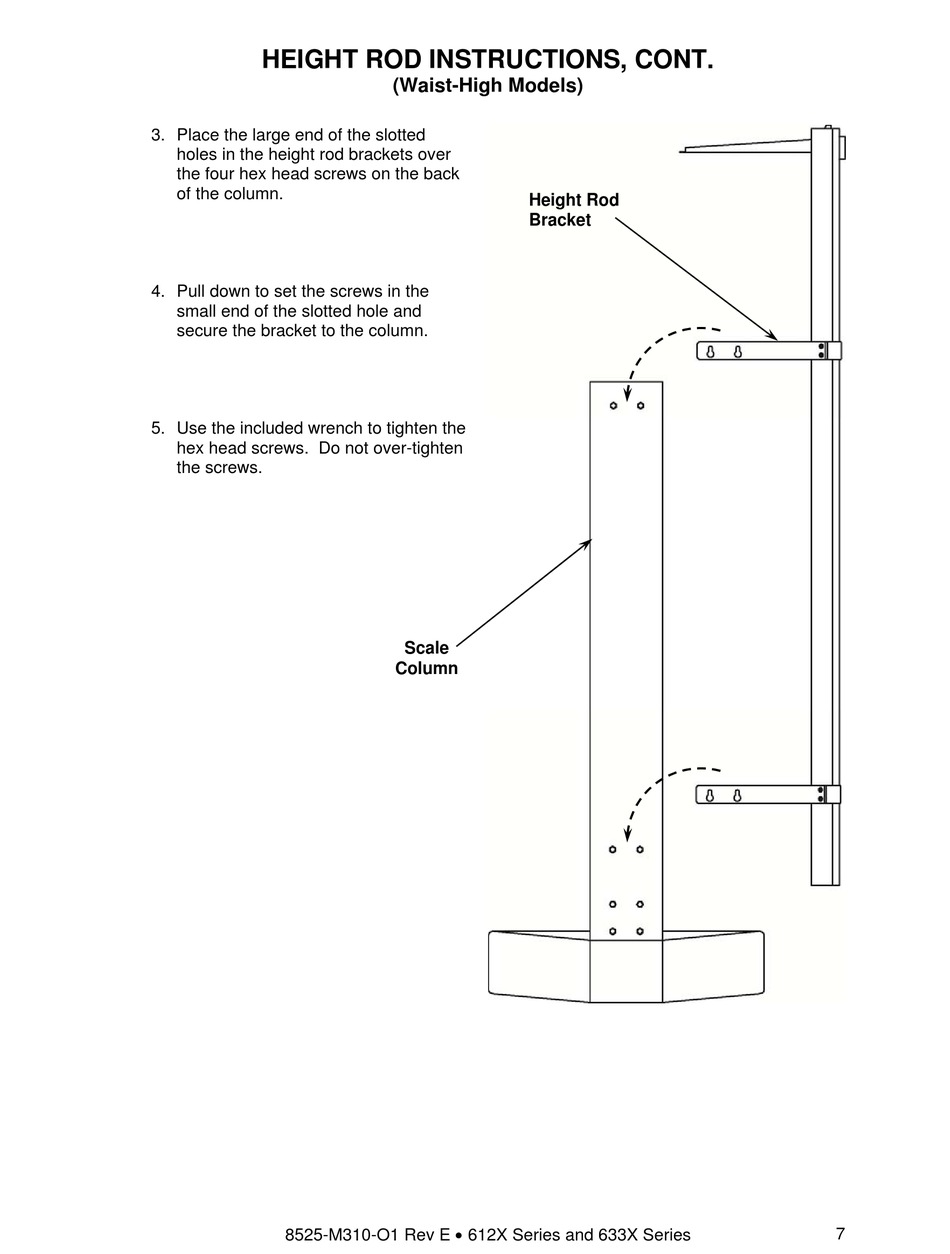

HEIGHT ROD INSTRUCTIONS, CONT.
3. Place the large end of the slotted
holes in the height rod brackets over
the four hex head screws on the back
of the column.
4. Pull down to set the screws in the
small end of the slotted hole and
secure the bracket to the column.
5. Use the included wrench to tighten the
hex head screws. Do not over-tighten
the screws.
8525-M310-O1 Rev E  612X Series and 633X Series
(Waist-High Models)
Height Rod
Bracket
Scale
Column
7
