Base Assembly; Parts List - Cardinal Detecto Owner's Manual

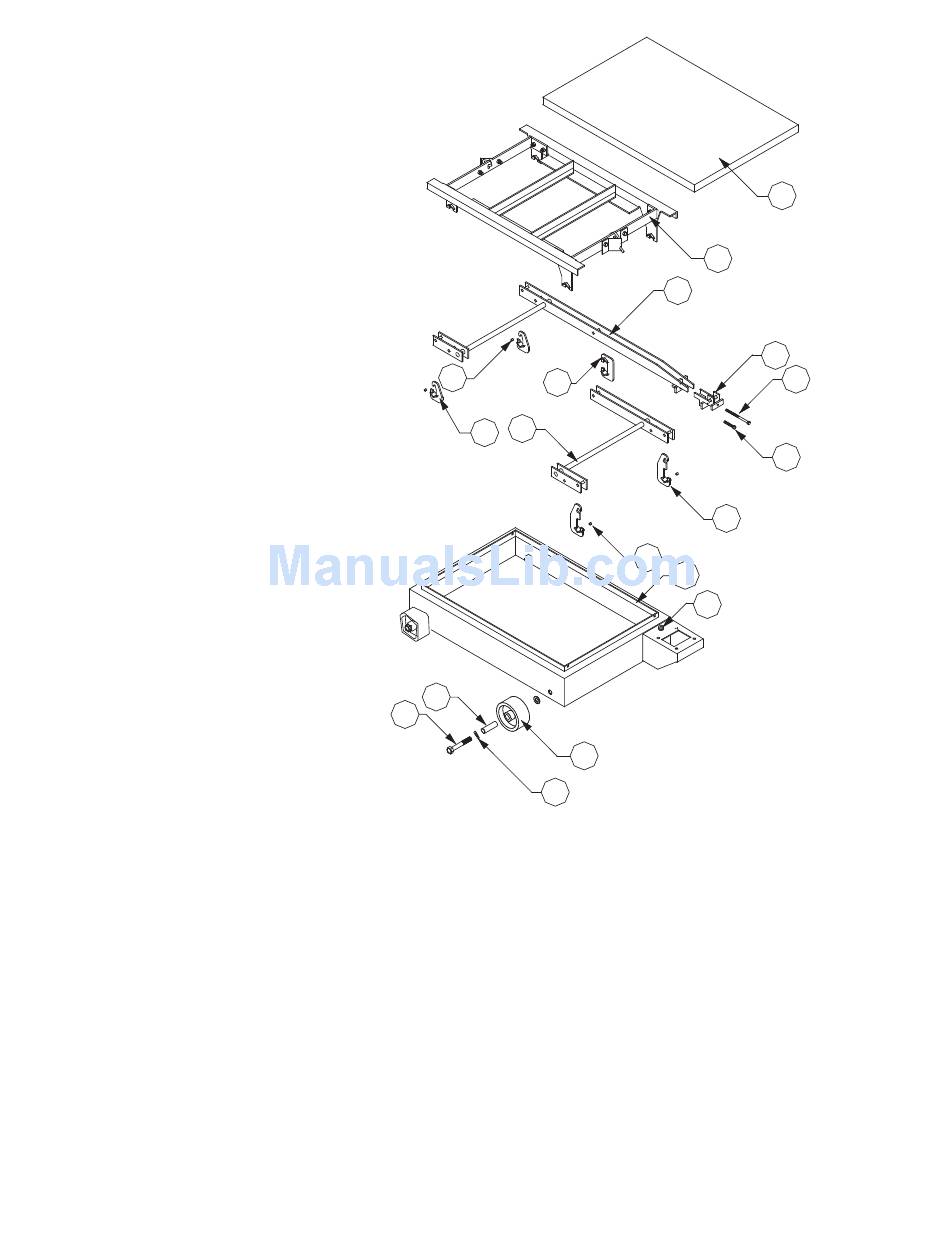

Figure No. 4
Scale Base and Parts
Diagram
Models 585XF and
885XF
Item No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

BASE ASSEMBLY

8
6
15
14

Parts List

585XF and 885XF
Series Part No. Part Name
0066-C017-08 Deck Plate
0066-D012-0A Weighbridge Assembly
0066-D006-0A Long Lever Assembly
0066-D007-0A Short Lever Assembly
0066-B004-0A Long Hanger Assembly
0066-B005-0A Short Hanger Assembly
0066-B008-0A Center Hanger Assembly
0066-B003-08 Bearing
0066-B010-0A Nose Iron Assembly
6021-1458 5/16 -18UNC x 1 3/4" Hex head Bolt
6021-1833 5/16 -18UNC x 4" Hex head Bolt
0066-D002-0A Base Weldment
0066-B199-08 5" Rubber Wheel
6007-0240 5/8 -11 x 3 1/2" Hex head Bolt
0066-B200-0A Sleeve
6024-0015 5/8 Flat Washer
6690-0001 Bulls-eye Level
5
3
7
4
8
12
17
13
16
Quantity
1
2
9
11
10
5
1
1
1
1
2
2
1
4
1
1
1
1
4
4
4
8
1
