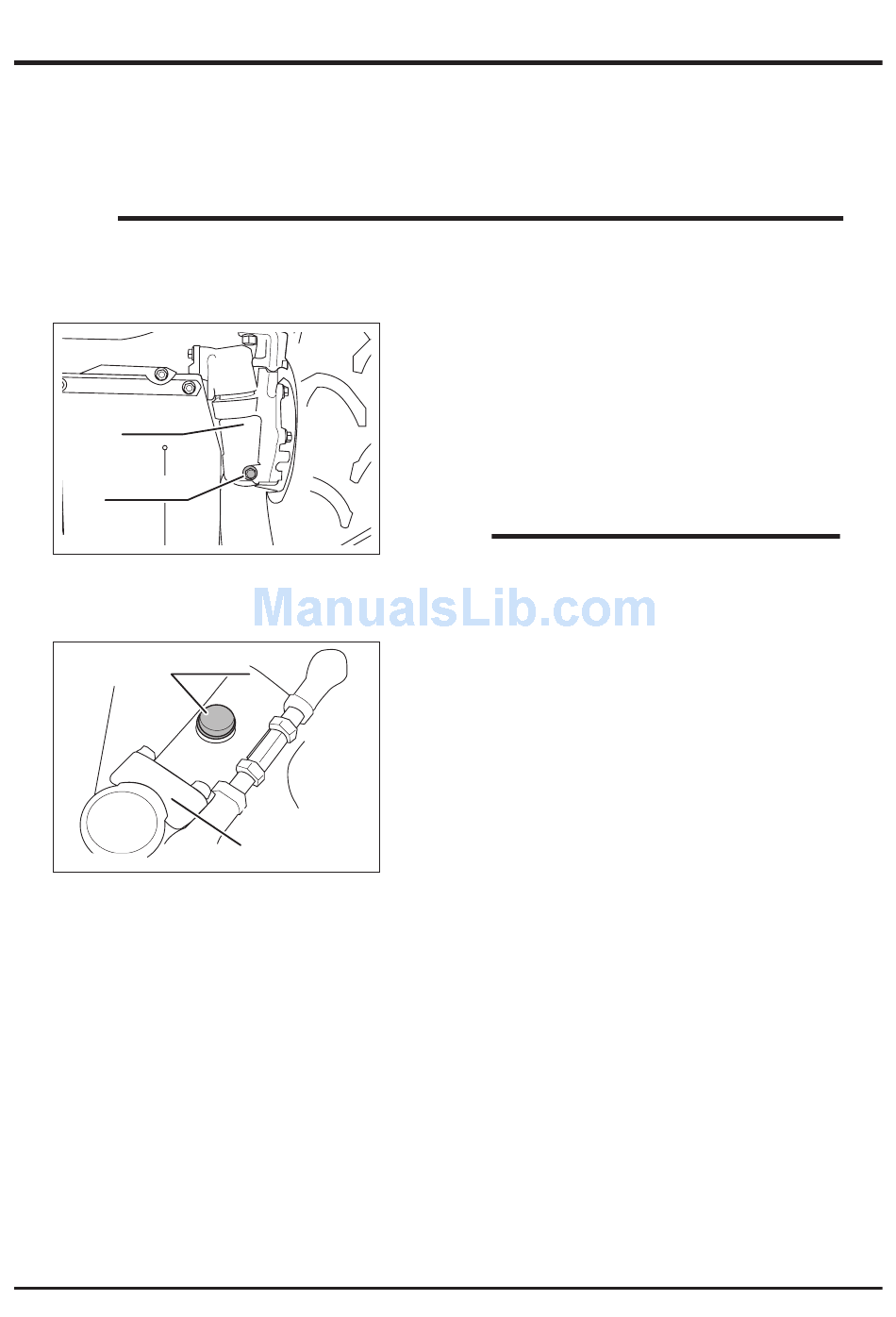

Front Axle Oil

NOTE
• Oil to Use: Page 44.
• Oil Capacity: Page 44.
Knuckle
Drain Plug
5332M-0507-100E
Filler Plug
5332M-0507-090E
Maintenance
Front Wheel
Axle (Right)
1.
Park machine on a level ground.
2.
Have an appropriate oil drain pan.
3.
Remove drain plug on the left front knuckle
to drain oil.
4.
Remove drain plug on the right front knucle
to drain oil as well.
NOTE
• Drain plug for the right front knucle is on
back side of the front axle.
5.
Install both drain plugs back in place.
6.
Remove right front step.
7.
Remove oil filler cap.
8.
Fill specified amount of oil into filler.
9.
Install filler plug back in place.
10. Install right front step.
-59-
