Flat Face
5332M-0508-050E
Mounting Pin
5332M-0508-060E
NOTE
• Always put thick gloves on and be cautious when handling blade because both
edges of rotor stay can get sharp by wear.
• Wear Limit: See page 64
• If it is difficult to remove blade, use 24mm spanner to remove
Spanner
Blade Pin
5332M-0508-070E
Maintenance
Mounting Slot
Flat Face
Blade

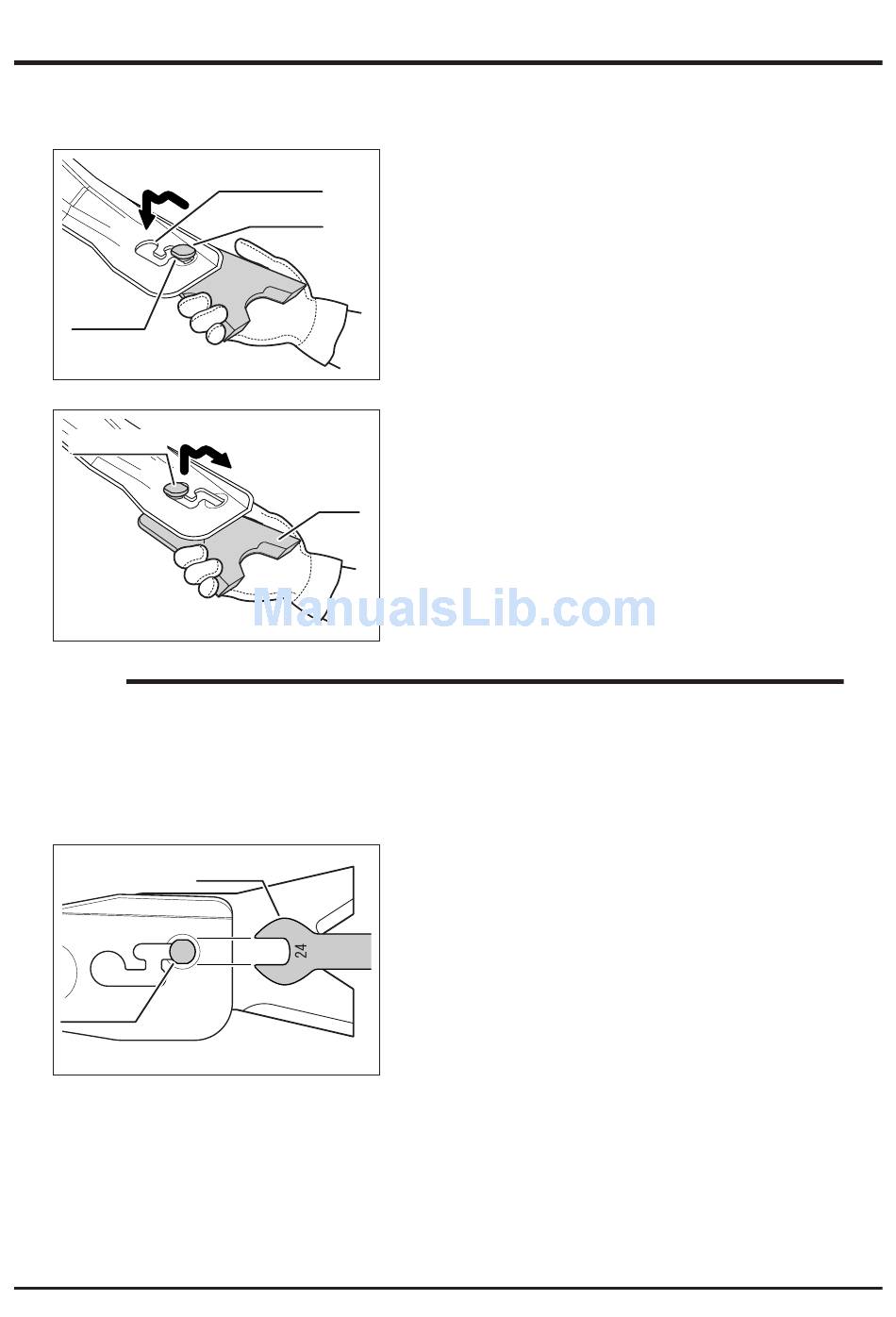

Replacing
1.
Open cutting blade shield.
2.
Noting the direction of the flat faces on
mounting pin, shift blade along mounting slot
to remove blade.
3.
Install new mounting pin and wave washer
to blade and shift blade along mounting slot,
noting the direction of the flat faces.
-65-
5
