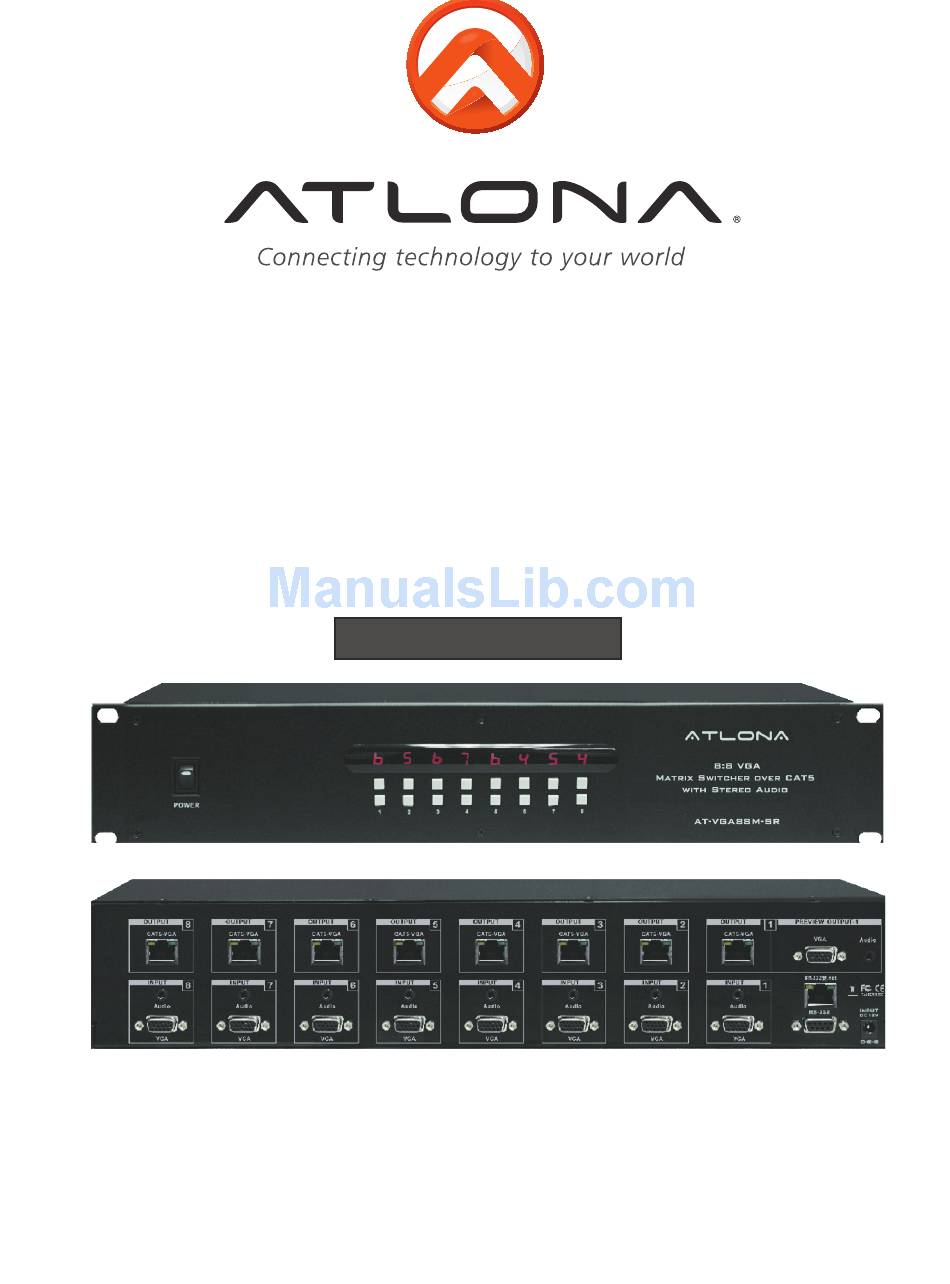

- Page 1 8x8 VGA Matrix Switcher over CAT5 with Stereo Audio AT-VGA88M-SR User Manual...
-
Page 2: Table Of Contents
..........6. Remote Control ..........7. RS-232 Protocol Commands ..........7.1. Power Off Mode ..........7.2. Front Panel Lock ..........7.3. Unit Reset ..........8. Connection Diagram ..........9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration .......... -
Page 3: Introduction
INTRODUCTION Atlona Technologies’ AT-VGA88M-SR is one of the most innovative VGA Matrix Switchers with Stereo Audio on the market. The AT-VGA88M-SR has 8 individual VGA (RGBHV) inputs with Stereo Audio and 8 individual CAT5 outputs. matrix switch any input to any outpu . This unit is ideal for... -
Page 4: Specification
SPECIFICATIONS: Type of Switcher 8 inputs to 8 outputs, VGA (RGBHV) with Stereo Audio Matrix Switcher Input ports VGA (RGBHV) 1x HD-15p VGA Female connector Output Ports Stereo Audio, 1x 3.5mm Female Jack CAT5 VGA (RGBHV) & Audio 1x RJ45 CAT5 connector Video Bandwidth 325MHz (-3db), 200mVp-p Video Supported... -
Page 5: Panel Descriptions

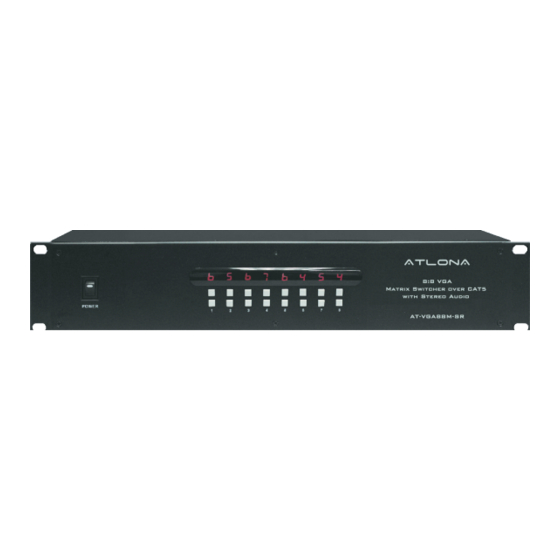

PANEL DESCRIPTION 1. Front Panel switcher is powered ON INPUT LED DISPLAY: Input channel readout matches numbered outputs marked directly below. Input SET BUTTONS: Sets selected source. 6. 19 INCH RACK MOUNT BRACKETS: 19 inch 2U 2. Rear Panel 1.DC POWER INPUT. Power Jack: DC Jack - inner OD O 2.1mm (+ ) Outside OD O 5.5mm (GND) - Page 6 2. PREVIEW OUTPUT #1 VGA (RGBHV) Via 1x HD-15p connectors Preview Output #1 VGA & Audio local monitoring. Stereo Audio thru 1x 3.5mm port. 4. RS232 Connection. DB-9pin Female connector RS 232 control port to allow for interfacing to a PC, Such as a computer or touch panel control, to the switcher via this DB-9pin Female connector for serial RS-232 control.
-
Page 7: Remote Control
REMOTE CONTROL IR CODES : POWER ON : 00FF 04FB POWER OFF : 00FF 05FA INPUT#1 / OUTPUT#1 : 01FE 31CE INPUT#1 / OUTPUT#2 : 01FE 32CD INPUT#1 / OUTPUT#3 : 01FE 33CC INPUT#1 / OUTPUT#4 : 01FE 34CB INPUT#1 / OUTPUT#5 : 01FE 35CA INPUT#1 / OUTPUT#6 : 01FE 36C9 INPUT#1 / OUTPUT#7 : 01FE 37C8 INPUT#1 / OUTPUT#8 : 01FE 38C7... -
Page 8: Power Off Mode
1.2. SWITCH POWER ON or OFF. Controller with a separate power ON and OFF 3. INPUTS 1-8 : VGA DISPLAYS INPUT SELECTION Input - 1 : CAT5 connect to VGA+Audio Display / Monitor Input - 2 : CAT5 connect to VGA+Audio Display / Monitor Input - 3 : CAT5 connect to VGA+Audio Display / Monitor Input - 4 : CAT5 connect to VGA+Audio Display / Monitor Input - 5 : CAT5 connect to VGA+Audio Display / Monitor... -
Page 9: Rs-232 Protocol Commands
RS-232 PROTOCOL COMMANDS Baud Rate : 9600 bps, Data Bit :8 bits, Parity : None, Stop Bit :1 bit Each command is terminated with a Carriage Return • Each feedback is terminated with a Carriage Return • Code entry is CASE SENSITIVE. •... -
Page 10: Connection Diagram
CONNECTION DIAGRAM Monitor 8 Monitor 3 Monitor 1 receiver #8 receiver #3 receiver #1 PC RS232 Control PC 8 PC 6 PC 4 PC 2 PC 7 PC 5 PC 3 PC 1... -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 13: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
