Page 1 4K/UHD, 8x2 Multi-Format Matrix Switcher with Dual, HDBaseT and Mirrored HDMI Outputs AT-UHD-CLSO-824 User Manual Please check http://www.atlona.com/ AT-UHD-CLSO-824 for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 2: Table Of Contents
..................23-27 16. Connection & Installation ..................28 14. Control Drivers ..................28 15. CLSO-824 Updates ..................28 17. Specifications ..................29 18. Safety ..................30 19. Warranty ..................31-32 20. Registration ..................32 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 3: Introduction

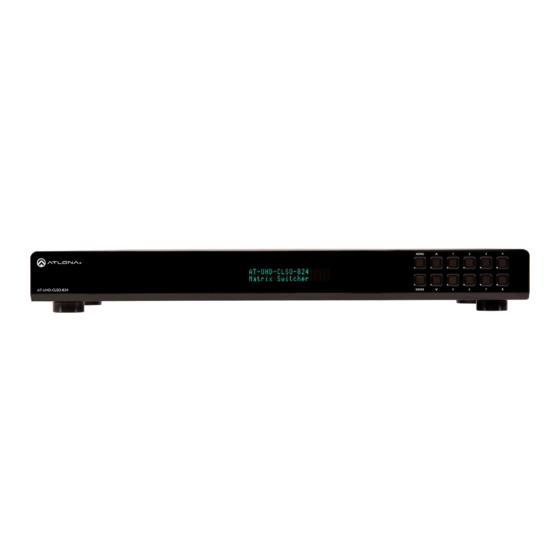

Introduction The Atlona AT-UHD-CLSO-824 is an 8x2, 4K/UHD matrix switcher with multi-format signal- handling, Ethernet-enabled, 100M HDBaseT™ input/output extension, and advanced audio capabilities. Package Contents • 1 x AT-UHD-CLSO-824 • 13 x Female Captive Screw Connectors 6 pin: audio (x3), MIC/Line (x2), RS-232 (x5) - 5 pin: IR (x1) - 3 pin: RS-232 (x1) - 2 pin: power (x1) •...
Page 4: Panel Description
Panel Description Front Panel MENU AT-UHD-CLSO-824 ENTER MASTER LINE LINE RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX PWRIR RX TX RS-232 MIC/LINE IN AUDIO IN RS-232 AUDIO OUT AUDIO OUT RS-232 1.
Page 5: Category Cable
Using the wrong size of connectors may result in interference or loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 6: Analog Multi-Format Inputs
HD-15 to 5 BNC breakout cable or with a (VGA) VGA - 3 RCA adaptor. A common application for this type of input would be to connect a RGBHV matrix switcher to the CLSO-824. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 7: Audio Connections
Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 8: Microphone
(or other sources) level outputs using this setting. Either balanced, unbalanced, LINE LINE LINE LINE mono, or two channel Unbalanced Unbalanced Balanced Balanced connections may be used. LINE LINE Mono Unbalanced Mono Balanced Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 9: Front Panel Display
Audio ducking, delay and EQ adjust audio settings of HDMI, HDBaseT, and analog audio outputs. Audio mono adjusts analog audio outputs only. These settings and adjustments to not change pass-through multichannel PCM, Dolby and DTS signals. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 10 DSP FW ver: VX.X X.X.X.X NetMask X.X.X.X Gateway X.X.X.X TCP/IP port Console XXXXX, X, X, X EDID settings can be set for the HDMI and HDBaseT ports. Prefer Timing can be set to the VGA port only. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 11: Tcp/Ip And Gui
TCP/IP and WebGUI Setup Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the CLSO-824. To begin, connect the LAN port of the CLSO-824 to your network. Type the IP address of the CLSO-...
Page 12 The information is very useful when trouble-shooting your installation. It includes information on the switcher, connect sources, and outputs. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 13 If your control system supports password protection, set the login mode to on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 14 Note: RGBHV can be used when VGA is selected Factory Default Select to reset CLSO back to factory settings. Note: This will reset the switcher to factory default, including: resolutions, audio settings, HDCP settings, etc. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 15 Note: User information will display for the admin only. Note: Only the admin password can be changed. The admin username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 16 Note: When HDCP reporting is non-compliant, only user created content is transmitted. Protected content from all sources (e.g. Blu-ray, AppleTV, etc.) is blocked. Note: These functions are also controllable using TCP/IP or RS-232 commands. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 17 1. Output 2 adjusts the audio level of the embedded audio on HDBaseT output2, HDMI output 2, and analog output 2. Sub Volume Volume control for each input and the Aux inputs. These are typically used to match (MIC/48V/Line) audio levels from all sources. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 18 Audio output 2 configuration follows the same configuration as output 1 except for in source Source - Auto Follow Video , Auto Follow Other Video (HDMI/HDBaseT OUT 2) (HDMI/HDBaseT OUT 1) Aux 1 , Aux 2 (MIC/Line IN 1) (Mic/Line IN 2) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 19 The further right the slider is, the more sensitive the setting. 7. Set program decrease to ensure when ducking is triggered the program level is low enough the speaker can be heard. Fine tuning these settings will help achieve the best results. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 20 Using the programming language of your control system, you can now use that string to trigger a macro with the actions your system design requires. Typical macros could turn on the display or be used as a “show me” button. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 21 The update page provides an easy way to update switcher firmware. Download the most current firmware from http://atlona.com/AT-UHD-CLSO-824/. Once the firmware is saved on the computer use the browse button to select the correct file. Press the update button and a progress bar will display. If a restart of the CLSO-824 is required, the WebGUI will display a prompt.
Page 22 System IR is typically used to connect to control system processors. This input is used to control the CLSO-824. Note: The IR receiver is optional for the UHD-CLSO-824. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differentiate the pin outs. Signal (S) Ground ( ) The included IR emitter has two wires: signal and ground.
Page 23: Rs-232
Bits per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any terminal program may be used to control the CLSO-824 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 24: Rs-232
Puts unit into standby PWSTA Will display power status VersionX X.X.XX Displays the current firmware version X = MCU, FPGA, OSD, or DSP Type AT-UHD-CLSO-824 Displays unit model number Lock Lock Disables front panel buttons Unlock Unlock Enables front panel buttons...
Page 25 1080P 3D 2CH 1080P DVI 1280x800 RGB 2CH 1280x800 RGB DVI 1366x768 RGB 2CH 1024x768 RGB 2CH 720P DD 720P 2CH 800x600 RGB 2CH Prefered Timings - Default 1920x1200 1920x1080 1280x800 1366x768 1024x768 1280x720 800x600 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 26 Set lip sync time of output (x) to a specific level (yy) e.g. LipOut2 10 e.g. LipOut2 10 e.g. Set output 2 lip sync to 10 EQ band - <120Hz 500Hz 1.2 kHz 3 kHz 7.5 kHz Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 27 Add a user for TCP/IP control. X=User Y=Password Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password) IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP Ex. IPDHCP on...
Page 28: Connection & Installation
Visit the Firmware Update tab at http://www.atlona.com/UHD-CLSO-824 to download the current updates. Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system.
Page 29: Specifications
1.73 x 17.08 x 10.04 (inch) w/feet 55.15 x 433.8 x 255 (mm) 2.17 x 17.08 x 10.04 (inch) Rack Unit Weight Device 3.49 kg 7.69 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
Page 30: Safety
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
Page 31: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
Page 32: Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
