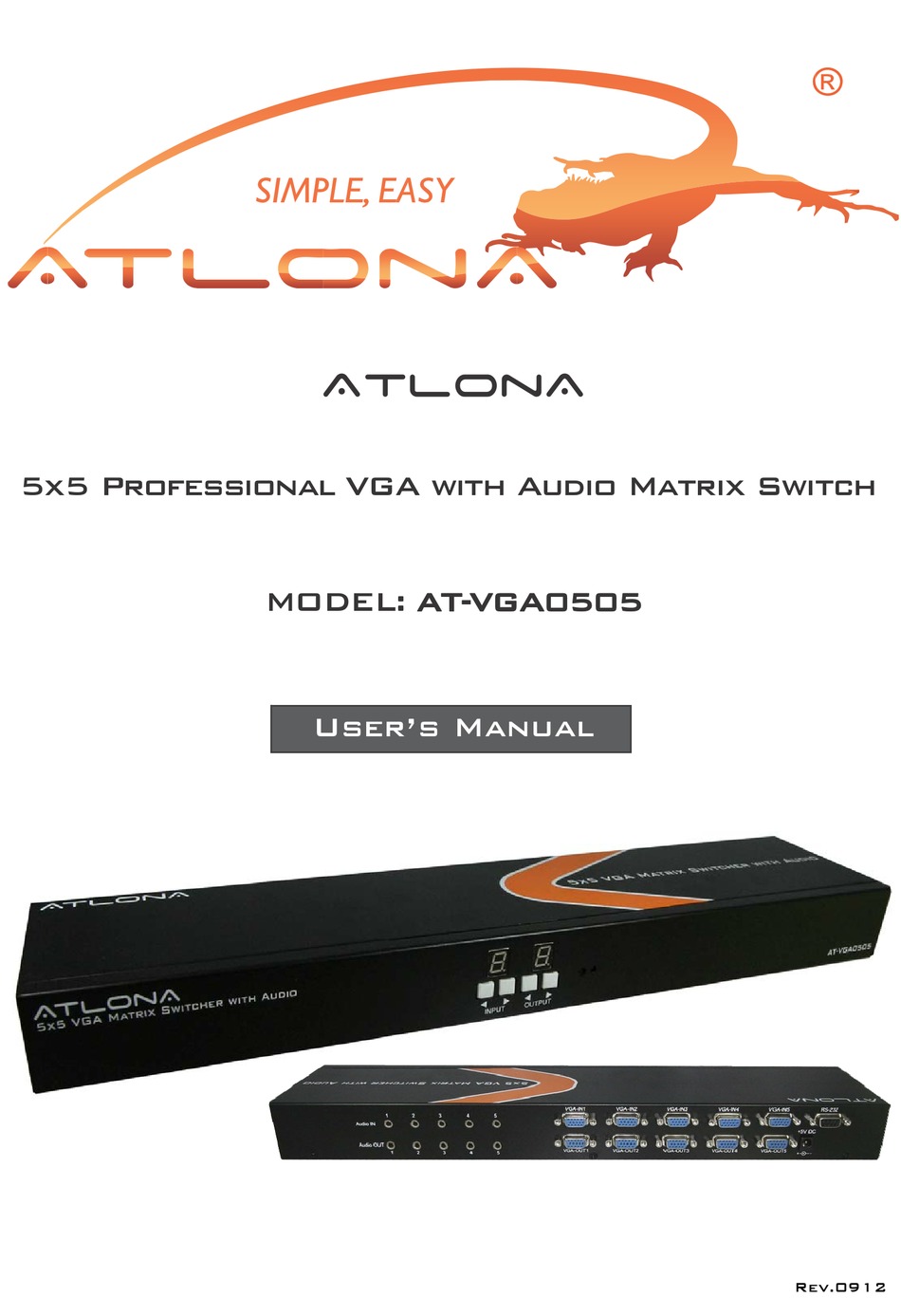

- Page 1 AtlonA 5x5 Professional VGA with Audio Matrix Switch MODEL: AT-VGA0505 User’s Manual Rev.0912...
-
Page 2: Table Of Contents
6. Channel Control ................ 5 6.1 Software Control ................ 5 6.2 ASCII Code Control ................ 7 6.3 IR Remote Control ................ 8 7. Installation ............... 10 8. Safety Information ............... 11 9. Warranty ............... 12 10. Atlona Product Registration ..............13... -
Page 3: Introduction
AT-VGA0505 is an 5 input 5 output commercial VGA with audio matrix switcher. The AT-VGA0505 is one of the world's advanced matrix switchers. It is capable of being controlled though RS-232 via software included or via a third party control system. Switcher is designed to handle any resolution up to 1920x1200 or 1080p without any signal degradation. -
Page 4: Specifications
SPECIFICATIONS Model Name AT-VGA0505 Technical Role of usage 5x5 true matrix switcher Supported input/output VGA / Component / S-video / Composite* Video bandwidth 400MHz Video support 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60] Transmission HD [720p/1080i] – 65m [210ft] Audio support... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel 1. SOURCE CHANNEL: Display of selected input source channel : press the button to select input source channel in descending sequence : press the button to select input source channel in ascending sequence : press the button to select output display channel in descending sequence : press the button to select output display channel in ascending sequence... -
Page 6: Rear Panel
Rear Panel Left Side Right Side 9. INPUT1 — INPUT5: Stereo audio input channels 10. OUTPUT1 — OUTPUT5: Stereo audio output channels 11. INPUT1 — INPUT5: Analog video input channels 12. OUTPUT1 — OUTPUT5: Analog video output channels 13. +5V DC: Connect to 5V DC power supply unit 14. -
Page 7: Channel Control
CHANNEL CONTROL Method A: Operation by Control Software via RS-232 serial port Scan This button will trigger the automatic search over all the available COM ports (1-255). If the matrix is detected, a successful message window will show up. Otherwise, an error message will show up (see below). - Page 8 Quick Setup Buttons — Provide fast channel setup for the matrix. Default Channel 1: Input channel 1 on all outputs Source Channel Display Channel Source Channel Display Channel Input 1 Output 1 Input 1 Output 1 Input 2 Output 2 Input 1 Output 2 Input 3...
-
Page 9: Ascii Code Control
Select the input channel to do bitmap and label change. Bitmap Path: Select the icon for each channel. Please notice that only pictures in BMP format are supported. Description: Channel description. Output Channel Selection Click on the Output Channel 1- Output Channel 5 buttons to select the output channel. Then a pop-up menu will show up on the selected output channel for you to choose the desired input channel. -
Page 10: Ir Remote Control
Method C: Operation via IR Remote Control with IR Discrete Code : Mapping CH1 to all 5 outputs : Decrease CH : Not in use : Mapping CH2 to all 5 outputs : Increase CH : Not in use : Mapping CH3 to all 5 outputs : Not in use : Change Input CH : Mapping CH4 to all 5 outputs... - Page 11 Method B: Assign input X to be displayed on output Y 1. Press first then use to select the input channel "X". 2. Once you see the LED displays the desired input channel "X" then press and then use to select the output channel "Y". 3.
-
Page 12: Installation
INSTALLATION... -
Page 13: Safety Information
Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-VGA0505. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not... -
Page 14: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 15: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
