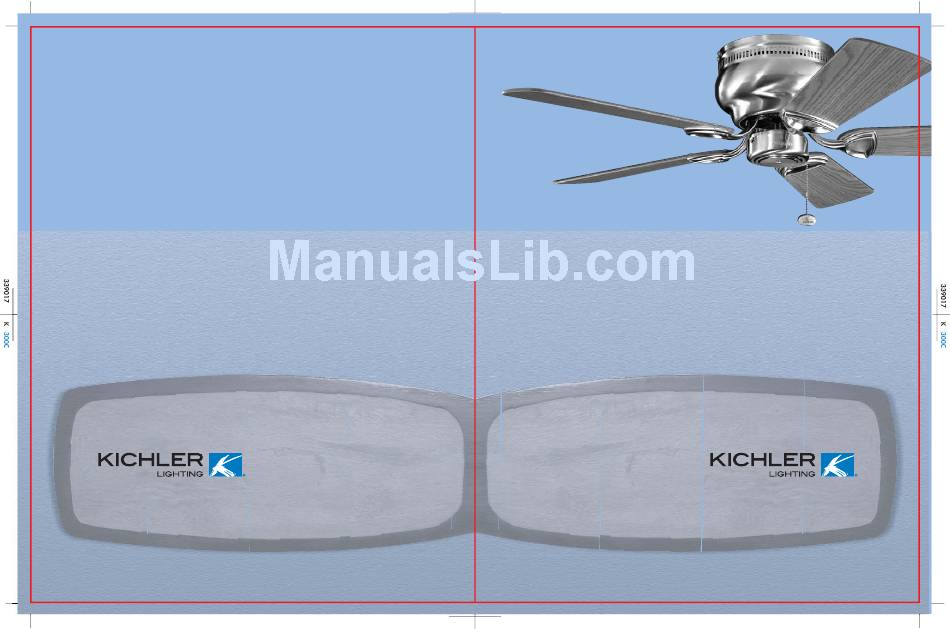

- Page 1 42" Stratmoor ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 3: Tools And Materials Required
42" Stratmoor 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mounting plate Motor and hanger bracket assembly Motor housing Set of 5 blade brackets and Pre-Installed... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
42" Stratmoor 5. HANGING THE FAN REMEMBER to turn off the power before you begin. CUL Listed electrial box To properly install your ceiling fan, follow the steps below. Ceiling mounting plate Step 1. Secure the ceiling mounting Plate to the ceiling outlet box using screws and Flat washers washers included with your outlet box. -
Page 6: Electrical Connections
6. ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock, Power lines 120v be sure you have turned off the power at the Green ground main circuit panel. Follow the steps below to connect the fan to Wiring your household wiring. Use the wire connecting nuts suppled with your fan. -
Page 7: Finishing The Installation
42" Stratmoor 7. FINISHING THE INSTALLATION Remove the four sets of nuts and washers located on the mounting plate threaded studs. Hang the motor assembly from the hook on Mounting Plate Washer the ceiling mounting plate by placing the hook threaded studs into a hole on the mounting plate. -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Place a blade on a blade bracket aliening the mounting holes on each. Start each set of mounting screws, washers and fiber pads into each hole. Screws Make sure the blade is straight on the blade Washers bracket and tighten each mounting screw until Fiber washers... -
Page 9: Installing The Switch Housing
42" Stratmoor 11. INSTALLING THE SWITCH HOUSING NOTE: Before continuing installation, confirm that the power is still turning off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock. - Page 10 12. OPERATING INSTRUCTIONS The pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off. The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse".
-
Page 11: Troubleshooting
42" Stratmoor 13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
