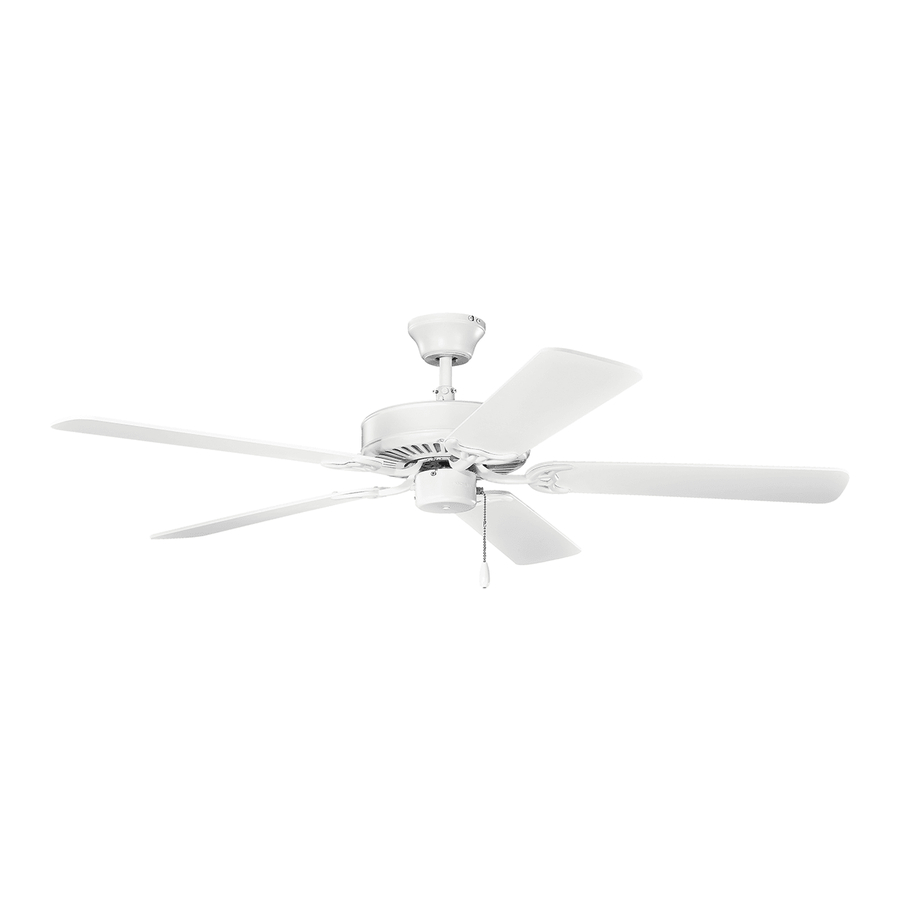

Summary of Contents for Kichler Lighting Basics 404

  • Page 1 Kichler Basics ™...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.

  • Page 3: Tools And Materials Required

    Kichler Basics 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mountung bracket Canopy Ball/downrod assembly Fan motor assembly...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure.

  • Page 5: Hanging The Fan

    Kichler Basics 5. HANGING THE FAN REMEMBER to turn off the power. Follow the CUL Listed electrial steps below to hang your fan properly. Washers Ceiling NOTE: This ceiling fan is supplied with two mounting bracket types of hanging assemblies; the standard Hook Mounting screws ceiling installation using the downrod with ball...
  • Page 6 CLOSE-TO-CEILING INSTALLATION Canopy Step 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger Canopy cover bracket as shown in Fig. 5. Fig. 8 Step 2. Remove the decorative canopy cover from the canopy by turning canopy cover counterclockwise.

  • Page 7: Electric Connections

    Kichler Basics 6. ELECTRIC CONNECTIONS WARNING: To avoid possible electrical Power lines 120v Green ground shock, be sure you have turned off the power at the main circuit panel. Follow the steps below to connect the fan to Wiring your household wiring. Use the wire connecting nuts suppled with your fan.
  • Page 8 7. FINISHING THE INSTALLATION Outlet box STANTARD CEILING INSTALLATION STANTARD CEILING INSTALLATION Screws Step 1. Tuck all the connections neatly into Ceiling mounting the ceiling outlet box. bracket Screws Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting bracket using 4 screws at the top edge of the Canopy mounting bracket.

  • Page 9: Attaching The Fan Blades

    Kichler Basics 8. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 14.
  • Page 10 9. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan as follows: 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.

  • Page 11: Troubleshooting

    Kichler Basics 10. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1.
