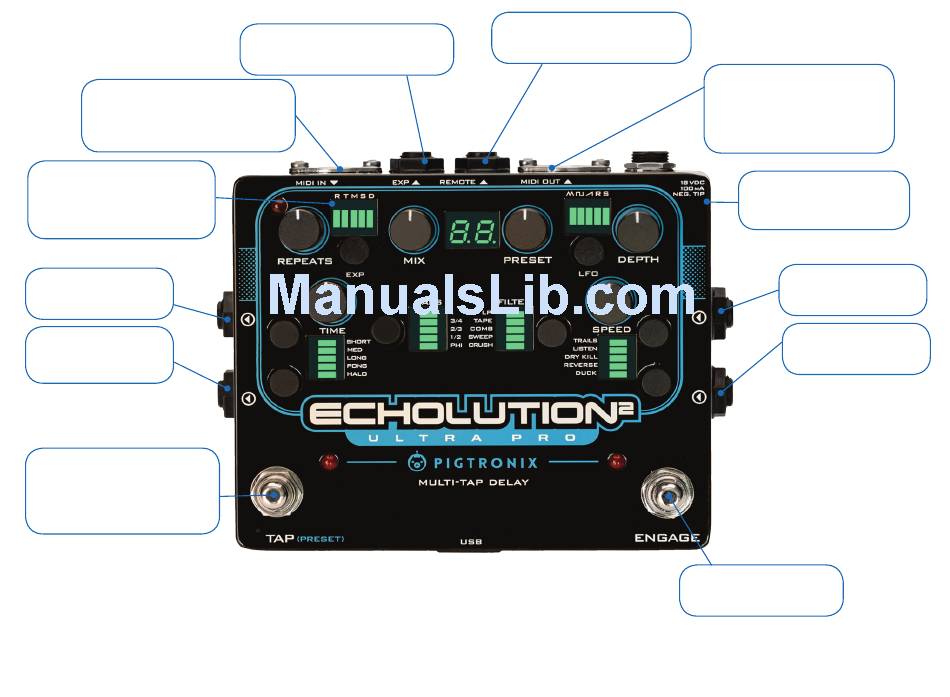

jacks and footswitchEs

MIDI IN
Accepts MIDI preset change, MIDI
CC inputs (see MIDI map) for all
functions as well as MIDI beat clock
to set the delay time.
MIDI LED
When a MIDI clock at the MIDI
IN jack is present, the red MIDI
LED in the upper left corner will
illuminate.
Output 1
Connect amplifier, mixer,
DAW here.
Output 2
Connect amplifier, mixer,
DAW here.
Note: When only one of the two
audio inputs is connected, that
single input will be processed in
stereo through both outputs
Tap TEMpO
Tap on this switch to set the delay
time. When a new delay time is
set by the Tap Tempo switch, it will
override the manual delay time knob.
PrEsEt sElEction
A LONG PRESS of the Tap Tempo switch enters
you have entered the PRESET SELECT
A SHORT PRESS on the tap tempo switch will move up one preset and a
PRESS will move down one preset. Once the desired preset is queued, pressing
the ENGAGE foot switch will activate it.
6 |
p i g t r o n i x . c o m
EXp
TRS expression pedal goes here. Use a
low-impedance foot controller.
PRESET SELECT mode. Once
mode, the green preset digit will blink.
LONG
REMOTE
E2R or compatible TRS momentary
remote switch goes here.
Note: The Engage footswitch is also used to load presets once you have loaded
PRESET SELECT mode. When the Engage footswitch is used to load a preset,
the bypass status of the effect will not change
E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e
jacks and footswitchEs
MIDI OUT
Sends out MIDI beat clock that
is eitherrelated to the delay time
or based on the signal present at
the MIDI IN jack along with MIDI
Thru signals.
power
18VDC (2.1mm neg. tip)
100mA or higher is required.
Input 1
Connect instrument here
Input 2
Connect instrument here
ENGaGE
Turns the effect on and off.
p i g t r o n i x . c o m
| 7
