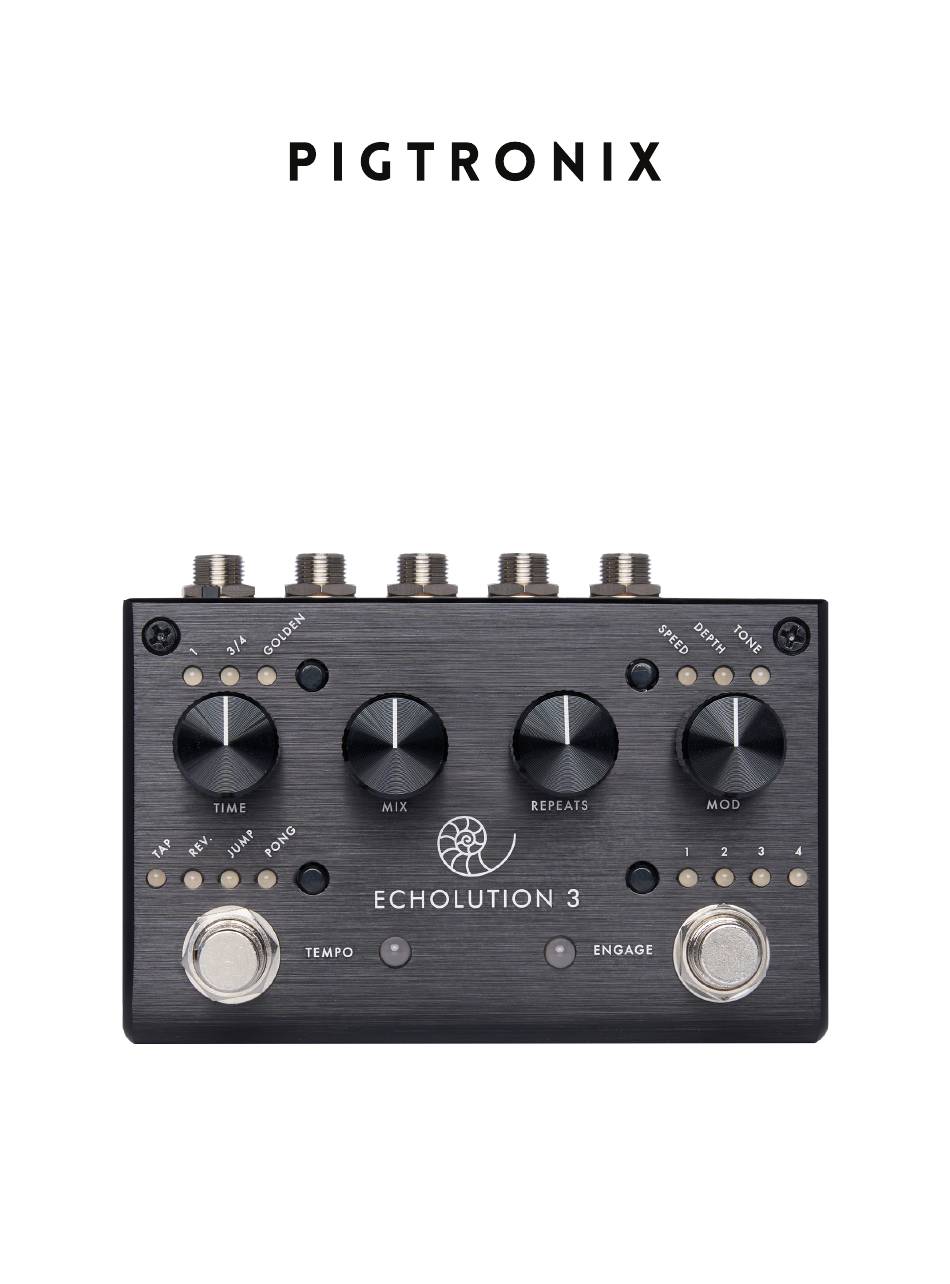

- Page 1 ECHOLUTION 3 User’s Guide All contents © Bond Audio LLC 2021...
- Page 2 CONTENTS Introduction Explanation of Controls Presets Warranty Contact Information...

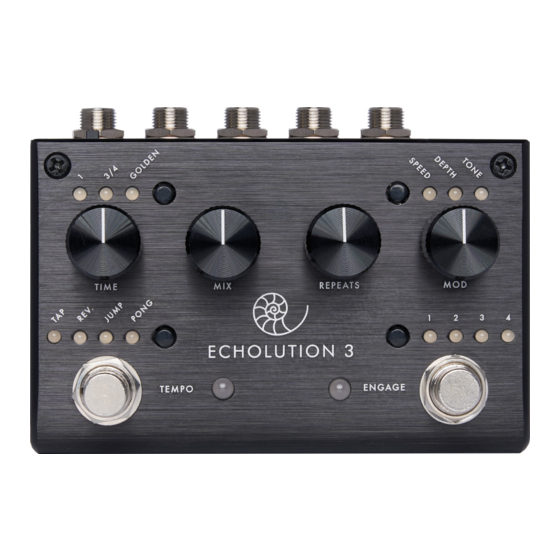

- Page 3 A DIMENSION WORTH GETTING LOST IN. Echolution 3 is a multi-tap stereo modulation delay offering a myriad of sound design options including reverse, jump, pong, modulation tempo sync, variable low pass filter, flexible signal routing and comprehensive MIDI control. Delay times ranging from 100ms to 5 seconds can be dialed in using the Time knob or via Tap Tempo using the left footswitch.
- Page 4 EXPLANATION OF CONTROLS...
- Page 5 Knobs Time Sets the length of the delay line. Turning the Time knob overrides the tap tempo setting. Pressing Tap overrides the Time knob setting. Sub-divisions of the delay time can be selected using a small push button located to the left of the Time knob.
- Page 6 Tempo Footswitch The primary function of the left footswitch is tap tempo. Pressing Tap sets the length of the delay and overrides the current Time knob setting. Turning the Time knob overrides the tap tempo setting. Preset Select A long press of the Tempo switch enters Preset Select mode. Once you have entered the Preset Select mode, the currently selected red preset LED will blink.
- Page 7 Echolution 3 runs on 9VDC at 100mA power using a standard 2.1mm negative tip power supply. Connect a micro USB cable here to perform firmware updates (if available) to the Echolution 3 using the firmware update tool available from pigtronix.com.
- Page 8 The Echolution 3 is compatible with ¼” MIDI input. Echolution 3 will automatically follow MIDI clock signals as a means of setting the delay time. Echolution 3 will also obey MIDI preset change commands. MIDI CC control of every onboard function is available, along with several “hidden” features, not...
- Page 9 To set the MIDI channel on the Echolution 3, Press and Hold the Preset and Special FX buttons during boot up. The LED in the lop left corner will blink, indicating that the Echolution 3 is set to receive MIDI on Channel 1.
- Page 10 MIDI CC Map: Loop Open Close Repeats Knob (1 = open; 1 = close). Bypass Button Send a momentary 1 to Special Values: Time Knob CC#31 to start a loop, 3 = None then send another to close that loop. Mix Knob LFO Mod Button Special Values:...
- Page 11 PRESETS Echolution 3 comes pre-loaded with four diverse presets designed to illustrate the breadth of the pedal’s sound design capabilities. These can be manipulated or replaced at any time by using the Preset Select button. Dotted Eighth Rhythm This classic echo effect has been used on countless hit records to create a bouncing rhythm that keeps one’s self in time.
- Page 12 Pitch Shifting Multi-Tap This hyper-active dual delay features the E3’s unique Jump effect which sends one of the delay taps cascading up in octaves on every repeat. The Tone control is rolled back to 11-o-clock to smooth out the top end, adding velvety ambience to this rhythmic, double-time effect.
- Page 13 If your product is destroyed, lost or damaged beyond repair while in the possession of Pigtronix for repair, Pigtronix will replace that product with one of the same or most similar style of a value not in excess of the original purchase price of your pedal. Any insurance covering the pedal, including but not limited to collector’s value insurance, must be carried by you at your expense.
- Page 14 FROM USE OR PERFORMANCE OF THE PRODUCT, WHETHER IN CONTRACT OR IN TORT, EVEN IF PIGTRONIX OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND PIGTRONIX SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.
- Page 15 CONTACT INFORMATION Address Bond Audio LLC 141 W 28th St, Floor 4 New York, NY, 10001 Phone 631-331-7447 Email info@pigtronix.com Warranty Service Email support@pigtronix.com Warranty Contact Form pigtronix.com/warranty Website pigtronix.com YouTube youtube.com/pigtronix Product manuals are offered digitally in an attempt to be mindful of our environment.
