E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e

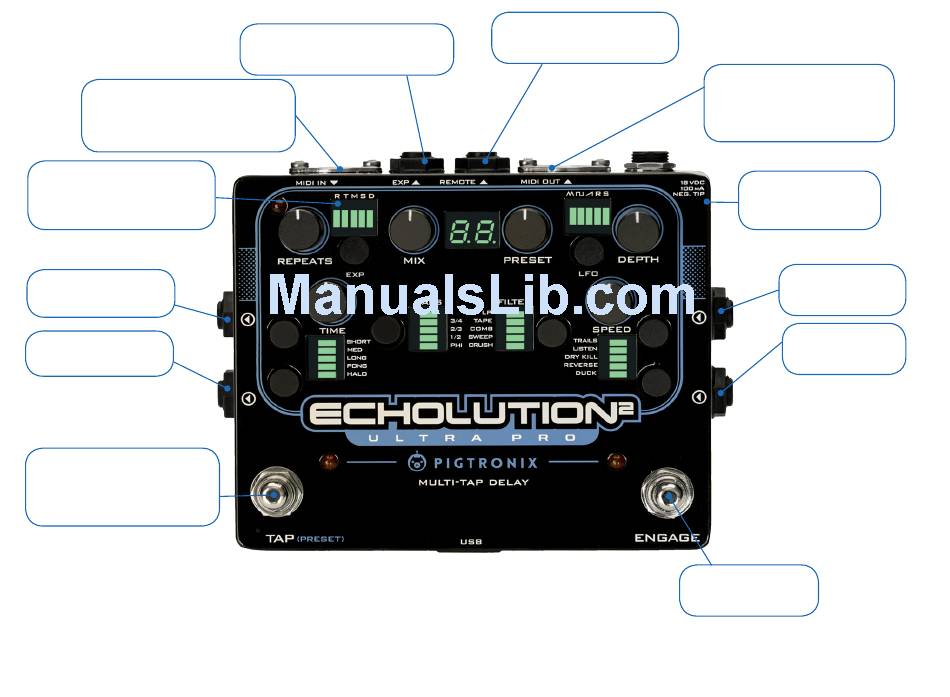

JACKS AND FOOTSWITCHES

MIDI IN
Accepts MIDI preset change, MIDI CC inputs (see
MIDI map) for all functions as well as MIDI beat
clock to set the delay time.

MIDI LED

When a MIDI clock at the MIDI IN jack is
present, the red MIDI LED in the upper left
corner will illuminate.
Output 1
Connect amplifier, mixer, DAW here.
Output 2
Connect amplifier, mixer, DAW here.
Note: When only one of the two audio inputs is
connected, that single input will be processed
in stereo through both outputs

TAP TEMPO

Tap on this switch to set the delay time. When a
new delay time is set by the Tap Tempo switch, it
will override the manual delay time knob.
PRESET SELECTION
A LONG PRESS of the Tap Tempo switch enters PRESET SELECT mode. Once you have entered the PRESET SELECT
mode, the green preset digit will blink.
A SHORT PRESS on the tap tempo switch will move up one preset and a LONG PRESS will move down one preset.
Once the desired preset is queued, pressing the ENGAGE foot switch will activate it.
6 |
p i g t r o n i x . c o m
EXP
TRS expression pedal goes here. Use a low-impedance
foot controller.
REMOTE
E2R or compatible TRS momentary remote
switch goes here.
Note: The Engage footswitch is also used to load presets once you have loaded PRESET SELECT mode. When the
Engage footswitch is used to load a preset, the bypass status of the effect will not change
E c h o l u t i o n 2 | E c h o l u t i o n 2 D e l u x e
JACKS AND FOOTSWITCHES
MIDI OUT
Sends out MIDI beat clock that is eitherrelated
to the delay time or based on the signal
present at the MIDI IN jack along with MIDI
Thru signals.
Power
18VDC (2.1mm neg. tip)
100mA or higher is required.
Input 1
Connect instrument here
Input 2
Connect instrument here
ENGAGE
Turns the effect on and off.
p i g t r o n i x . c o m
| 7
