touch switchEs — filtErs

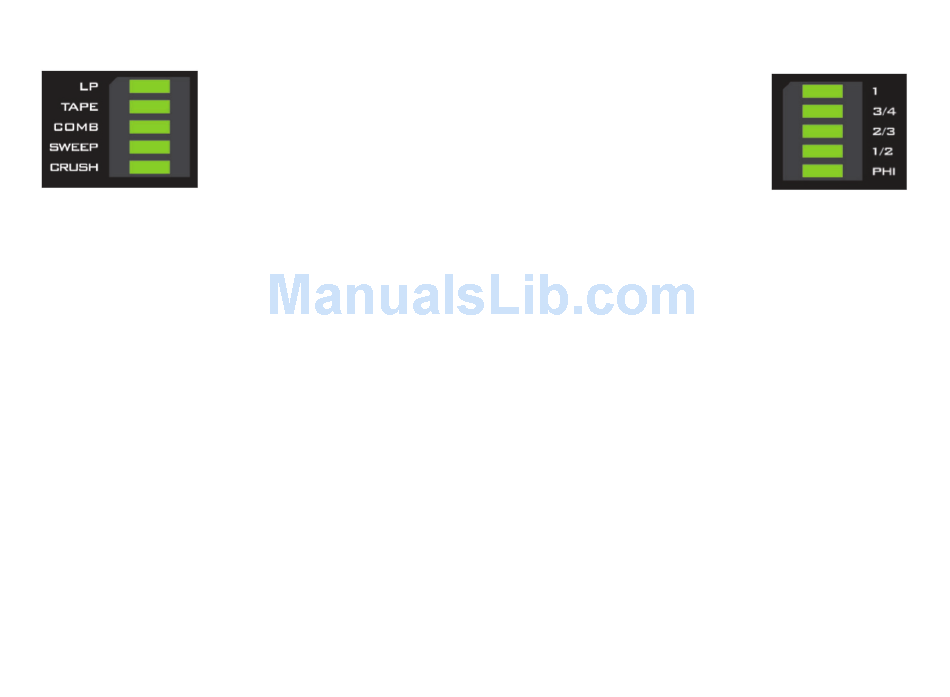

SHORT pRESS cycles between:
LP (Low Pass Filter)
TAPE (Analog Tape emulator)
COMB (All Pass Comb Filter)
SWEEP (Resonant Sweep)
LP + SWEEP
TAPE + SWEEP
COMB + SWEEP
NO FILTER
When COMB or SWEEP is active, those filters are animated at a
rate determined by the LFO SPEED knob. Try using the LFO SYNC
to TAP function for some incredible synchronized filter and delay
effects (See Touch Switches: LFO Waveforms for more).
LONG pRESS turns on the CRUSH filter. This is a proprietary
bitcrusher/destruction filter that smashes the audio in the delay
line according to how loud the input signal is.
Note: On the E2 FILTER PRO, CRUSH is replaced by HALO.
pHaSE INvERSION
controls the phase of stereo output. It can be
toggled by HOLDING the FILTER switch during the boot-up process.
12 |
p i g t r o n i x . c o m
touch switchEs — Multi-taPs
SHORT pRESS cycles between:
1 - delay output matches the tap tempo / delay time
¾ - delay output is ¾ of the tap tempo / delay time value
- delay output is of the tap tempo / delay time value
2/3 2/3
½ - delay output is ½ of the tap tempo / delay time value
PHI - delay output is 0.382 of the tap tempo / delay time value...
this signature feature creates rhythmic echo patterns based on the
mathematics of the Golden Ratio.
LONG pRESS
'locks' the currently selected tap option and adds
a second tap. The locked tap remains at the previously chosen
value and the second tap will now move with each SHORT PRESS,
cycling through the available remaining options.
When two taps are active a LONG PRESS gets rid of the second
tap and 'unlocks' the first tap.
DELaY OUTpUT BOOST
increases the MAX value of the MIX knob
to +6dB above the input signal. This can be toggled by HOLDING
the TAPS switch during the power-up procedure of the E2.
