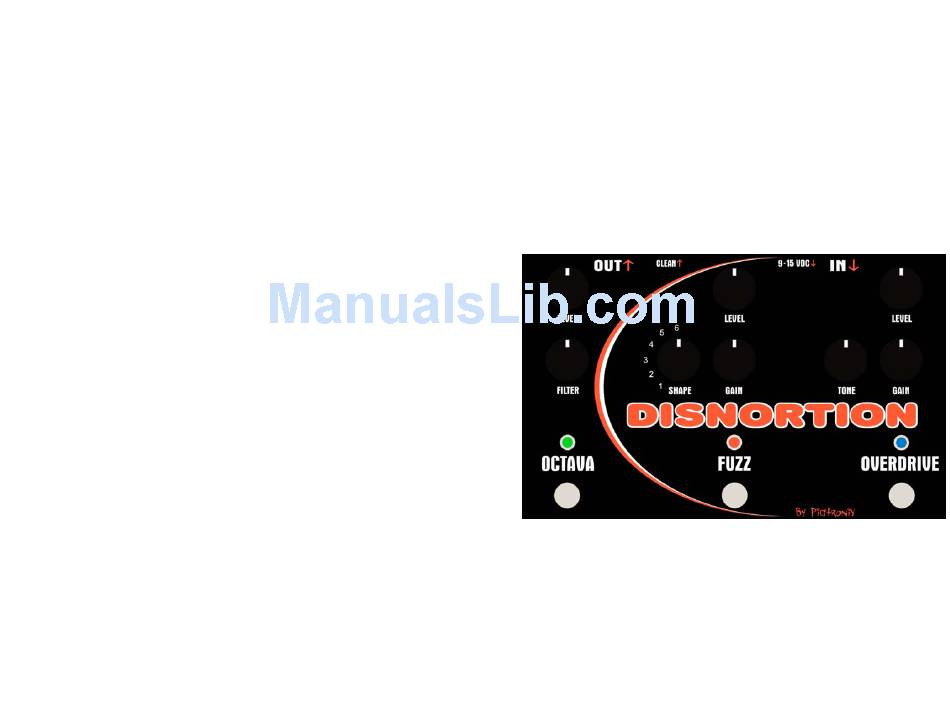

- Page 1 Pigtronix OFO Disnortion User’s Guide All contents © Pigtronix 2006...
- Page 2 Index Welcome………………………………………………………………..… Anatomy of the OFO…………………………………………………. Getting Started…………..……………………………………………. Guided Tour…………..…….…………………………………………… Using the OFO Disnortion + EP-1 Envelope Phaser…… Limited Warranty…………………………………………….……… Safety Precautions…………………………..………………………..

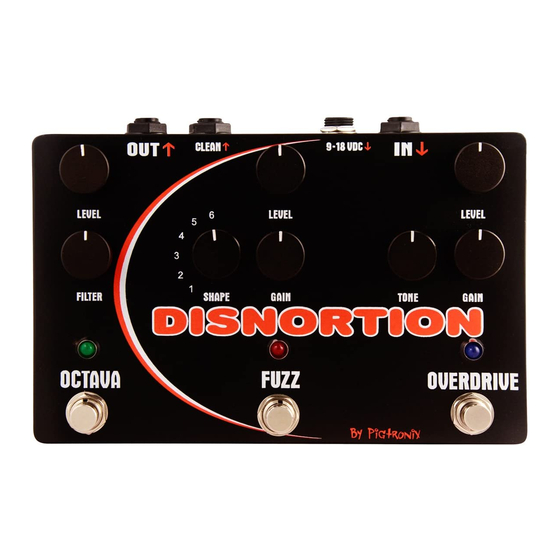

- Page 3 Welcome! Thank you for entering the realm of Pigtronix. Your OFO is a professional quality, 100% analog distortion pedal that features three original Pigtronix effects. The “Overdrive” and “Fuzz” effects in this pedal are wired in parallel, allowing you to blend two separate distortion sounds for a remarkable range of thick yet articulate sounds.
- Page 4 *note: When using the OFO in conjunction with the Pigtronix EP-1, be sure to connect the OFO Clean output to the EP-1’s trigger input. This will allow your clean signal to control the EP-1’s envelope follower, regardless of...
- Page 5 LEVEL – This dial sets the output volume of the Overdrive. GAIN – This dial sets the amount of gain in the Overdrive. Since the Pigtronix Overdrive is touch sensitive, you can set the gain control higher than you might on a different pedal and still achieve soft distortion by playing softly.
-
Page 6: Getting Started
Unpack your OFO and place it on a flat, stable surface. Make sure you are using the 15-Volt DC (negative center) power supply that came with your Pigtronix OFO. The OFO will work with 9 OR 12 Volts DC (negative center) but this is not recommended. - Page 7 Guided Tour The following steps guide you through the sonic palette of OFO and show you how to get at the range of tones that it has to offer. Set all of the OFO’s controls to the 3:00 position with all three LEDs turned off.
- Page 8 13. Return the Octava controls to 3:00 and turn on the Overdrive so that both the blue and green LEDs are on. The Overdrive/Octava sound is unique to the Pigtronix OFO. Dig it. Play low, play high. Notice the increased sustain and knarly yet expressive grind of this combination.
- Page 9 Using the OFO Disnortion + EP-1 Envelope Phaser Here is the recommended way to rig up the Pigtronix OFO and EP-1:...
-
Page 10: Limited Warranty
Limited Warranty Your Pigtronix effect pedal comes with a 1 year limited warranty on parts and workmanship. During the warranty period we will repair or replace, at our option, defective parts or pedals free of charge, and return them to the owner. -
Page 11: Safety Precautions
USE SPECIFIED POWER ADAPTOR ONLY – Be sure to use only the 15-Volt DC Adapter that came with your Pigtronix EP-1 and is specified in this user’s guide. DO NOT EXPOSE TO WATER/BEER – To reduce the risk of fire or electric shock, do not expose your OFO to rain or moisture.
