LifeSpan BOOST Owner's Manual

Hide thumbs Also See for BOOST:
Table of Contents

Advertisement

Quick Links

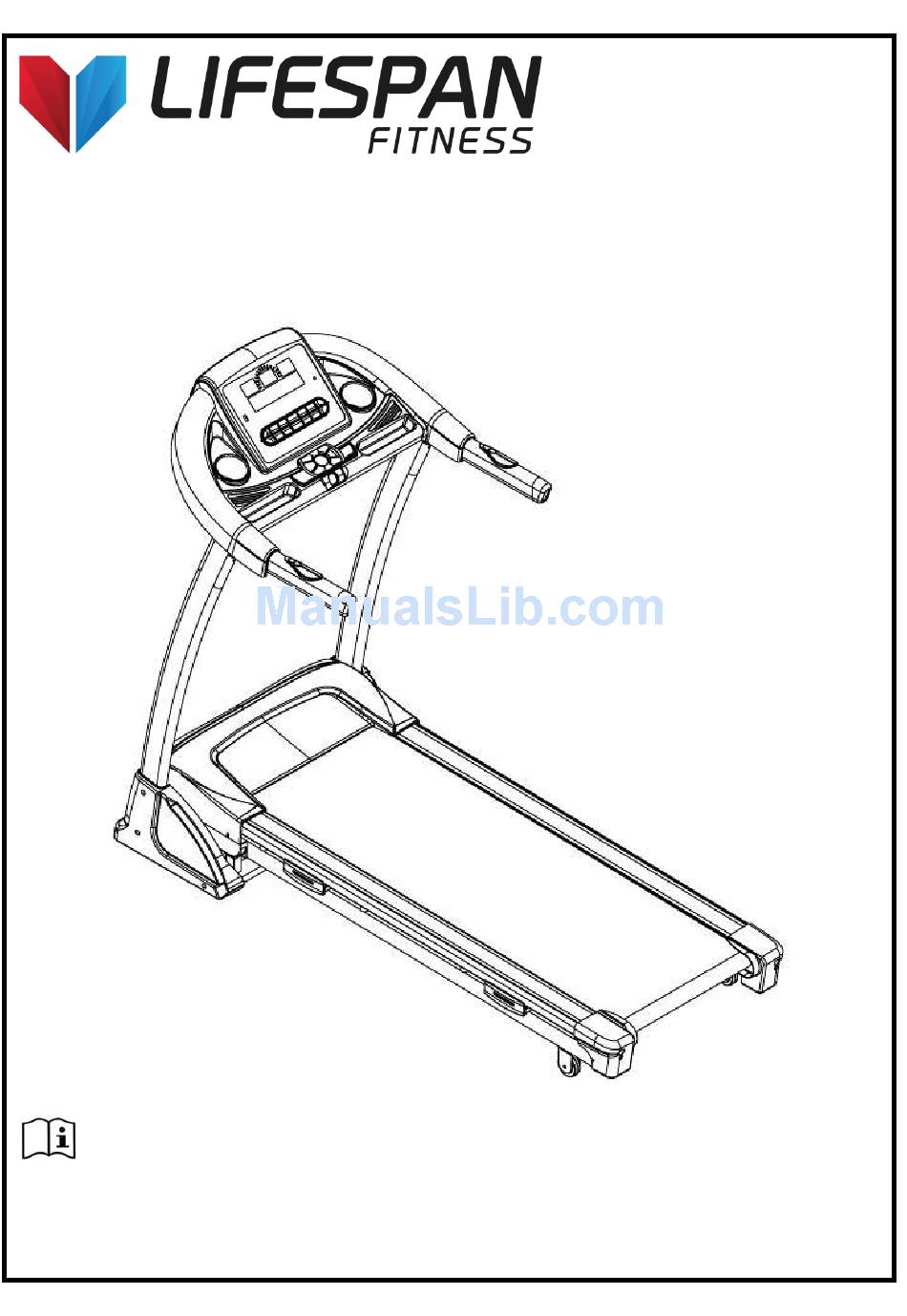

BOOST OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOOST and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan BOOST

Summary of Contents for LifeSpan BOOST

  • Page 1 BOOST OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INFORMATION IMPORTANT OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS OPERATION GUIDE EXERCISE GUIDE MAINTENANCE INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST TROUBLE SHOOTING GUIDE WARRANTY PROGRAM EXERCISE CHART BOOST...

  • Page 3: Important Safety Instructions

    Do not operate where aerosol spray products are being used or where oxygen is being administered. Sparks from the motor may ignite a highly gaseous environment.  Never drop or insert any object into any openings.  The treadmill is intended for in-home use only and not suitable for long term running. BOOST...
  • Page 4 All fixings should be checked before the equipment is used.  All literature relating to the use of the equipment should be retained for future reference.  Allowed operating temperature: 5-40°C Remove the safety key after use to prevent unauthorized treadmill operation. BOOST...

  • Page 5: Important Electrical Information

    Inserting the safety key will reset the display.  Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure.  Replace any defective components immediately. The machine must be kept out of use until repaired. BOOST...

  • Page 6: Assembly Instructions

    MAIN FRAME LEFT UPRIGHT TUBE COVER LOCK WASHER RIGHT UPRIGHT TUBE COVER BOLT M8*15 WATER BOTTLE 5#ALLEN WRENCH BOLT M5*12 WRENCH W/SCREW S=13,14,15 DRIVER ASSEMBLY TOOLS: 5#ALLEN WRENCH 5mm x 1pc Wrench with screw driver S=13, 14, 15 x 1pc BOOST...
  • Page 7 Note: As you erect the display, make sure that you do not damage the wires between the tubes. STEP 3: 1. Use the 5# Allen Wrench (65), M8*15 bolt (70) and lock washer (95) to lock the upright tube (B) onto MAIN FRAME (1). BOOST...
  • Page 8 (70) and lock washer (95) to lock the computer (A) onto the left and right upright tube (B). STEP 5: 1. Fix the Left & Right upright tube covers (23,24) onto the base frame by using wrench with screw driver (66) and M5*12 bolt (93). BOOST...

  • Page 9: Folding Instructions

    The base frame will descend automatically. (Please keep people and any pets away the machine during descent) Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/cP9NtFHfWlc http://www.youtube.com/user/treadmillsvideos BOOST...

  • Page 10: Operation Guide

    “End” and will slow down to a stop. Then it will enter standby in 5 seconds 5. PUL/CAL windows: shows the heart rate and calories burnt. When displaying calorie value the range is from 0-999. When it reaches 999 the treadmill will slow down until a stop and show “End”. BOOST...
  • Page 11 8. “INCL: 2, 6, 8, 10, 12, 14” Incline adjustment shortcut key. 9. CLOCK: Whilst in standby mode, hold the SPEED + and the SPEED - buttons together until you hear a beep form the machine. Then use the SPEED +, SPEED - and INCLINE +, INCLINE – BOOST...
  • Page 12 Adjust speed using “SPEED+”, “SPEED–”. Adjust incline using “INCLINE+”, “INCLINE -”.Press MODE to finish first time section setting and enter next time section. After finishing the 10 time setting the data will be stored in memory. 2. Start BOOST...
  • Page 13 When holding the hand pulse with two hands, the pulse window will show your heart rate after 5 seconds. To increase accuracy please check heart rate with the machine stopped and after keeping your hands on the sensors for more than 30 seconds. The heart rate data is for reference purposes ONLY. BOOST...
  • Page 14 20—150 KGS FA（BMI） RESULT ≤19 UNDER WEIGHT 20--25 NORMAL WEIGHT 25--29 OVER WEIGHT ≥30 OBESE 7. SLEEP FUNCTION: The treadmill automatically enters sleep mode after 10 minutes of inactivity. Press any key on the display to wake the treadmill. BOOST...

  • Page 15: Exercise Guide

    So as you can see, the fitter you are, the healthier and greater you will feel. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise. BOOST...

  • Page 16: Workout Guidelines

    The most important factor here is the amount of effort you put in. The harder and longer you work, the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. BOOST...

  • Page 17: Maintenance Instructions

    General Care  Check parts for wear before use.  Pay particular attention to the fixing knobs and make sure they are tight.  Always replace the mat if worn and any other defective parts. BOOST...

  • Page 18: Belt/Deck/Roller Lubrication

    3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before relubricating is necessary. Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/cP9NtFHfWlc http://www.youtube.com/user/treadmillsvideos BOOST...

  • Page 19: How To Check The Running Mat For Proper Lubrication

    If the surface is slick when touched, then no further lubrication is needed. If the surface is dry to the touch, apply a suitable silicone lubricant. We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be purchased directly from us or any hardware store.

  • Page 20: Adjusting The Running Belt

    To adjust the tightness of the belt: Turn the treadmill off. Turn both the left and right adjusting bolts 1/4 turn clockwise. Repeat until the belt correctly tightens. See Picture C If the belt is over tightened, simply do the opposite to loosen. BOOST...
  • Page 21 Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening. Video Tutorial Available at: Lifespan Fitness Channel: http://youtu.be/vllsamTSvvA http://www.youtube.com/user/treadmillsvideos...

  • Page 22: Replacing Motor Brushes

    2. You’ll find the motor brush held in with a clip, with from the sides. the lead plugged in. 4a. Hold the clip out of the way with a screwdriver or 3. Pull the clip out from its position. similar object. Keep the screwdriver in this position until step 9. BOOST...
  • Page 23 2cm on the longest side, you will need another small screwdriver or needle-nosed pliers. to replace both brushes. 7. Plug the new motor brush lead into the terminal. 8. Slide the new motor brush into the slot. BOOST...
  • Page 24 12. You have now successfully replaced the motor brushes. We also recommend that you remove any dirt and dust from your treadmill motor fan using a vacuum cleaner before replacing the cover. BOOST...

  • Page 25: Exploded Diagram

    9. EXPLODED DIAGRAM BOOST...

  • Page 26: Parts List

    LEFT BACK END COVER SCREW M8*80 RIGHT BACK END COVER SCREW M10*30 MOTOR TOP COVER SCREW M10*45 MOTOR BUTTON COVER SCREW M10*60 CUSHION SCREW M8*45 SIDE RAIL SCREW M8*35 SAFETY KEY SCREW M6*55 COMPUTER ACRYLIC SCREW M6*35 COMPUTET BOTTOM SCREW BOOST...
  • Page 27 SQUARE SWITCH WASHER OVERLOAD PROTECTOR WASHER RUNNING BELT WASHER MOTOR BELT WASHER FOAM COVER FLAT WASHER C φ10*φ 26*2.0 HANDPULSE WITH INCLINE BIG WASHER C HANDPULSE WITH SPEED BLACK RUBBER CUSHION TOP SIGNAL WIRE BLUE RUBBR CUSHION BOTTOM SIGNAL WIRE BOOST...

  • Page 28: Trouble Shooting Guide

    No sensor signal 1. The sensor signal was not detected within 10 seconds. Check the sensor plug connection 2. See if the magnetic sensor is broken or damaged, re-connect the plug well or change the sensor. BOOST...
  • Page 29 2. Ensure wires of control board are properly connected, replace any broken parts on the board 3. Replace transformer Control board problem 1. Replace controller Machine is folded 1. Ensure that the machine is correctly unfolded, restart. 2. Replace transformer BOOST...
  • Page 30 1. the motor wire is broken; the safety pipe is broken or has fallen after pressing START off; button 2. motor wire is not properly connected 3. IGBT on bottom control board is burnt out. Test the above reasons and change the relevant part. BOOST...

  • Page 31: Warranty

    Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs Warranty and Support: Please email us at support@lifespanfitness.com.au for all warranty or support issues. For all warranty or support related enquiries an email must be sent before contacting us via any other means. BOOST...
  • Page 32 Hand Pulse Technology Lifespan Fitness Treadmills come equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.
  • Page 33 BOOST...
  • Page 34 BOOST...
  • Page 35 BOOST...
  • Page 36 BOOST...
  • Page 37 BOOST...
