CDM-600 Satellite Modem
Installation
2.2

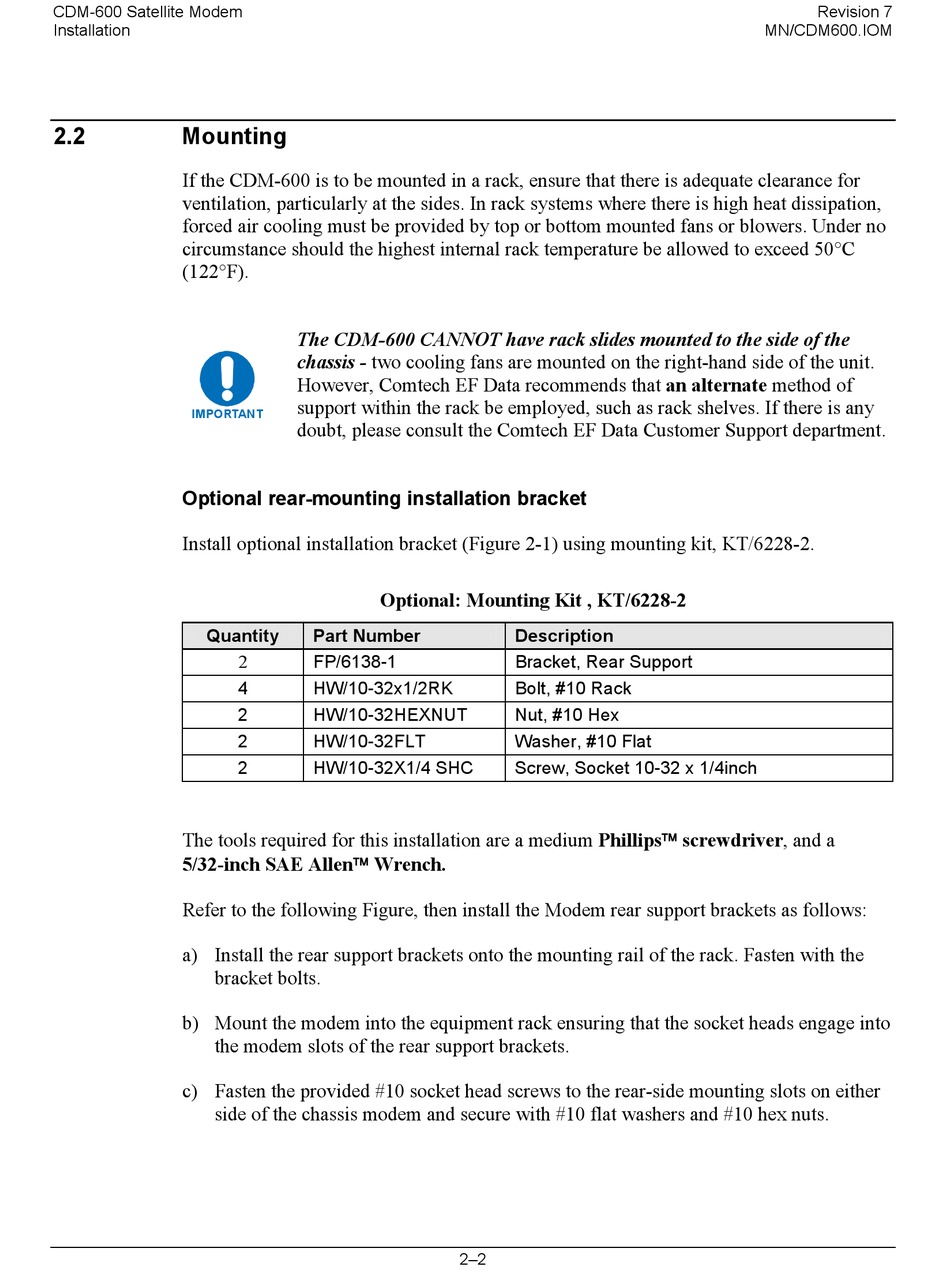

Mounting

If the CDM-600 is to be mounted in a rack, ensure that there is adequate clearance for
ventilation, particularly at the sides. In rack systems where there is high heat dissipation,
forced air cooling must be provided by top or bottom mounted fans or blowers. Under no
circumstance should the highest internal rack temperature be allowed to exceed 50°C
(122°F).
IMPORTANT
Optional rear-mounting installation bracket
Install optional installation bracket (Figure 2-1) using mounting kit, KT/6228-2.
Quantity
The tools required for this installation are a medium Phillips screwdriver, and a
5/32-inch SAE Allen Wrench.
Refer to the following Figure, then install the Modem rear support brackets as follows:
a) Install the rear support brackets onto the mounting rail of the rack. Fasten with the
bracket bolts.
b) Mount the modem into the equipment rack ensuring that the socket heads engage into
the modem slots of the rear support brackets.
c) Fasten the provided #10 socket head screws to the rear-side mounting slots on either
side of the chassis modem and secure with #10 flat washers and #10 hex nuts.
The CDM-600 CANNOT have rack slides mounted to the side of the
chassis - two cooling fans are mounted on the right-hand side of the unit.
However, Comtech EF Data recommends that an alternate method of
support within the rack be employed, such as rack shelves. If there is any
doubt, please consult the Comtech EF Data Customer Support department.
Optional: Mounting Kit , KT/6228-2
Part Number
2 FP/6138-1
4 HW/10-32x1/2RK
2 HW/10-32HEXNUT
2 HW/10-32FLT
2 HW/10-32X1/4 SHC
Description
Bracket, Rear Support
Bolt, #10 Rack
Nut, #10 Hex
Washer, #10 Flat
Screw, Socket 10-32 x 1/4inch
2–2
Revision 7
MN/CDM600.IOM
