13. MEMORY CARD ADAPTER, cont'd.
13.4

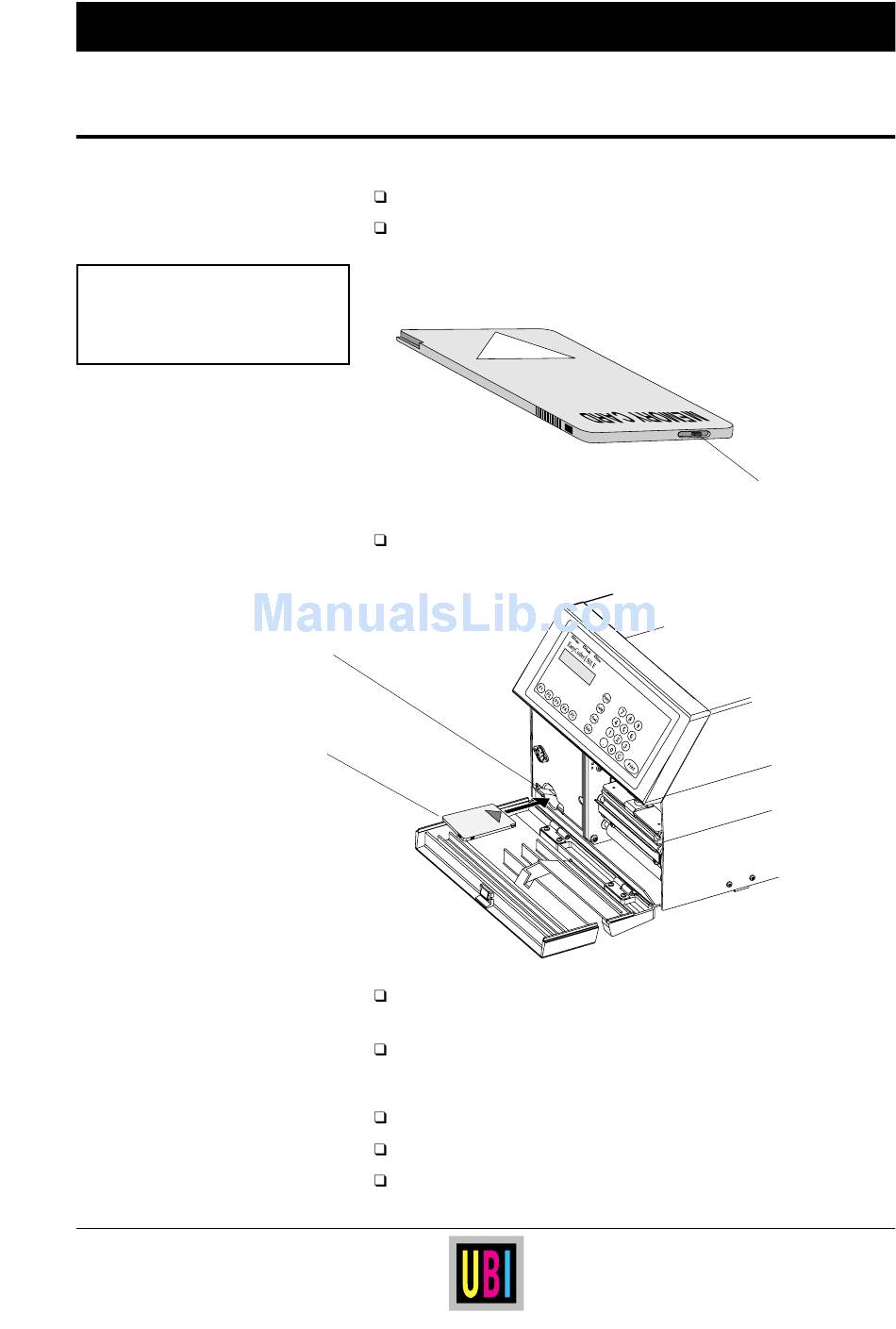

Inserting a Memory Card

IMPORTANT!
The printer must be off when
a memory card is inserted
or removed.
Memory Card Adapter
Memory Card
13.5

Removing a Memory Card

Turn off the power to the printer and open the front hatch.
In case of non DOS-formatted memory card, check that the
protection switch is set to Write Protect. (The location of the
switch varies between different brands). This does not apply to
DOS-formatted memory cards!
Insert the memory card into its adapter as illustrated below.
Make sure that the manufacturer's logotype on the memory card
is facing upwards.
Press firmly inwards so the pins in the adapter engage the
corresponding slots in the memory card.
Turn on the power again and close the front hatch.
Before removing the memory card, turn off the power.
Open the front hatch and pull the card straight out.
Close the front hatch and turn on the power again.
Protection Switch
99
