UBI EasyCoder 501 – Service Manual
25. TEST MODE, cont'd.

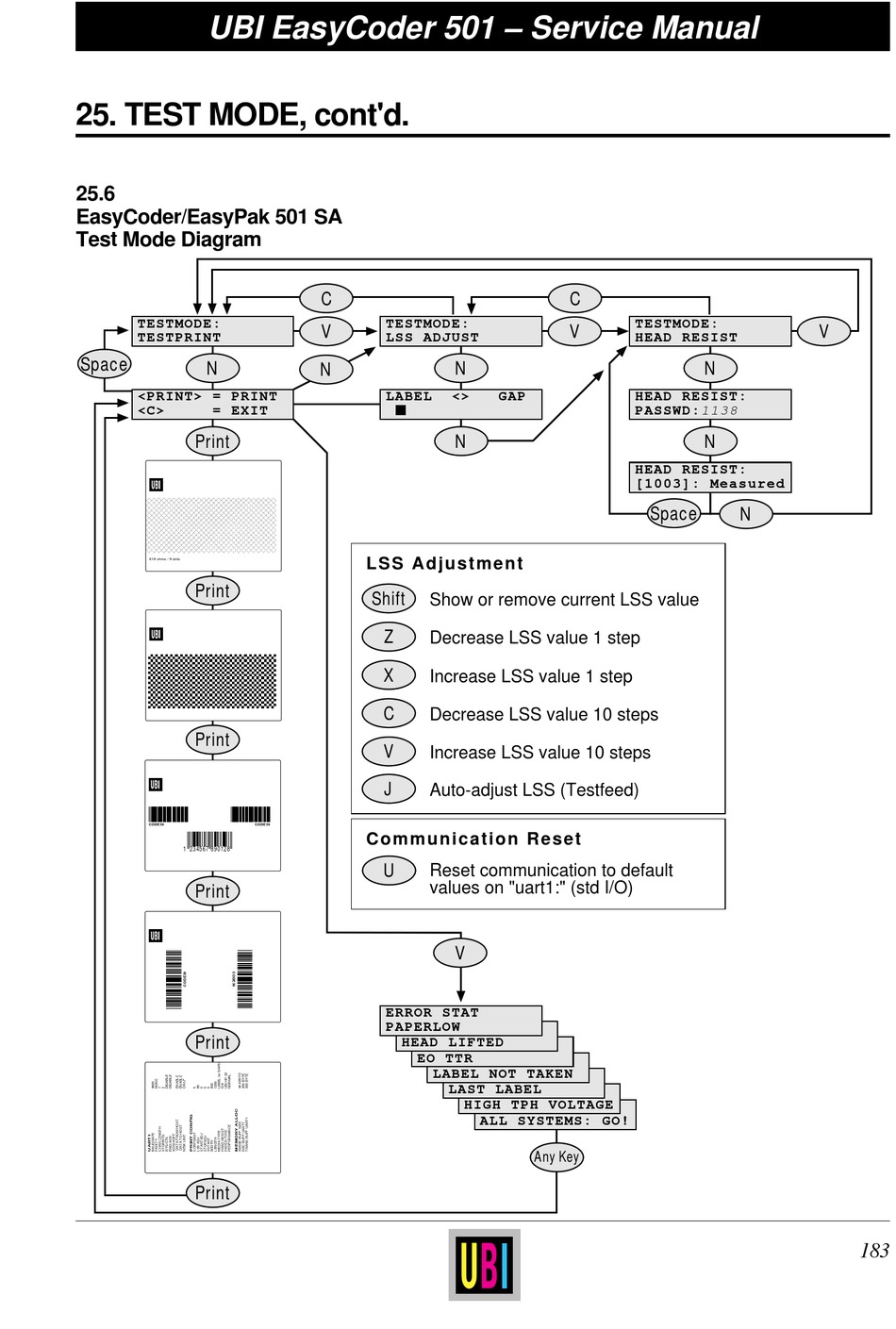

25.6
EasyCoder/EasyPak 501 SA
Test Mode Diagram
TESTMODE:
TESTPRINT
Space
N
<PRINT> = PRINT
<C> = EXIT
Print
618 ohms / 8 dots
Print
Print
CODE39
1 23 45 67 890 12 8
Print
Print
Print
C
TESTMODE:
V
LSS ADJUST
N
LABEL
L S S A d j u s t m e n t
Shift
Z
X
C
V
J
CODE39
C o m m u n i c a t i o n R e s e t
U
ERROR STAT
PAPERLOW
ERROR STAT
HEAD LIFTED
ERROR STAT
EO TTR
C
V
N
<> GAP
N
Show or remove current LSS value
Decrease LSS value 1 step
Increase LSS value 1 step
Decrease LSS value 10 steps
Increase LSS value 10 steps
Auto-adjust LSS (Testfeed)
Reset communication to default
values on "uart1:" (std I/O)
V
ERROR STAT ERROR STAT ERROR STAT
ALL SYSTEMS: GO! ALL SYSTEMS: GO! LABEL NOT TAKEN
ERROR STAT
LAST LABEL
ERROR STAT
HIGH TPH VOLTAGE
ERROR STAT
ALL SYSTEMS: GO!
Any Key
TESTMODE:
HEAD RESIST
N
HEAD RESIST:
PASSWD: 1138
N
HEAD RESIST:
[1003]: Measured
Space
N
V
183
