UBI EasyCoder 501 – Service Manual
8. PRINT UNIT, cont'd.
8.7
Printhead, cont'd.
3 mm (0.12")
Dot-line
on printhead
X-start
Dot 0

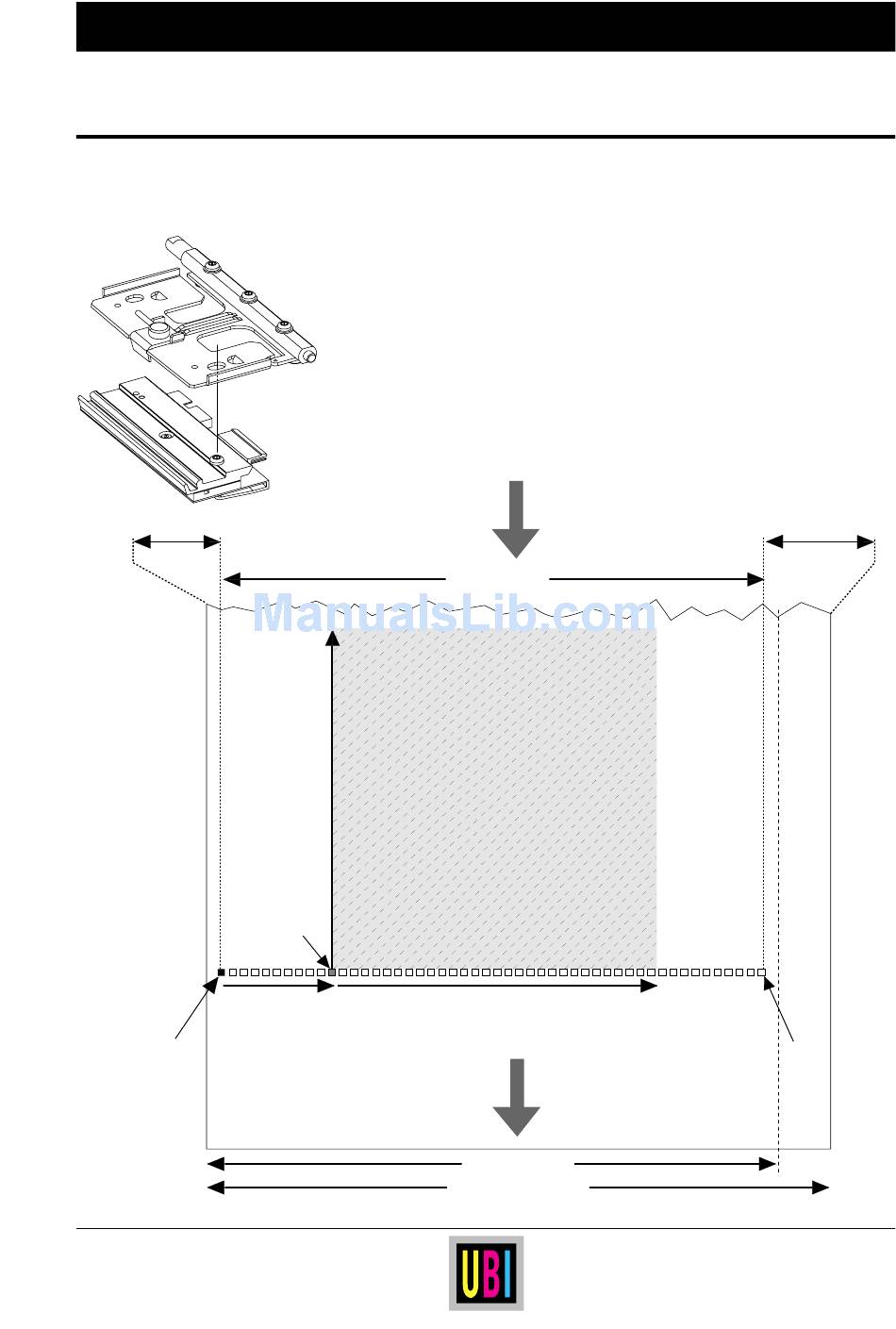

8 dots/mm (203.2 dpi) printhead in right-hand position
The 8 dots/mm printhead can be fitted in two positions. When the
printhead is fitted in the outer, right-hand position (see illustration),
dot No. 0 is situated 3 mm (0.12") inside the inner edge of the paper
web. Since the maximum print width is 104 mm (4.1") and the
maximum web width is 120 mm (4.7"), this leaves a margin of at
least 13 mm (0.51") along the outer edge of the web. If an 110 mm
(4.33") wide web is used, the printhead will be centre-aligned with
a 3 mm (0.12") margin on either side.
Length
Origo
Width
From
paper supply
104 mm (4.1")
PRINT PRINT
WINDOW WINDOW
PAPER FEED
DIRECTION
110 mm (4.33")
max. 120 mm (4.7")
13 mm (0.51")
Dot 831
Continued!
