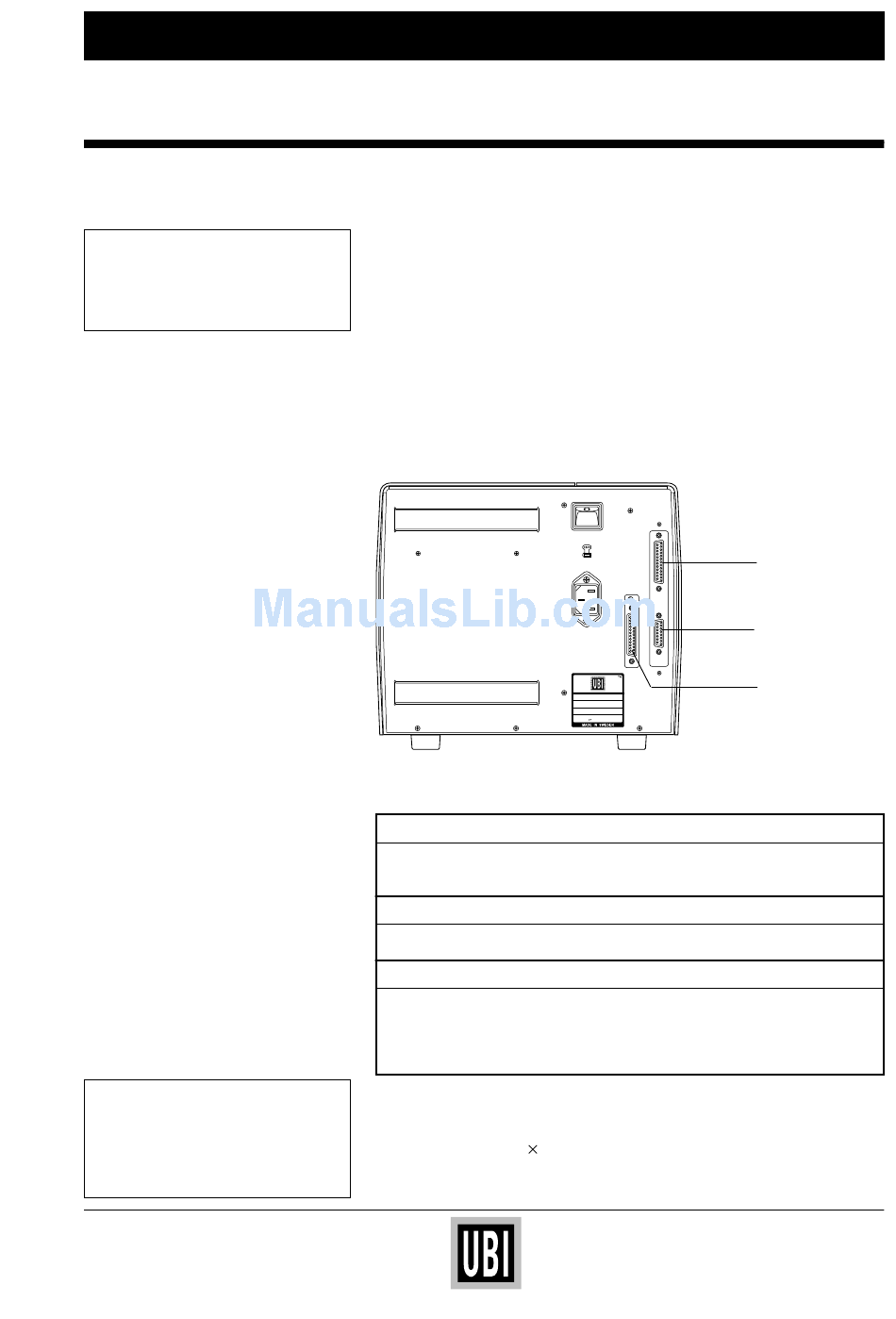

EasyCoder 501/601 – Installation Instructions
INDUSTRIAL INTERFACE KIT
Introduction
Note:
Illustrations show an EasyCoder 501.
The principles for fitting this optional
equipment in an EasyCoder 601 are
exactly the same.
UBI EasyCoder 501/601
Industrial Interface Kit
Installation Instructions
Edition 1, March 1994
Article No. 1-960343-01
The Industrial Interface Board adds one serial communication port
("uart3") and one connector with four IN and four OUT ports to the
standard serial communication port ("uart1:").
The IN/OUT ports provide an interface between the printer and
various types of external equipment, such as gates, conveyor belts,
wrappers etc. The input and output signals can be read or initiated
by means of UBI Fingerprint instructions. Thereby the printer can
be used to control the external devices – or be controlled by them –
according to the program.
The printer's software detects when an Industrial Interface Board is
installed and adds communication and buffer setup options for the
communication port "uart3:".
When an Industrial Interface Board is fitted, the following types of
interfaces become available:
"uart1:"
RS 232C
RS 422 or 20 mA CL
"uart3:"
RS 232C
IN/OUT connector
4 input channels
4 output channels
The Industrial Interface Kit consists of:
1 Interface board assy.
2 Screws MRX-Z 3 6 FZB (not intended for EasyCoder 501/601)
Installation Instructions
Type
Art. No.
Ser. No.
115/230 V 2.6/1.3 A 50–60 Hz
Fitted on printer's CPU board.
Standard. Selected by strap.
Option. Additional circuits required.
Fitted on Industrial Interface Board.
Fitted on Industrial Interface Board.
The software can read the status of four different
input signals.
The software can set four different signals to either
open or closed contact and also read their status.
"uart3:"
IN/OUT ports
"uart1:"
1
