UBI EasyCoder 501 – Service Manual
22. PARALLEL INTERFACE BOARD
22.1

Description

The Parallel Interface Board adds one parallel communication port
("centronics:") to the standard serial communication port ("uart1:").
The Parallel Interface Board may either be bought separately as a
kit complete with installation instructions, or be factory installed.
The following types of interfaces can be selected:
"uart1:"
RS 232C
RS 422 or 20 mA CL
"centronics:"
Centronics parallel interface
The setup is in no way affected by the Parallel Interface Board, since
the Centronics interface does neither require any communication
setup nor uses any buffers.

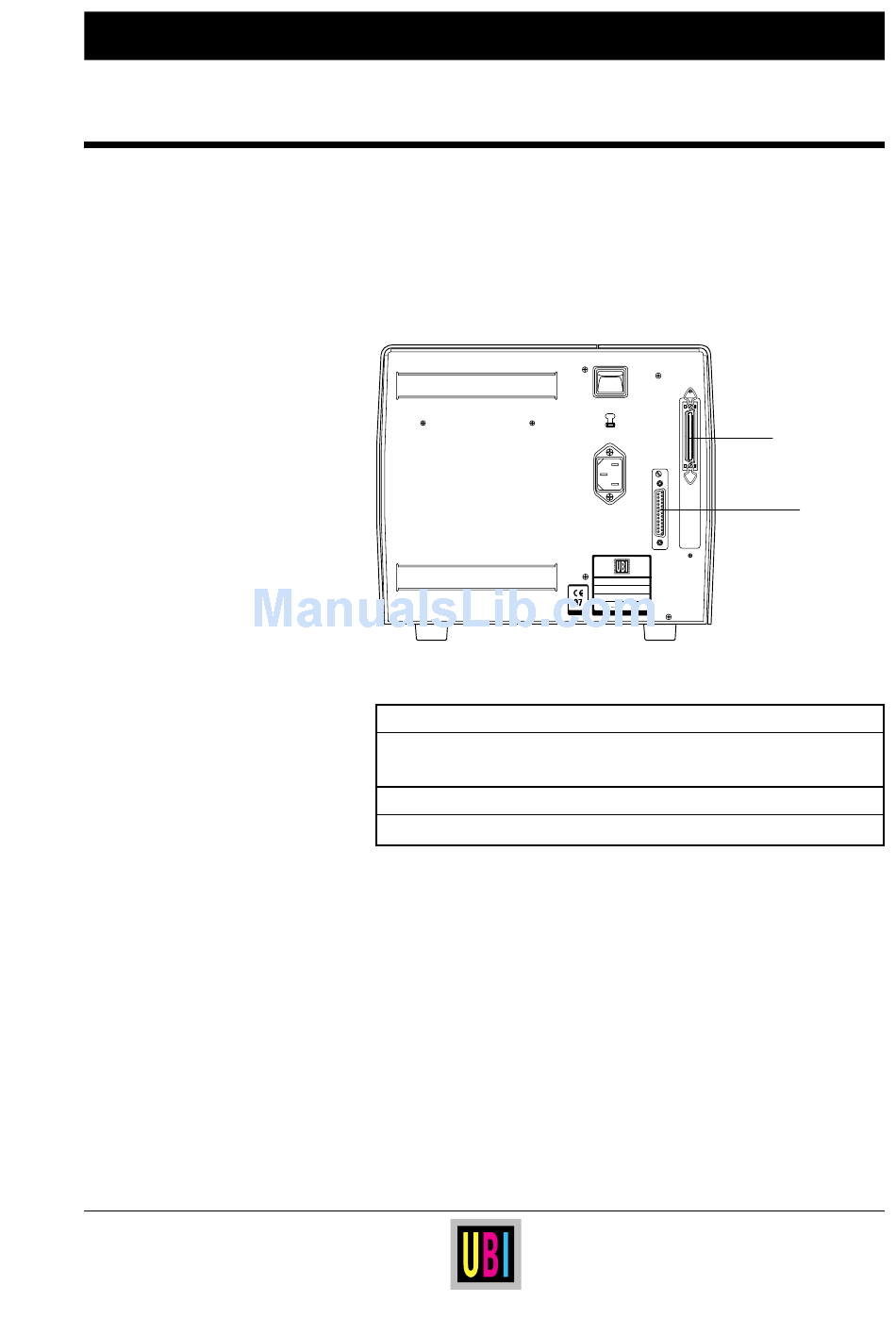

0
230V
TA
Type
Art. No.
Ser. No.
115/230 V 2.6/1.3 A 50–60 Hz
MADE IN SWEDEN
Fitted on printer's CPU pcb.
Standard.
Option. Additional circuits required.
Fitted on Parallel interface pcb.
"centronics:"
"uart 1:"
