2. FRONT AND KEYBOARD
2.1

Front

Keyboard/Display assy.
Grub Screws
Cutter Connector
(fitted as standard)

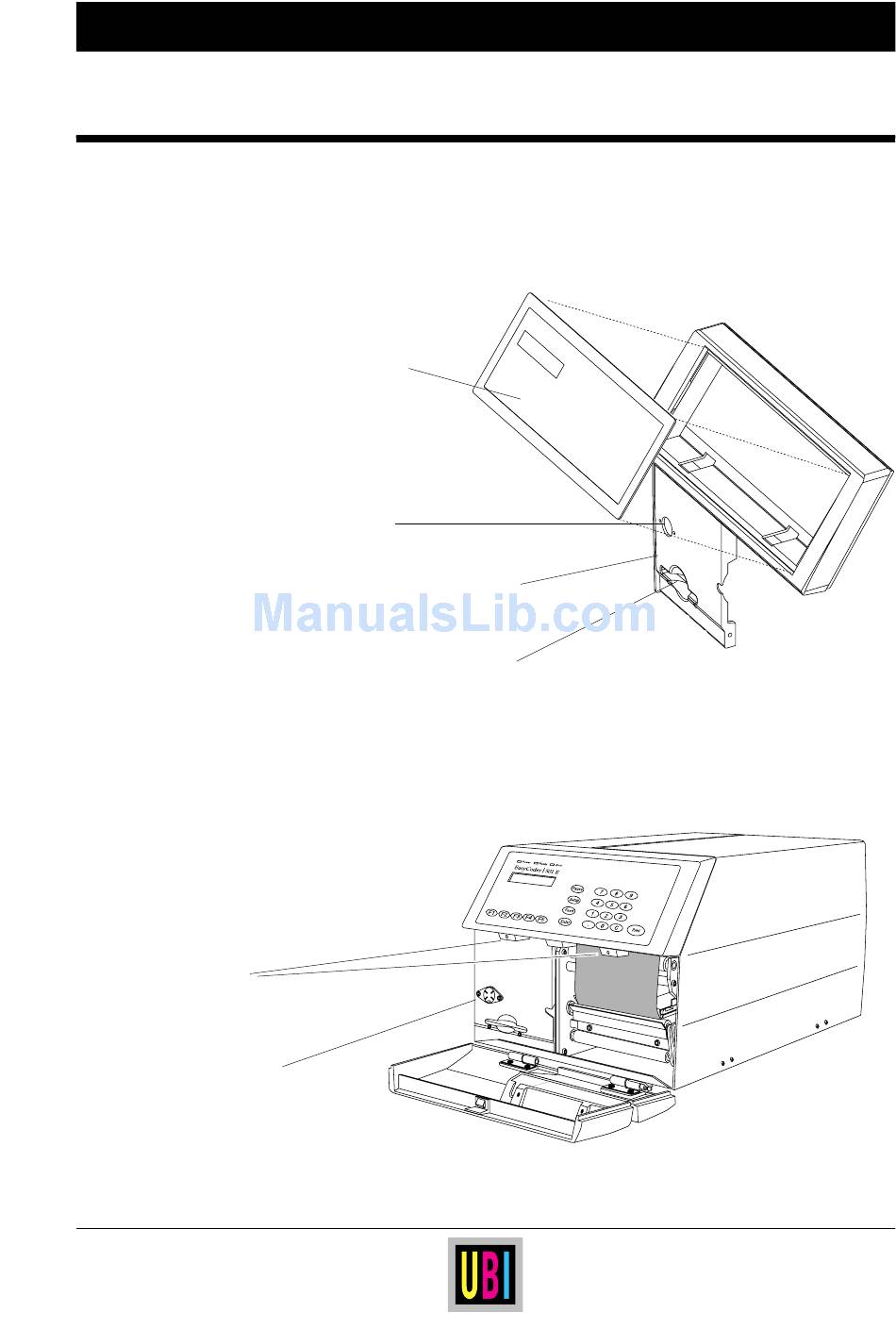

The moulded front part is attached to the centre-line wall by means
of four #T20 screws and to the bottom plate by two #T20 screws.
The front moulding is provided with holes for mounting a cutter
connector (4-pin female DIN-type) and a memory card adapter.
Provision for
Cutter Connector
Front Moulding
Provision for
Memory Card Adapter
At the top part of the front moulding, there is a cavity for the
keyboard/display assy. This assembly is affixed by means of two
grub screws which can be loosened using a 2 mm hexagon wrench.
