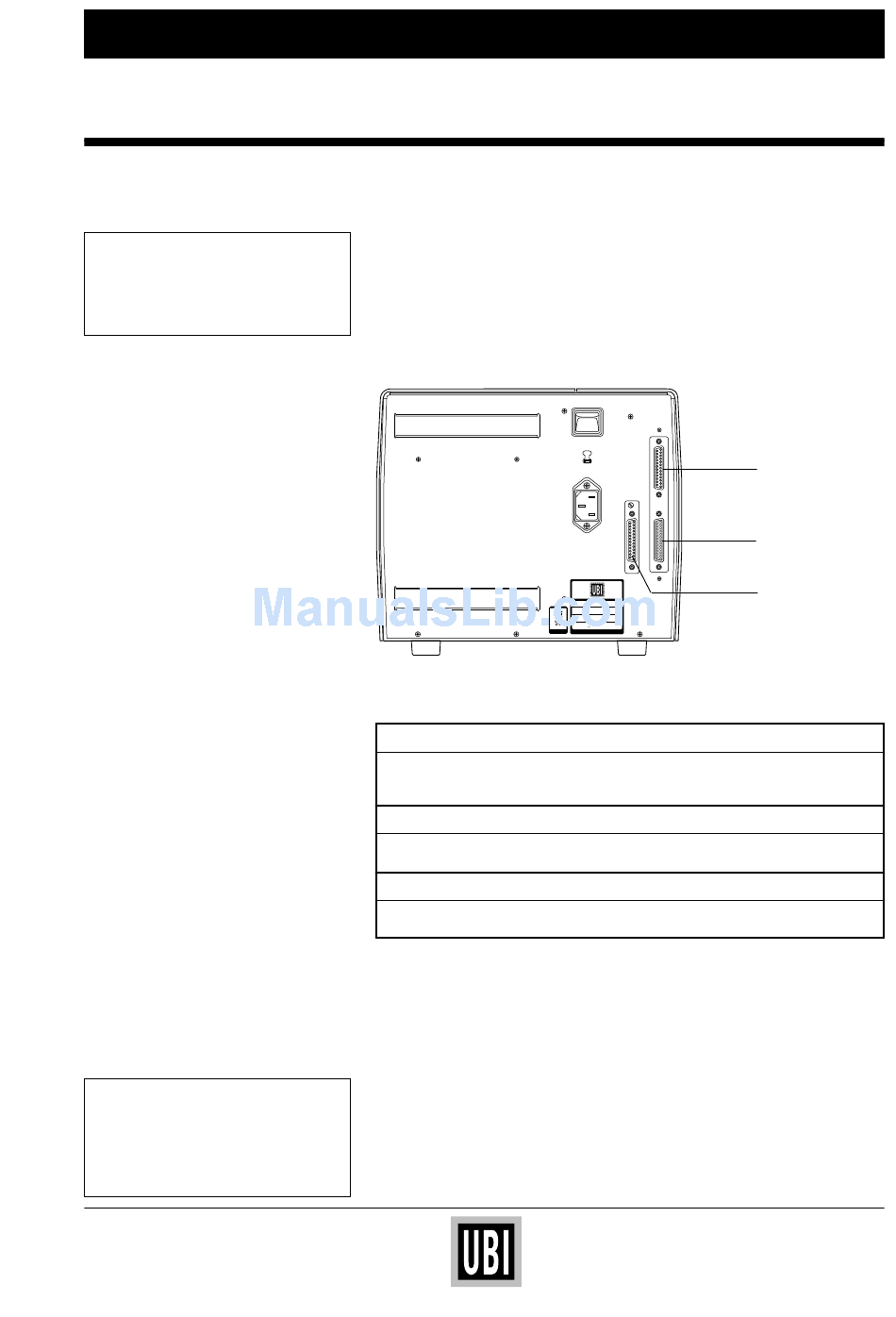

EasyCoder 501/601 – Installation Instructions
RS 422/485 INTERFACE KIT
Introduction
Note:
Illustrations show an EasyCoder 501.
The principles for fitting this optional
equipment in an EasyCoder 601 are
exactly the same.
UBI EasyCoder 501/601
RS 422/485 Interface Kit
Installation Instructions
Edition 2, June 1995
Article No. 1-960346-02
The RS 422/485 Interface Board adds two serial communication
ports ("uart2:" and "uart3:") to the standard serial communication
port ("uart1:").
The RS 422/485 interface on "uart2:" is galvanically insulated from
the printer in order to avoid electrical interference.
The printer's software detects when an RS 422/485 Interface Board
is installed and adds communication and buffer setup options for the
two additional communication ports.
When an RS 422/485 Interface Board is fitted, the following types
of interfaces become available:
"uart1:"
RS 232C
RS 422 or 20 mA CL
"uart2:"
RS 422/RS 485
"uart3:"
RS 232C
The RS 422/485 Interface Kit consists of:
1 Interface board assy.
×
2 Screws MRT 3
5 FZB (not used in EasyCoder 501/601)
Installation Instructions
Information in this manual is subject to change without prior notice
and does not represent a commitment on the part of UBI Printer AB.
© Copyright UBI Printer AB, 1995. All rights reserved.
Published in Sweden.
EasyCoder is a trademark of United Barcode Industries (UBI).
Torx is a registered trademark of Camcar Division of Textron Inc.
0
230V
TA
Type
Art. No.
Ser. No.
115/230 V
2.6/1.3 A 50–60 Hz
MADE IN SWEDEN
MADE IN SWEDEN
Fitted on printer's CPU board.
Standard.
Option. Additional circuits required.
Fitted on Serial Interface Board.
Type selected by straps and cable configuration
Fitted on Serial Interface Board.
"uart3:"
"uart2:"
"uart1:"
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EasyCoder 501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for UBI EasyCoder 501

  • Page 1 5 FZB (not used in EasyCoder 501/601) Installation Instructions Information in this manual is subject to change without prior notice and does not represent a commitment on the part of UBI Printer AB. UBI EasyCoder 501/601 RS 422/485 Interface Kit ©...
  • Page 2: Remove The Cover

    EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Step-by-Step Installation The only tool required is a Torx #T10 screwdriver. Instructions Turn off the power and remove the power cord. Remove the communication cable from communication port "uart1:". Cover Plate...
  • Page 3 EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Step-by-Step Installation Remove the existing cover plate. Instructions, cont'd. Make sure that the CPU board is strapped and equipped for the desired type of communication on "uart1:" (see the EasyCoder 501 or EasyCoder 601 Technical Manual).
  • Page 4 EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Step-by-Step Installation Reassemble the printer in reverse order. Instructions, cont'd. Connect the communication cables to their respective connec- tors. Please refer to page 8 for pinout descriptions. Connect the power cord and turn on the power.
  • Page 5: Communication Principles

    Each printer must be given an address by means of straps port is in most cases referred to as on the interface board. See UBI Fingerprint Programmer's Guide. "uart2:", except in connection with In an RS 485 loop, one of the units must be appointed “master” unit.
  • Page 6 EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Straps "uart3:" MASTER "uart2:" P-10 P-11 The following straps are used to set up the desired interface: Communication Port "uart2:" (RS 422/485) Selects 2- or 4-wire communication (see text on board).
  • Page 7 EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Straps, cont'd. The illustrations below show how the voltage reference straps and terminating resistor straps should be fitted on the RS 422/485 interface boards. When a computer is connected to the line or loop, the same principles apply.
  • Page 8: Connector Configuration

    EasyCoder 501/601 – Installation Instructions RS 422/485 INTERFACE KIT, cont'd. Straps, cont'd. Address straps (P-7): STRAP: STRAP: Address 0 Address 16 Address 1 Address 17 Address 2 Address 18 Address 3 Address 19 Address 4 Address 20 Address 5 Address 21...
