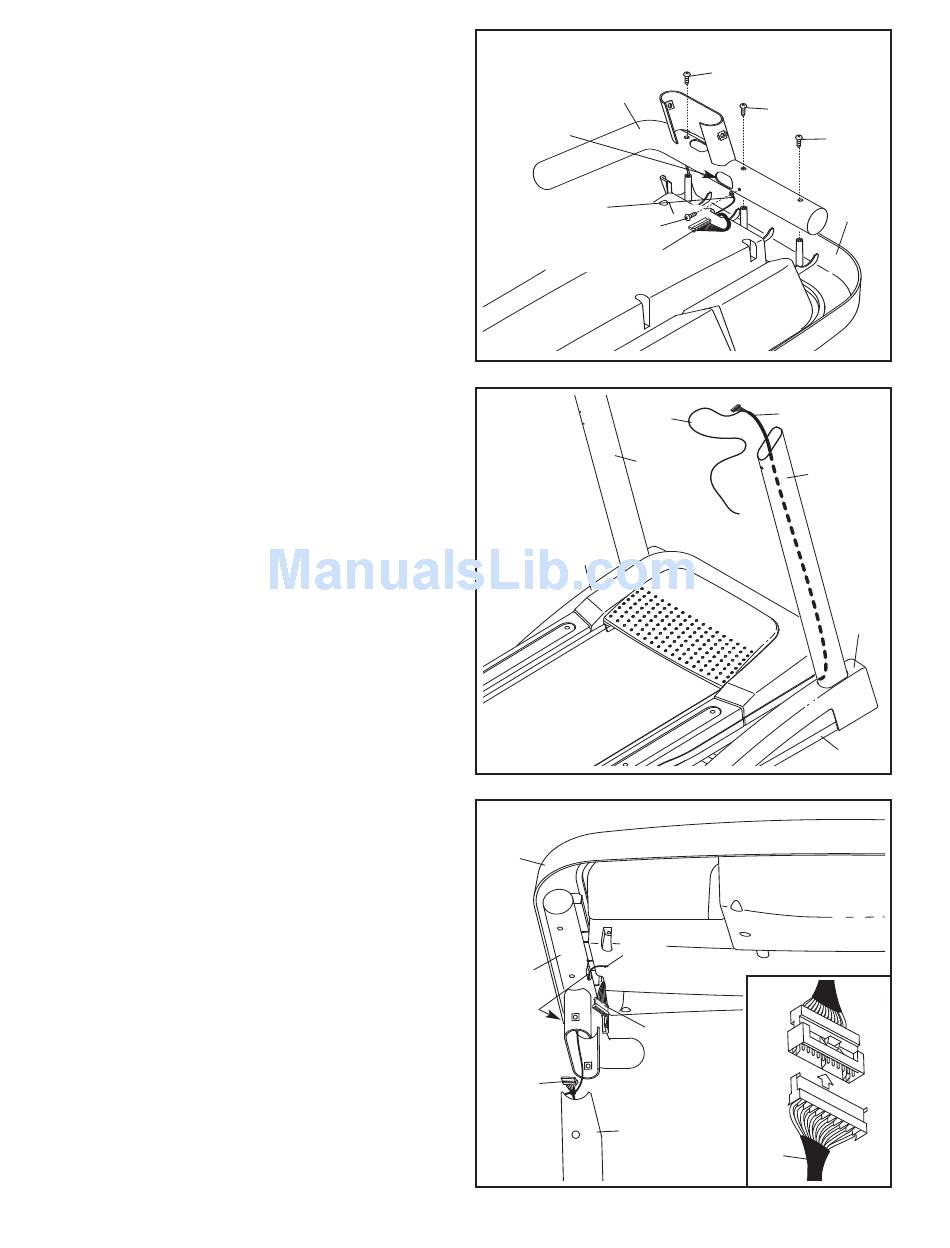

7. Set the Console (25) face down on a soft sur-
face to avoid scratching the Console. Identify
the Right Handrail (11), which has a large hole
in the location shown. Set the Right Handrail on
the Console as shown. Attach the Right Handrail
with three 3/4" Screws (2). Make sure that no
wires are pinched. Start all three Screws be-
fore tightening any of them. Do not over-
tighten the Screws.
Attach the console ground wire to the Right
Handrail (11) with a Silver Ground Screw (27).
Then, attach the Left Handrail (not shown) to the
other side of the Console (25) as described
above. Note: There are no wires on the other
side of the Console.
8. Pull the indicated long wire until the Upright Wire
(28) is extending from the upper end of the Right
Upright (36).
Slide the Right and Left Base Leg Covers (96,
94) onto the Left and Right Uprights (31, 36) and
press them onto the Base (48) as shown. If nec-
essary, pry lightly on the sides of the Base Leg
Covers to fit them over the 3/8" Nuts and Bolts
(not shown).
9. Insert the long wire on the Upright Wire (28) up
through the large holes in the Right Handrail
(11) as shown. Pull the Upright Wire up through
the holes. Next, set the Right Handrail and the
Left Handrail (not shown), with the Console (25),
onto the top of the Right Upright (36) and the
Left Upright (not shown). Make sure that no
wires are pinched. Then, untie and discard the
long wire.
Connect the Upright Wire (28) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Insert the connectors and excess
wire into the Console (25).
