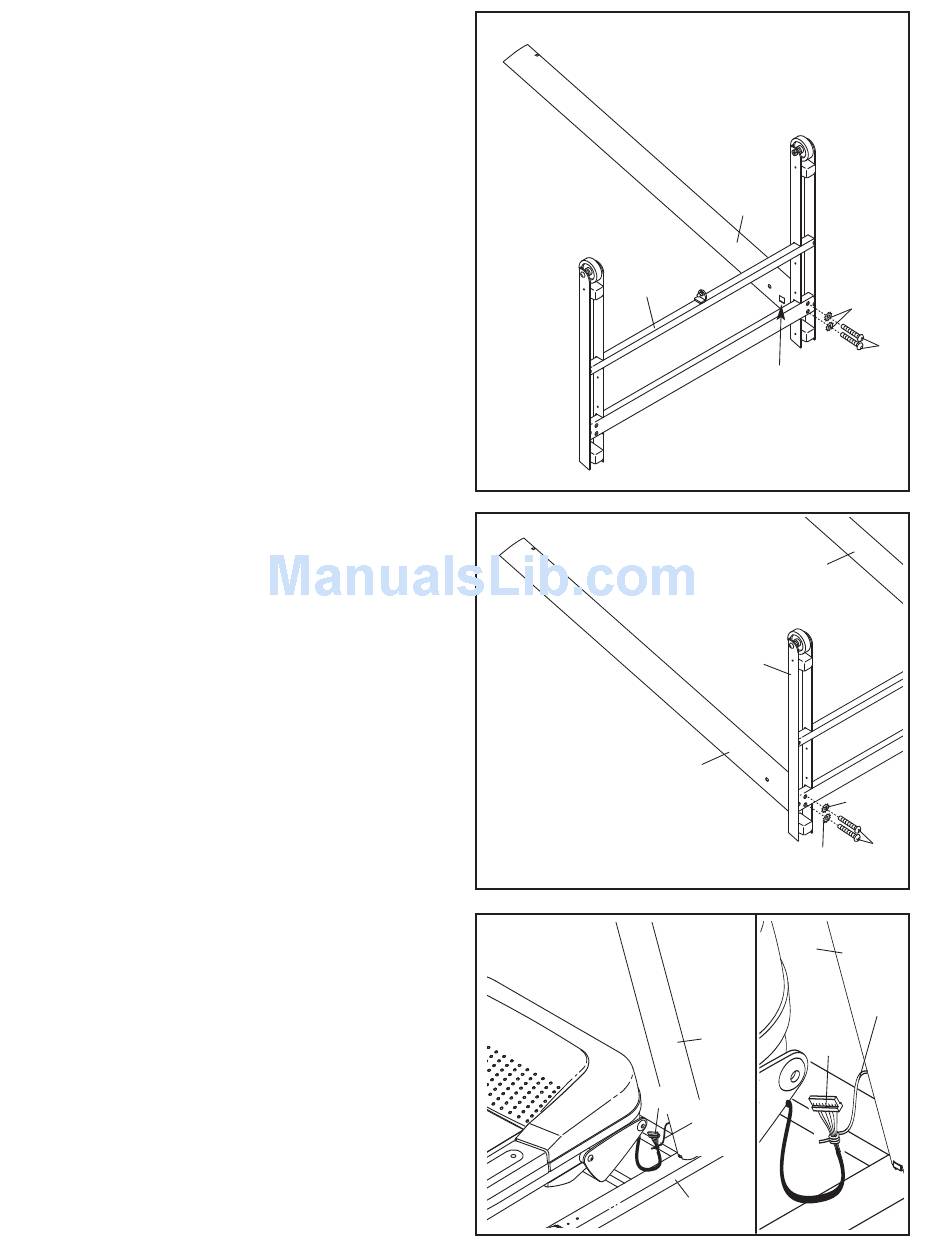

2. Identify the Right Upright (36), which has a
square hole in the location shown.
Orient the Right Upright (36) and the Base (48)
as shown. Attach the Right Upright to the Base
with two Upright Bolts (40) and two Upright Star
Washers (39); do not tighten the Upright
Bolts yet.
3. Orient the Left Upright (31) as shown. Attach the
Left Upright to the Base (48) with two Upright
Bolts (40) and two Upright Star Washers (39);
do not tighten the Upright Bolts yet.
Raise the Uprights (31, 36).
4. Position the Base (48) near the front of the
treadmill as shown.
Locate the long wire in the Right Upright (36).
See the inset drawing. Tie the long wire se-
curely around the end of the Upright Wire (28).
Then, insert the connector into the square hole
in the Right Upright.
