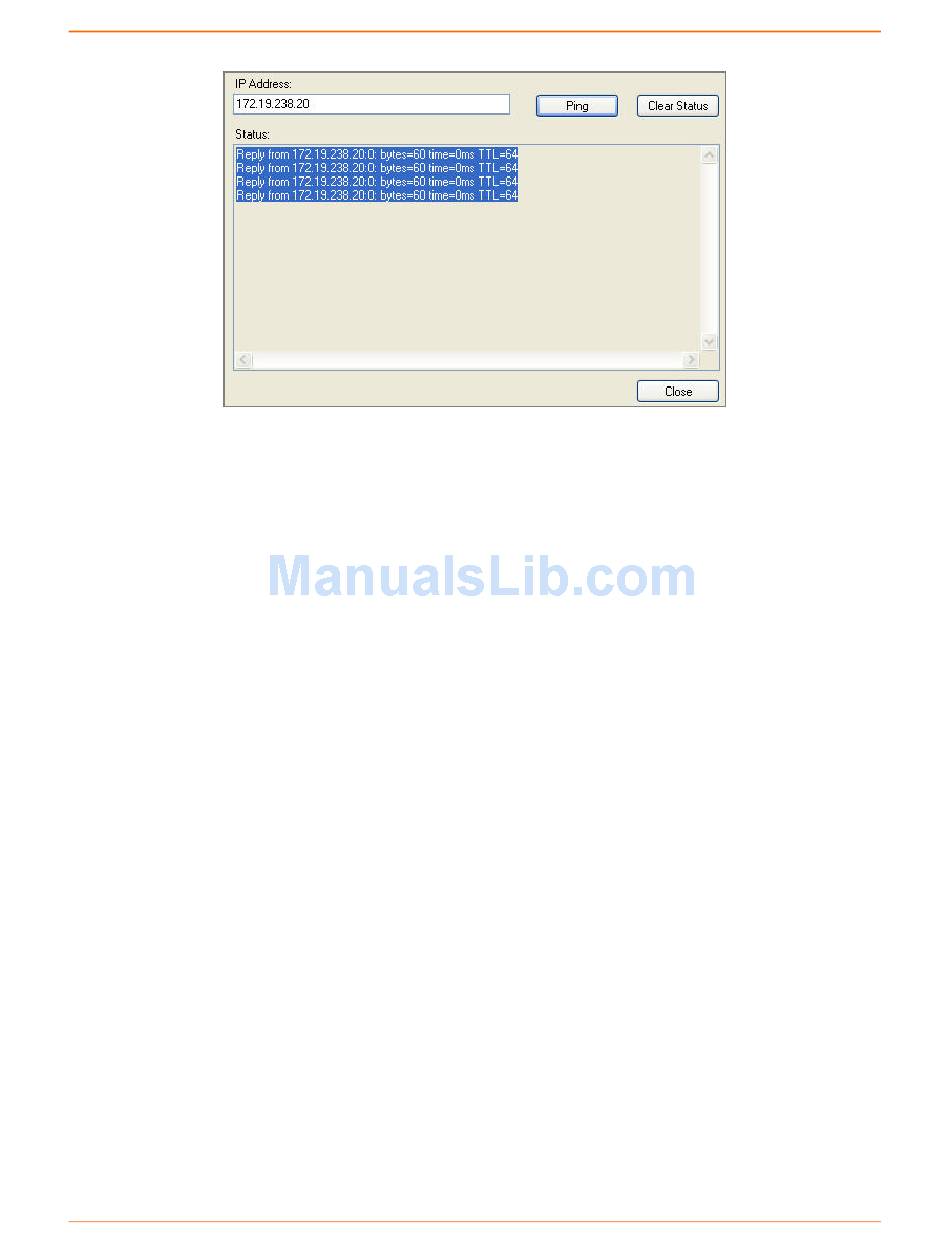

10. Click Clear Status to clear the window to ping the device again.
Note: If you do not receive "Reply" messages, ensure the IP address assigned is valid for
the particular network segment you are working with. For a wireless unit, ensure the
PremierWave is visible on the network created by the laptop or desktop PC's wireless
card.
11. Click Close.

Configure Your PremierWave Device

From DeviceInstaller, it is easy to access the CLI, via the Telnet Configuration tab, or start the
Lantronix browser-based tool, Web Manager, to configure the PremierWave. For detailed
information on configuration, see the PremierWave EN Embedded System on Module User Guide
and PremierWave EN Embedded System on Module Command Reference if you are using the
PremierWave EN model, or the PremierWave SE1000 Embedded System on Module User Guide
and PremierWave SE1000 Embedded System on Module Command Reference if using the
PremieWave SE 1000 system on module.

For the CLI Access via Telnet Configuration

1. In DeviceInstaller, select the unit and then the Telnet Configuration tab.
2. Press the Connect icon. The Lantronix CLI shell appears.
3. If line authentication for CLI is enabled, enter your user name and password. The default user
name is admin and the default password is PASS.
4. Use the CLI commands to configure the device.
5. Commit any changes with the write command.

For the Web Manager Access

1. In DeviceInstaller, select the unit and then the Web Configuration tab.
2. Press the Go icon. The Lantronix Web Manager login window appears.
PremierWave® Evaluation Board Quick Start
Configure Your PremierWave Device
11
